Lincoln Aviator 2020-2024 Service Manual / Body and Paint / Body and Paint / Glass, Frames and Mechanisms / General Procedures - Heated Window Grid Wire Repair

Lincoln Aviator: Glass, Frames and Mechanisms / General Procedures - Heated Window Grid Wire Repair

Materials

Name Specification
Motorcraft® Ultra-Clear Spray Glass Cleaner
ZC-23		 ESR-M14P5-A

Motorcraft® Rear Window Defroster Repair
PM-11		 WSB-M4J58-B

Motorcraft® Lacquer Touch-Up Paint
PMPC-19500-XXXXA, PMPM-19500-XXXXG, PMPP-19500-XXXXA		 ESR-M2P100-C


Inspection

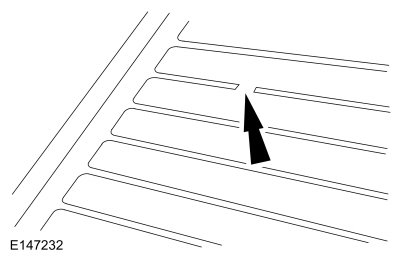

  1. Using a bright lamp in the vehicle, inspect the grid wire from the exterior. A broken grid wire appears as a brown spot.
  1. Run the engine at idle. Activate the rear window defrost switch. The indicator light should come on.
  1. Working in the vehicle with a voltmeter, contact the broad red-brown stripes of the rear glass window (positive lead to B+ side and the negative lead to ground side). The meter should read 10-13 volts. A lower voltage reading indicates a loose ground connection.
  1. Contact a good ground point with the negative lead of the meter. The voltage reading should not change.
  1. With the negative lead of the meter grounded, touch each grid line of the heated rear window glass at its midpoint with the positive lead. A reading of approximately 6 volts indicates the line is good. A reading of 0 volt indicates the line is broken between the midpoint and the B+ side of the grid line. A reading of 12 volts indicates the circuit is broken between the midpoint of the grid line and ground.
  1. Pinpointing the exact position of the break can be accomplished (if the voltmeter reads 0 volt when the midpoint of the grid line is touched with the positive lead of the voltmeter) by moving the positive lead of the voltmeter toward the B+ side of the grid line and touching the grid line until the voltmeter reads 12 volts. If the voltmeter reads 12 volts when the midpoint of the grid line is touched with the positive lead of the voltmeter, simply move the positive lead of the voltmeter toward the ground connection of the grid line and touch the grid line until the voltmeter reads 0 volt.

Repair

  1. NOTE: The antenna and heated window grid line material is not embedded into the glass, but is baked to the glass surface and consequently can be scraped off. An undamaged grid line has small ridges that project above the surface of the glass and can easily be felt when running a fingernail across them. Antenna and heated window grid lines that have been razor bladed will feel smooth when a fingernail is dragged across the affected area. Inoperative heated window grid lines may appear to the eye to be undamaged due to residue remaining on the glass and require diagnosis with a voltmeter or 12V test lamp.

    Bring the vehicle up to a room temperature of at least 16°C (60.8°F) or above.

  1. NOTICE: Do not use scrapers, sharp instruments or abrasive window cleaners on the interior surface of the rear window glass as this may cause damage to the antenna and heated window grid lines.

    Clean the entire antenna and heated window grid line repair area with glass cleaner and 0000 steel wool to remove all dirt, wax, grease, oil or other foreign material.
    Material: Motorcraft® Ultra-Clear Spray Glass Cleaner / ZC-23 (ESR-M14P5-A)
  1. Mark the location of the antenna or heated window grid break on the exterior of the rear window glass.

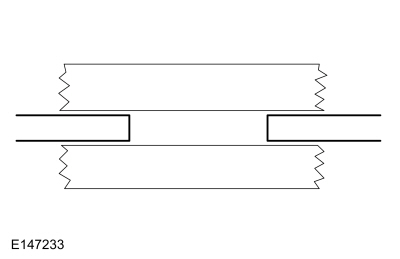

  1. Using a polypropylene film fine line tape, mask the area directly above and below the antenna or heated window grid break extending the tape 26 mm (1.0236 in) beyond the concern area in both directions. The break area should be at the center of the mask. Polypropylene Film Fine Line Tape (commercially available).

  1. NOTE: If the brown layer is not broken or missing, apply only the silver grid repair compound to the break. If both the brown and silver layers of the antenna or heated window grid are broken or missing, apply a coating of the lacquer touch-up paint across the break in the grid line prior to applying the rear window defroster repair compound. Do not overlap the silver grid line with the paint. Several applications may be necessary to achieve a color match.

    NOTE: Allow at least 5 minutes of drying time between applications for the touch-up paint or the silver repair coating. Applying fewer coats or not allowing adequate drying time between coats produces repaired resistance that is greater than Original Equipment Manufacturer (OEM) resistance, resulting in poor defrost performance and excessive localized heating.

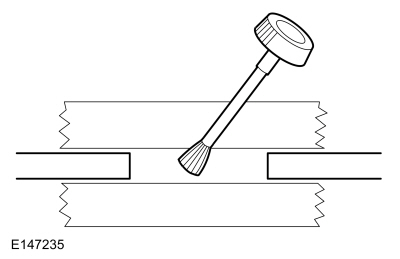

    Apply the repair coating to the antenna or heated window grid break area in several smooth, continuous strokes. Extend the silver repair coating at least 6.35 mm (0.25 in) on both sides of the break area. Apply a minimum of 6 applications of the grid repair compound. Polypropylene Film Fine Line Tape (commercially available)
    Material: Motorcraft® Rear Window Defroster Repair / PM-11 (WSB-M4J58-B)
    Material: Motorcraft® Lacquer Touch-Up Paint / PMPC-19500-XXXXA, PMPM-19500-XXXXG, PMPP-19500-XXXXA (ESR-M2P100-C)

  1. NOTE: The repair coating air dries in approximately one minute and can be energized after 5 minutes. Optimum adhesion occurs after approximately 24 hours.

    Allow the repair area to dry completely and remove the mask.

  1. NOTICE: Be careful not to damage the antenna or heated window grid line with the razor blade. If this occurs, additional repair may be necessary.

    Remove any excess repair compound above or below the antenna or heated window grid line with a razor blade.

  1. NOTE: The interior side of the antenna or heated grid lines are not painted, but due to the silver tarnishing tend to change the grid to a gold or brown color. The repair area will be bright silver and also tarnish over time to match the rest of the antenna or heated window grid.

    Test the system for normal operation.

    General Procedures - Fixed Glass

    Special Tool(s) / General Equipment Power Caulk Gun Power Fixed Glass Removal Tool Cold Knife Knife Vacuum Cleaner Materials Name Specification Sika® SikaTack® MACH 60 / Sika® SikaTack® MACH 30 / Dow® BETASEAL™ Express -  Sika Tack ASAP Urethane Adhesive -  Motorcraft® Ultra-Clear Spray Glass CleanerZC-23 ESR-M14P5-A  Sika Tack® MOVE...

    General Procedures - Lead Terminal Repair

    Materials Name Specification Motorcraft® Ultra-Clear Spray Glass CleanerZC-23 ESR-M14P5-A  Repair Bring the vehicle up to at least the specified room temperature or above...
