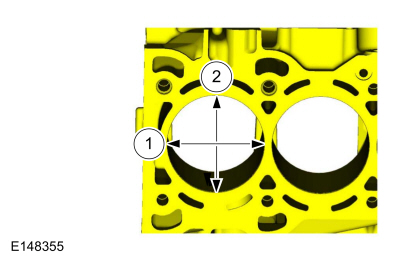

Lincoln Aviator: Engine System - General Information / General Procedures - Piston Selection

General Procedures - Piston Ring End Gap

Special Tool(s) / General Equipment Feeler Gauge Check NOTE: Refer to the appropriate Section 303-01 for the specification. NOTE: Use care when fitting piston rings to avoid possible damage to the piston ring or the cylinder bore...

General Procedures - RTV Sealing Surface Cleaning and Preparation

Special Tool(s) / General Equipment Plastic Scraper Nylon Bristle Disk Plastic Razor Blade Lint-Free Towel Isopropyl Alcohol – 90 Percent Minimum Materials Name Specification Motorcraft® Silicone Gasket RemoverZC-30-A -  Motorcraft® Metal Surface Prep WipesZC-31-B -  Motorcraft® Engine Shampoo and DegreaserZC-20 ESR-M14P3-A  Motorcraft® Metal Brake Parts CleanerPM-4-A, PM-4-B -  Cleaning NOTICE: This procedure is only to be used on the sealing surfaces of metal components...

Other information:

Lincoln Aviator 2020-2026 Service Manual: Diagnosis and Testing - Fuel Control

Diagnostic Trouble Code (DTC) Chart Diagnostics in this manual assume a certain skill level and knowledge of Ford-specific diagnostic practices.REFER to: Diagnostic Methods (100-00 General Information, Description and Operation).   Diagnostic Trouble Code Chart Module   DTC Description Action   PCM P0087:00 Fuel Rail/System Pressure - Too Low (Bank 1): No Sub Type Information   GO to Pinpoint Test DD   PCM P0088:00 Fuel Rail/System Pressure - Too High (Bank 1): No Sub Type Information   GO to Pinpoint Test DD   PCM P0181:00 Fuel Temperature Sensor A Circuit Range/Performance: No Sub Type Information   GO to Pinpoint Test DD   PCM P0182:00 Fuel Temperature Sensor A Circuit Low: No Sub Type Information   GO to Pinpoint Test DD   PCM P0183:00 Fuel Temperature Sensor A Circuit High: No Sub Type Information   GO to Pinpoint Test DD   PCM P018B:00 Fuel Pressure Sensor B Circuit Range/Performance: No Sub Type Information   GO to Pinpoint Test DD   PCM P018C:00 Fuel Pressure Sensor B Circuit Low: No Sub Type Information   GO to Pinpoint Test DD   PCM P018D:00 Fuel Pressure Sensor B Circuit High: No Sub Type Information   GO to Pinpoint Test DD   PCM P0192:00 Fuel Rail Pressure Sensor Circuit Low (Bank 1): No Sub Type Information   GO to Pinpoint Test DD   PCM P0193:00 Fuel Rail Pressure Sensor Circuit High (Bank 1): No Sub Type Information   GO to Pinpoint Test DD Global Customer Symptom Code (GCSC) Chart Diagnostics in this manual assume a certain skill level and knowledge of Ford-specific diagnostic practices...

Lincoln Aviator 2020-2026 Service Manual: Diagnosis and Testing - Parking Aid

Diagnostic Trouble Code (DTC) Chart Diagnostics in this manual assume a certain skill level and knowledge of Ford-specific diagnostic practices. REFER to: Diagnostic Methods (100-00 General Information, Description and Operation).   Diagnostic Trouble Code Chart Module   DTC Description Action   IPMB B1303:13 Park Assist Switch:Circuit Open   GO to Pinpoint Test D   IPMB B1303:9E Park Assist Switch:Stuck On   GO to Pinpoint Test D   IPMB B1B36:08 Right Front Outer Sensor:Bus Signal/Message Failure   GO to Pinpoint Test I   IPMB B1B36:96 Right Front Outer Sensor: Component Internal Failure   GO to Pinpoint Test N   IPMB B1B36:98 Right Front Outer Sensor:Component Or System Over Temperature   GO to Pinpoint Test O   IPMB B1B38:08 Right Front Inner Sensor:Bus Signal/Message Failure   GO to Pinpoint Test J   IPMB B1B38:96 Right Front Inner Sensor: Component Internal Failure   GO to Pinpoint Test N   IPMB B1B38:98 Right Front Inner Sensor:Component Or System Over Temperature   GO to Pinpoint Test O   IPMB B1B40:08 Left Front Outer Sensor:Bus Signal/Message Failure   GO to Pinpoint Test K   IPMB B1B40:96 Left Front Outer Sensor: Component Internal Failure   GO to Pinpoint Test N   IPMB B1B40:98 Left Front Outer Sensor:Component Or System Over Temperature   GO to Pinpoint Test O   IPMB B1B42:08 Left Front Inner Sensor:Bus Signal/Message Failure   GO to Pinpoint Test L   IPMB B1B42:96 Left Front Inner Sensor: Component Internal Failure   GO to Pinpoint Test N   IPMB B1B42:98 Left Front Inner Sensor:Component Or System Over Temperature   GO to Pinpoint Test O   IPMB B1B44:08 Right Rear Outer Sensor:Bus Signal/Message Failure   GO to Pinpoint Test E   IPMB B1B44:96 Right Rear Outer Sensor: Component Internal Failure   GO to Pinpoint Test M   IPMB B1B44:98 Right Rear Outer Sensor:Component Or System Over Temperature   GO to Pinpoint Test P   IPMB B1B46:08 Right Rear Inner Sensor:Bus Signal/Message Failure   GO to Pinpoint Test F   IPMB B1B46:96 Right Rear Inner Sensor: Component Internal Failure   GO to Pinpoint Test M   IPMB B1B46:98 Right Rear Inner Sensor:Component Or System Over Temperature   GO to Pinpoint Test P   IPMB B1B48:08 Left Rear Outer Sensor:Bus Signal/Message Failure   GO to Pinpoint Test G   IPMB B1B48:96 Left Rear Outer Sensor: Component Internal Failure   GO to Pinpoint Test M   IPMB B1B48:98 Left Rear Outer Sensor:Component Or System Over Temperature   GO to Pinpoint Test P   IPMB B1B50:08 Left Rear Inner Sensor:Bus Signal/Message Failure   GO to Pinpoint Test H   IPMB B1B50:96 Left Rear Inner Sensor: Component Internal Failure   GO to Pinpoint Test M   IPMB B1B50:98 Left Rear Inner Sensor:Component Or System Over Temperature   GO to Pinpoint Test P   IPMB B1B57:11 Front Sensors Power Circuit: Circuit Short To Ground   GO to Pinpoint Test B   IPMB B1B58:11 Rear Sensors Power Circuit: Circuit Short To Ground   GO to Pinpoint Test C   IPMB U0428:00 Invalid Data Received From Steering Angle Sensor Module:No Sub Type Information   GO to Pinpoint Test Z   PAM B1303:13 Park Assist Switch:Circuit Open   GO to Pinpoint Test D   PAM B1303:9E Park Assist Switch:Stuck On   GO to Pinpoint Test D   PAM B1B36:08 Right Front Outer Sensor:Bus Signal/Message Failure   GO to Pinpoint Test I   PAM B1B36:1F Right Front Outer Sensor:Circuit Intermittent   GO to Pinpoint Test I   PAM B1B36:31 Right Front Outer Sensor:No Signal   GO to Pinpoint Test I   PAM B1B36:96 Right Front Outer Sensor: Component Internal Failure   GO to Pinpoint Test N   PAM B1B36:98 Right Front Outer Sensor:Component Or System Over Temperature   GO to Pinpoint Test O   PAM B1B38:08 Right Front Inner Sensor:Bus Signal/Message Failure   GO to Pinpoint Test J   PAM B1B38:1F Right Front Inner Sensor:Circuit Intermittent   GO to Pinpoint Test J   PAM B1B38:31 Right Front Inner Sensor:No Signal   GO to Pinpoint Test J   PAM B1B38:96 Right Front Inner Sensor: Component Internal Failure   GO to Pinpoint Test N   PAM B1B38:98 Right Front Inner Sensor:Component Or System Over Temperature   GO to Pinpoint Test O   PAM B1B40:08 Left Front Outer Sensor:Bus Signal/Message Failure   GO to Pinpoint Test K   PAM B1B40:1F Left Front Outer Sensor:Circuit Intermittent   GO to Pinpoint Test K   PAM B1B40:31 Left Front Outer Sensor:No Signal   GO to Pinpoint Test K   PAM B1B40:96 Left Front Outer Sensor: Component Internal Failure   GO to Pinpoint Test N   PAM B1B40:98 Left Front Outer Sensor:Component Or System Over Temperature   GO to Pinpoint Test O   PAM B1B42:08 Left Front Inner Sensor:Bus Signal/Message Failure   GO to Pinpoint Test L   PAM B1B42:1F Left Front Inner Sensor:Circuit Intermittent   GO to Pinpoint Test L   PAM B1B42:31 Left Front Inner Sensor:No Signal   GO to Pinpoint Test L   PAM B1B42:96 Left Front Inner Sensor: Component Internal Failure   GO to Pinpoint Test N   PAM B1B42:98 Left Front Inner Sensor:Component Or System Over Temperature   GO to Pinpoint Test O   PAM B1B44:08 Right Rear Outer Sensor:Bus Signal/Message Failure   GO to Pinpoint Test E   PAM B1B44:1F Right Rear Outer Sensor:Circuit Intermittent   GO to Pinpoint Test E   PAM B1B44:31 Right Rear Outer Sensor:No Signal   GO to Pinpoint Test E   PAM B1B44:96 Right Rear Outer Sensor: Component Internal Failure   GO to Pinpoint Test M   PAM B1B44:98 Right Rear Outer Sensor:Component Or System Over Temperature   GO to Pinpoint Test P   PAM B1B46:08 Right Rear Inner Sensor:Bus Signal/Message Failure   GO to Pinpoint Test F   PAM B1B46:1F Right Rear Inner Sensor:Circuit Intermittent   GO to Pinpoint Test F   PAM B1B46:31 Right Rear Inner Sensor:No Signal   GO to Pinpoint Test F   PAM B1B46:96 Right Rear Inner Sensor: Component Internal Failure   GO to Pinpoint Test M   PAM B1B46:98 Right Rear Inner Sensor:Component Or System Over Temperature   GO to Pinpoint Test P   PAM B1B48:08 Left Rear Outer Sensor:Bus Signal/Message Failure   GO to Pinpoint Test G   PAM B1B48:1F Left Rear Outer Sensor:Circuit Intermittent   GO to Pinpoint Test G   PAM B1B48:31 Left Rear Outer Sensor:No Signal   GO to Pinpoint Test G   PAM B1B48:96 Left Rear Outer Sensor: Component Internal Failure   GO to Pinpoint Test M   PAM B1B48:98 Left Rear Outer Sensor:Component Or System Over Temperature   GO to Pinpoint Test P   PAM B1B50:08 Left Rear Inner Sensor:Bus Signal/Message Failure   GO to Pinpoint Test H   PAM B1B50:1F Left Rear Inner Sensor:Circuit Intermittent   GO to Pinpoint Test H   PAM B1B50:31 Left Rear Inner Sensor:No Signal   GO to Pinpoint Test H   PAM B1B50:96 Left Rear Inner Sensor: Component Internal Failure   GO to Pinpoint Test M   PAM B1B50:98 Left Rear Inner Sensor:Component Or System Over Temperature   GO to Pinpoint Test P   PAM B1B57:11 Front Sensors Power Circuit: Circuit Short To Ground   GO to Pinpoint Test B   PAM B1B58:11 Rear Sensors Power Circuit: Circuit Short To Ground   GO to Pinpoint Test C   PAM U0100:00 Lost Communication With ECM/PCM "A": No Sub Type Information   GO to Pinpoint Test R   PAM U0121:00 Lost Communication With Anti-Lock Brake System (ABS) Control Module: No Sub Type Information   GO to Pinpoint Test S   PAM U0131:00 Lost Communication With Power Steering Control Module: No Sub-Type Information   GO to Pinpoint Test T   PAM U0138:00 Lost Communication with All Terrain Control Module:No Sub Type Information   GO to Pinpoint Test U   PAM U0140:00 Lost Communication With Body Control Module: No Sub Type Information   GO to Pinpoint Test V   PAM U0146:00 Lost Communication With Gateway "A": No Sub Type Information   GO to Pinpoint Test W   PAM U0155:00 Lost Communication With Instrument Panel Cluster (IPC) Control Module: No Sub Type Information   GO to Pinpoint Test X   PAM U0164:00 Lost Communication With HVAC Control Module: No Sub Type Information   GO to Pinpoint Test Y   PAM U0212:00 Lost Communication With Steering Column Control Module: No Sub Type Information   GO to Pinpoint Test AB   PAM U0252:00 Lost Communication With Lighting Control Module- Rear "B": No Sub Type Information   GO to Pinpoint Test AC   PAM U0293:00 Lost Communication with Hybrid/EV Powertrain Control Module:No Sub Type Information   GO to Pinpoint Test R   PAM U0300:57 Internal Control Module Software Incompatibility:Invalid/Incompatible Software Component   GO to Pinpoint Test AG   PAM U0401:00 Invalid Data Received from ECM/PCM A:No Sub Type Information   GO to Pinpoint Test R   PAM U0415:00 Invalid Data Received from Anti-Lock Brake System (ABS) Control Module "A":No Sub Type Information   GO to Pinpoint Test S   PAM U0420:00 Invalid Data Received from Power Steering Control Module "A":No Sub Type Information   GO to Pinpoint Test T   PAM U0422:00 Invalid Data Received From Body Control Module:No Sub Type Information   GO to Pinpoint Test V   PAM U0423:82 Invalid Data Received from Instrument Panel Cluster Control Module:Alive/Sequence Counter Incorrect/Not Updated   GO to Pinpoint Test X   PAM U0424:00 Invalid Data Received From HVAC Control Module:No Sub Type Information   GO to Pinpoint Test Y   PAM U0424:82 Invalid Data Received From HVAC Control Module:Alive/Sequence Counter Incorrect/Not Updated   GO to Pinpoint Test Y   PAM U0485:82 Invalid Data Received From Radio:Alive/Sequence Counter Incorrect/Not Updated   GO to Pinpoint Test AA   PAM U0553:82 Invalid Data Received From Lighting Control Module-Rear "B":Alive/Sequence Counter Incorrect/Not Updated   GO to Pinpoint Test AC   PAM U0554:00 Invalid Data Received From Accessory Protocol Interface Module:No Sub Type Information   GO to Pinpoint Test AD   PAM U0554:82 Invalid Data Received From Accessory Protocol Interface Module:Alive/Sequence Counter Incorrect/Not Updated   GO to Pinpoint Test AD   PAM U0594:00 Invalid Data Received From Hybrid/EV Powertrain Control Module:No Sub Type Information   GO to Pinpoint Test R   PAM U1000:00 Solid State Driver Protection Active -Driver Disabled:No Sub Type Information   GO to Pinpoint Test AE   PAM U2024:41 Control Module Cal-Config Data:General Checksum Failure   GO to Pinpoint Test AF   PAM U2100:00 Initial Configuration Not Complete:No Sub Type Information   GO to Pinpoint Test AF   PAM U2101:00 Control Module Configuration Incompatible:No Sub Type Information   GO to Pinpoint Test AF   PAM U3000:44 Control Module:Data Memory Failure   GO to Pinpoint Test AG   PAM U3000:45 Control Module:Program Memory Failure   GO to Pinpoint Test AG   PAM U3000:46 Control Module:Calibration/Parameter Memory Failure   GO to Pinpoint Test AG   PAM U3000:49 Control Module:Internal Electronic Failure   GO to Pinpoint Test AG Symptom Chart(s)   Symptom Chart: Parking Aid Condition Possible Sources Actions A module does not communicate with the diagnostic scan tool Fuse Wiring, terminals or connectors PAM IPMB   REFER to: Communications Network (418-00 Module Communications Network, Diagnosis and Testing)...
