Lincoln Aviator: Information Displays / Information Messages

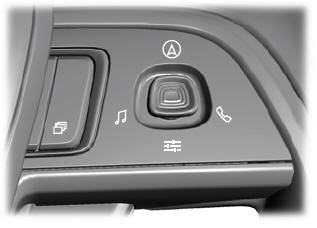

Move the selector switch to the
right to acknowledge and remove
some messages from the
information display. Other messages will be
removed automatically after a short time.
Certain messages need to be confirmed
before you can access the menus.
Active Park
Adaptive Cruise Control
Adaptive Headlamps

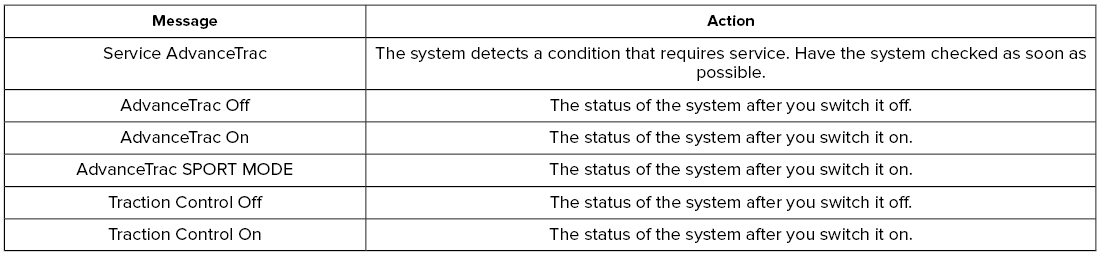

AdvanceTrac™ and Traction Control
Alarm

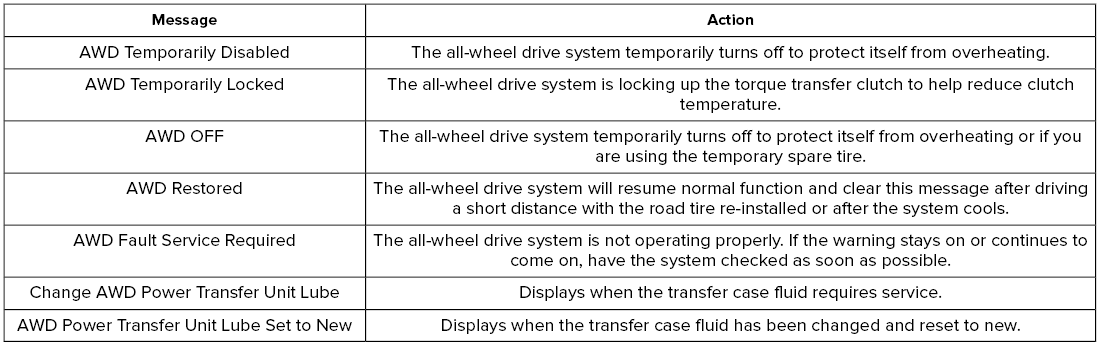

AWD

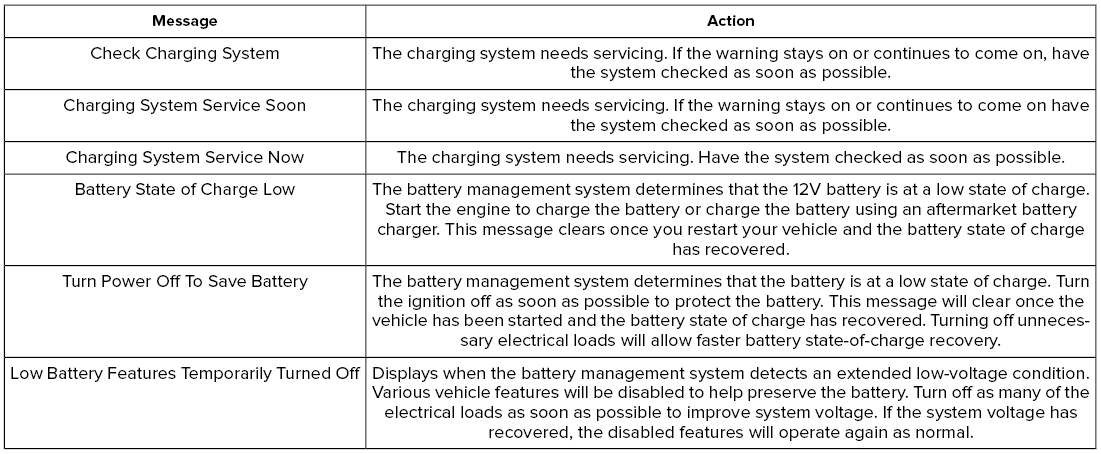

Battery and Charging System (12 volt)
Battery and Charging System (High Voltage)
Blind Spot Information and Cross Traffic Alert System

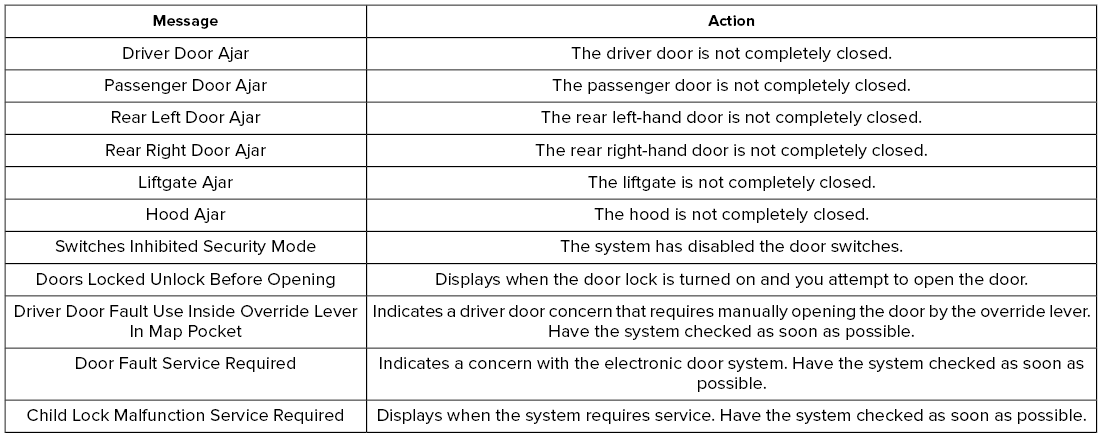

Doors and Locks
Driver Alert

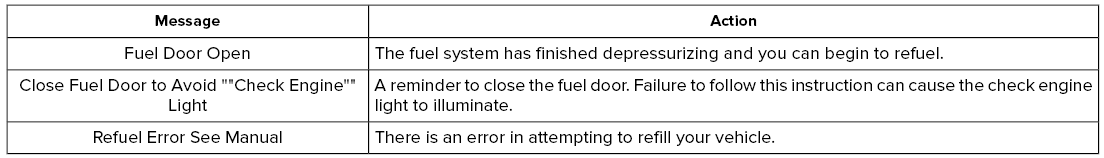

Fuel

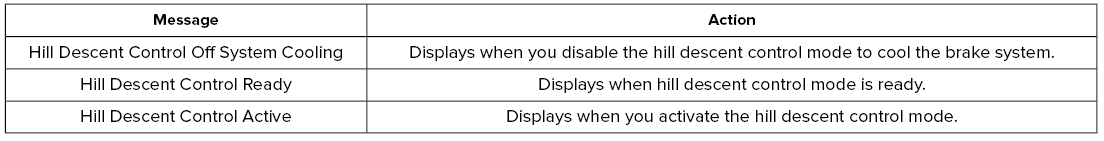

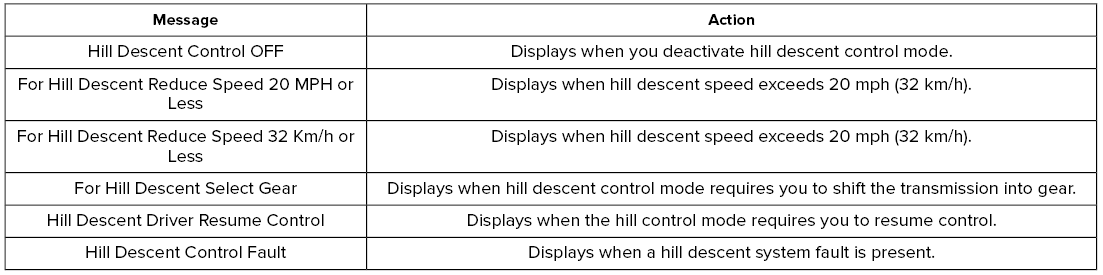

Hill Descent Control
Hill Start Assist

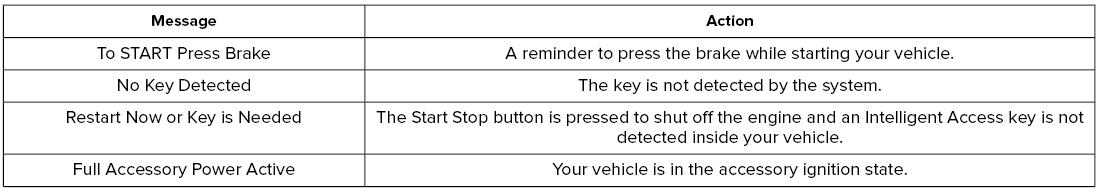

Keys and Intelligent Access

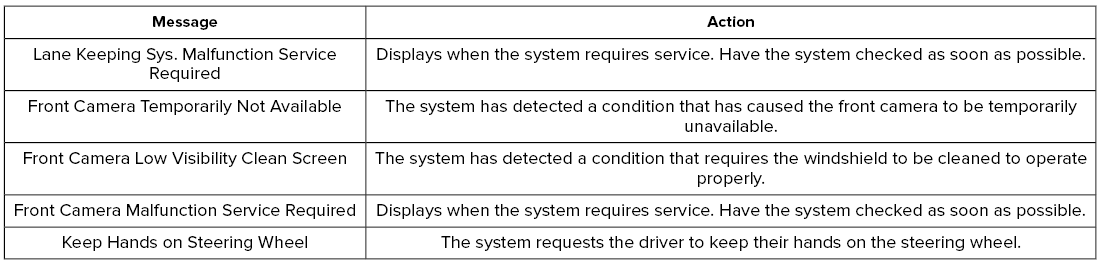

Lane Keeping System

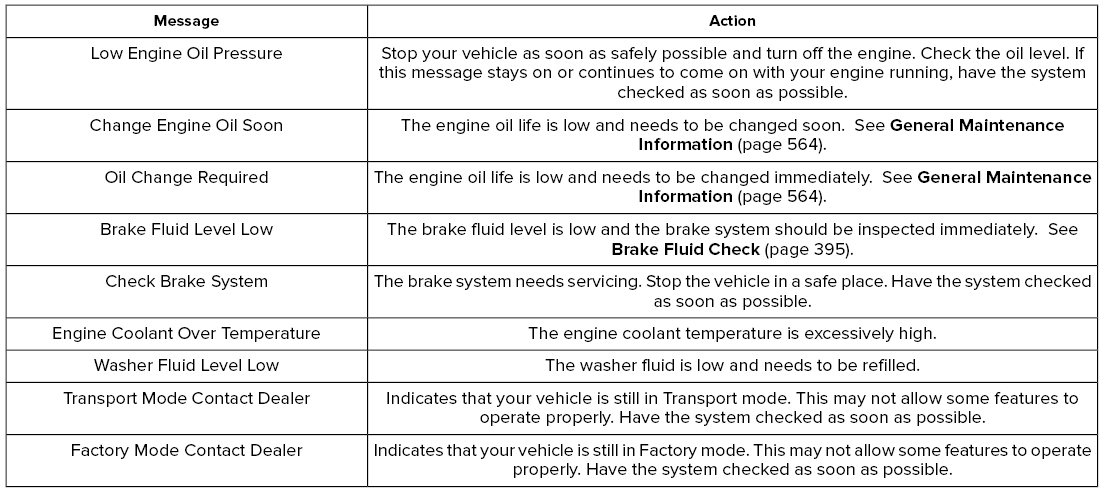

Maintenance

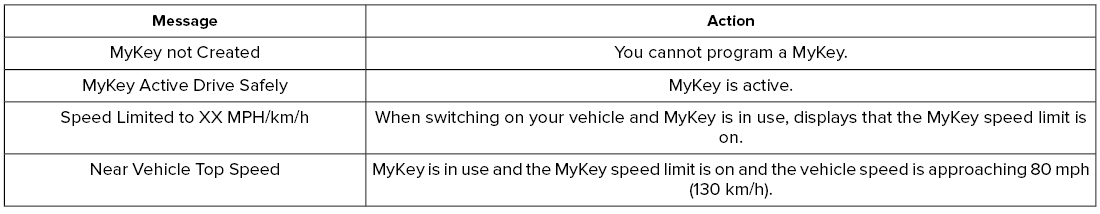

MyKey

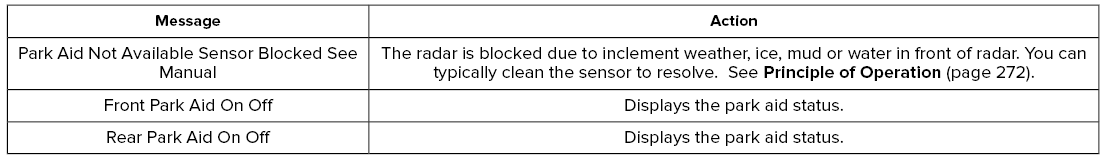

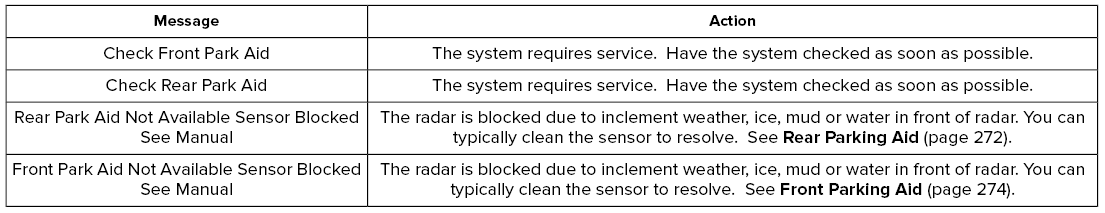

Park Aid

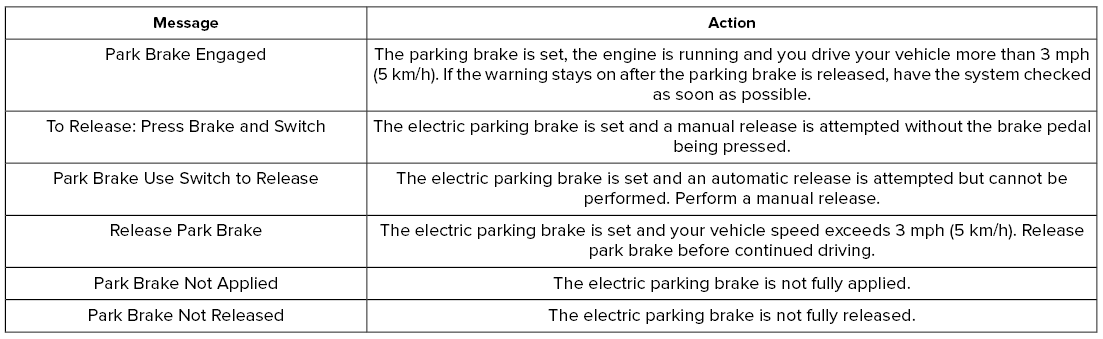

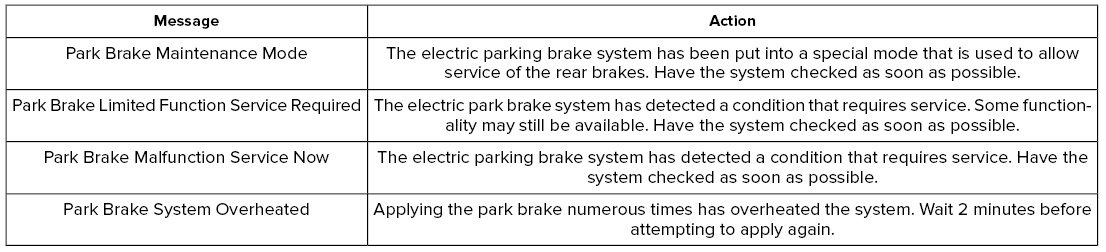

Park Brake

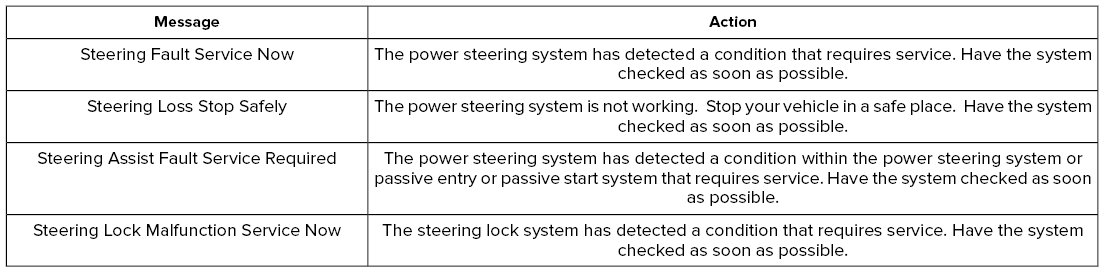

Power Steering

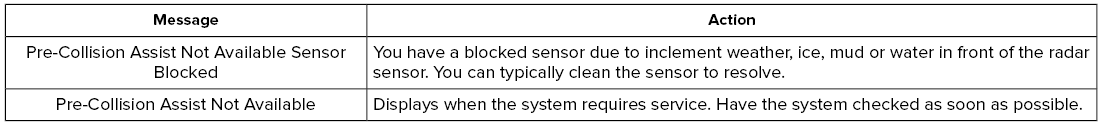

Pre-Collision Assist
Remote Start
Seats

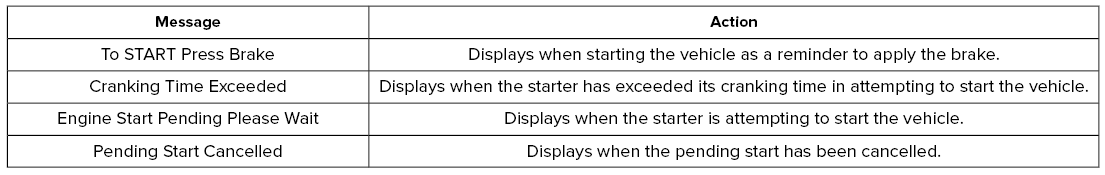

Starting System

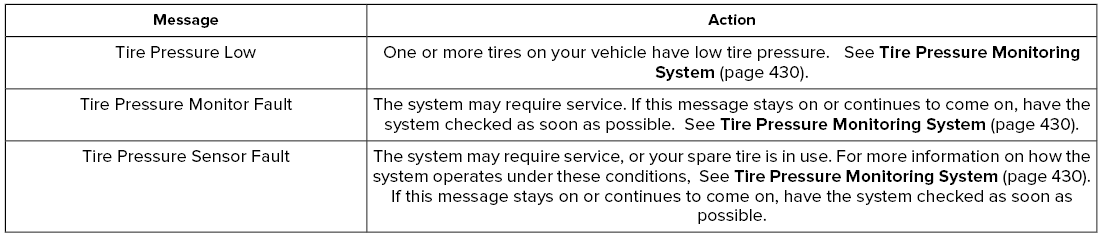

Tire Pressure Monitoring System

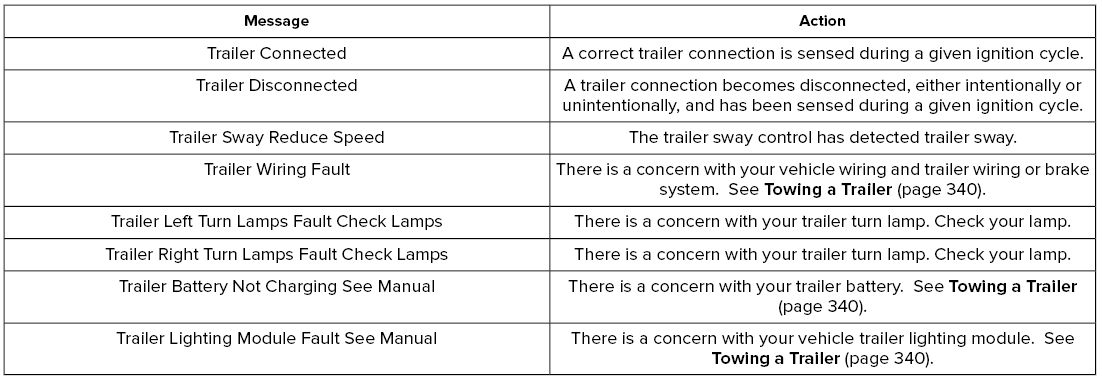

Trailer
Transmission
Note: On Demand information appears on the right-hand side of your
instrument cluster in single gauge view and in the center of your
instrument cluster in dual gauge view when certain drive modes are switched on...
This is a visual system that shows information
in your field of view as you drive. The
information comes from various vehicle
systems and includes vehicle speed, speed
limit, navigation, and advanced driver
assistance systems (ADAS), such as adaptive
cruise control (ACC) and the lane keeping
system...
Other information:
Diagnostic Trouble Code (DTC) Chart
Diagnostics in this manual assume a certain skill level and knowledge of Ford-specific diagnostic practices.REFER to: Diagnostic Methods (100-00 General Information, Description and Operation).
Diagnostic Trouble Code Chart
Module
DTC
Description
Action
PCM
P0001:00
Fuel Volume Regulator Control Circuit/Open: No Sub Type Information
GO to Pinpoint Test HP
PCM
P0003:00
Fuel Volume Regulator Control Circuit Low: No Sub Type Information
GO to Pinpoint Test HP
PCM
P0004:00
Fuel Volume Regulator Control Circuit High: No Sub Type Information
GO to Pinpoint Test HP
PCM
P0087:00
Fuel Rail/System Pressure - Too Low (Bank 1): No Sub Type Information
GO to Pinpoint Test HP
PCM
P0088:00
Fuel Rail/System Pressure - Too High (Bank 1): No Sub Type Information
GO to Pinpoint Test HP
PCM
P00C6:00
Fuel Rail Pressure Too Low - Engine Cranking (Bank 1): No Sub Type Information
GO to Pinpoint Test HP
PCM
P053F:00
Cold Start Fuel Pressure Performance Bank 1: No Sub Type Information
GO to Pinpoint Test HP
Global Customer Symptom Code (GCSC) Chart
Diagnostics in this manual assume a certain skill level and knowledge of Ford-specific diagnostic practices...
DTC Chart: DDM
Diagnostics in this manual assume a certain skill level and knowledge of Ford-specific diagnostic practices. REFER to: Diagnostic Methods (100-00 General Information, Description and Operation).
DTC
Description
Action
B11F6:11
Driver Folding Mirror Motor: Circuit Short To Ground
GO to Pinpoint Test E
B11F6:15
Driver Folding Mirror Motor: Circuit Short To Battery or Open
GO to Pinpoint Test E
B1163:11
Left Mirror Heater Output: Circuit Short To Ground
GO to Pinpoint Test D
B1163:15
Left Mirror Heater Output: Circuit Short To Battery Or Open
GO to Pinpoint Test D
B1C09:11
Driver Left/Right Mirror Motor: Circuit Short To Ground
GO to Pinpoint Test B
B1C09:15
Driver Left/Right Mirror Motor: Circuit Short To Battery Or Open
GO to Pinpoint Test B
B1C10:11
Driver Up/Down Mirror Motor: Circuit Short To Ground
GO to Pinpoint Test C
B1C10:15
Driver Up/Down Mirror Motor: Circuit Short To Battery Or Open
GO to Pinpoint Test C
B1C13:11
Driver Up/Down Mirror Motor Feedback: Circuit Short To Ground
GO to Pinpoint Test C
B1C13:15
Driver Up/Down Mirror Motor Feedback: Circuit Short To Battery Or Open
GO to Pinpoint Test C
B1C14:11
Driver Left/Right Mirror Motor Feedback: Circuit Short To Ground
GO to Pinpoint Test C
B1C14:15
Driver Left/Right Mirror Motor Feedback: Circuit Short To Battery Or Open
GO to Pinpoint Test C
C1B15:11
Sensor Supply Voltage B: Circuit Short To Ground
GO to Pinpoint Test C
C1B15:15
Sensor Supply Voltage B: Circuit Short To Battery or Open
GO to Pinpoint Test C
All other DDM Diagnostic Trouble Codes (DTCs)
-
REFER to: Locks, Latches and Entry Systems (501-14 Handles, Locks, Latches and Entry Systems, Diagnosis and Testing)...
