Lincoln Aviator: Engine - 3.0L EcoBoost / Installation - Engine

Special Tool(s) / General Equipment

303-1246
Engine Spreader Bar
TKIT-2006UF-FLM
TKIT-2006UF-ROW
303-1634
Lift Eyes (2)
TKIT-2014D-ROW3
TKIT-2014D-FL_ROW
Adjustable Mounting Arm
Wooden Block

Materials

Name Specification
Motorcraft® Premium Long-Life Grease
XG-1-E1
ESA-M1C75-B

Motorcraft® MERCON® ULV Automatic Transmission Fluid
XT-12-QULV
WSS-M2C949-A,
MERCON® ULV


NOTICE: The turbocharger compressor vanes can be damaged by even the smallest particles. When removing any turbocharger or engine air intake system component, ensure that no debris enters the system. Failure to do so may result in damage to the turbocharger.

LHD AWD/LHD RWD

  1. Inspect the turbocharger or engine air intake system components and clean, if necessary.

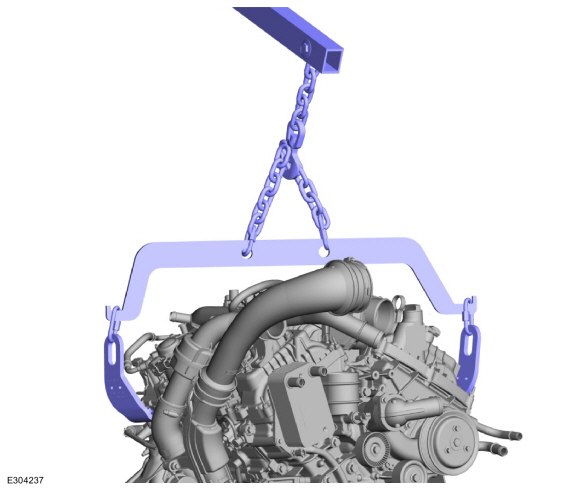

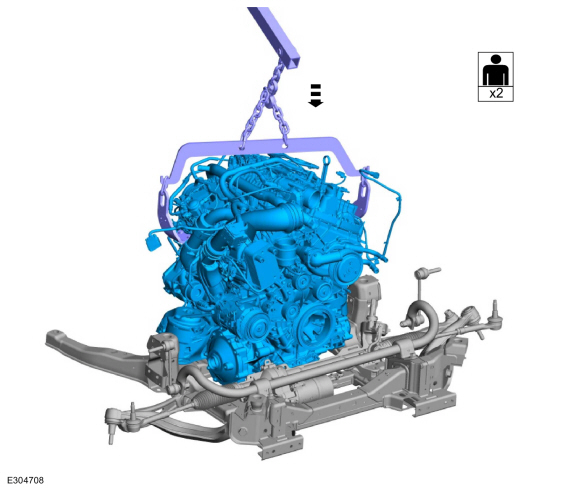

  1. With the aid of an assistant and using the floor crane and chain, install the engine on the subframe.

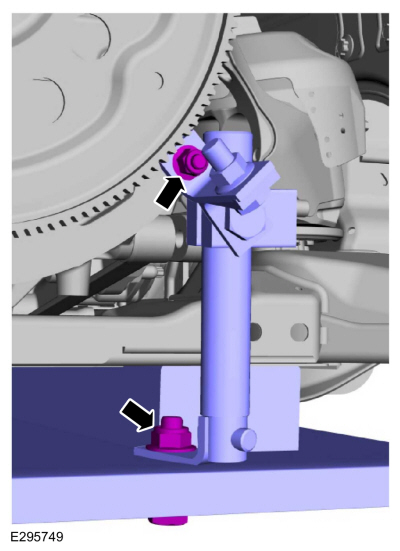

  1. Install and adjust and tighten the adjustable mounting arm bolts.
    Use the General Equipment: Adjustable Mounting Arm
  1. Remove the floor crane and chain.

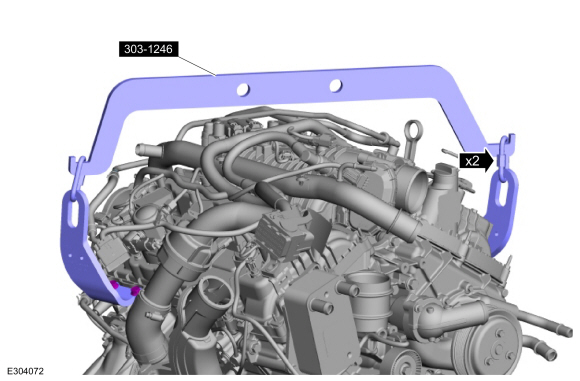

  1. Remove the spreader bar and quick links.
    Remove Special Service Tool: 303-1246  Engine Spreader Bar.

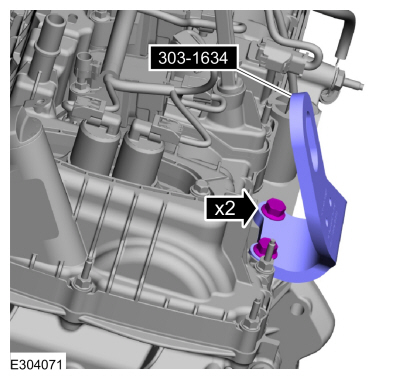

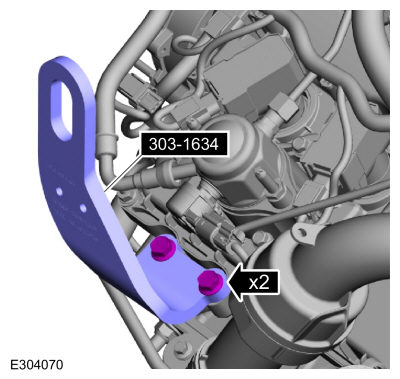

  1. Remove Special Service Tool: 303-1634  Lift Eyes (2).
  1. Remove Special Service Tool: 303-1634  Lift Eyes (2).

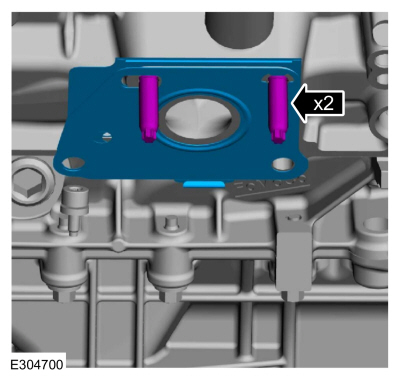

    • If removed, install new TC mounting studs.
      Torque: 102 lb.in (11.5 Nm)
    • Install a new TC gasket.

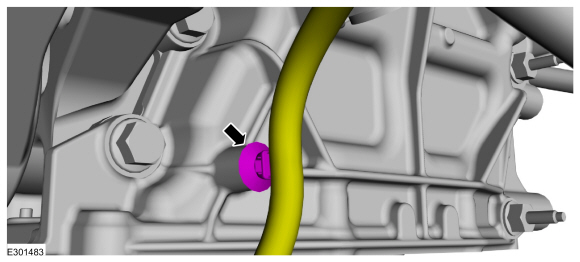

  1. Install a new TC oil return tube-to-engine block gasket.

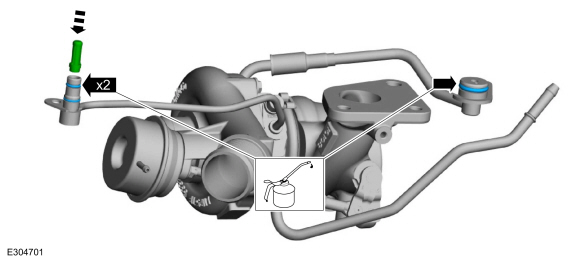

    1. Install new TC oil supply tube O-ring seals and a new TC oil supply tube oil filter. Lubricate the new TC oil supply tube O-ring seals with clean engine oil.
    1. Install a new TC coolant supply tube O-ring seal. Lubricate the new TC coolant supply tube O-ring seal with clean engine coolant.
    1. NOTE: Install the coolant supply tube and the oil supply tube to the engine block while installing the TC.

      Install the TC and loosely install the new fasteners.

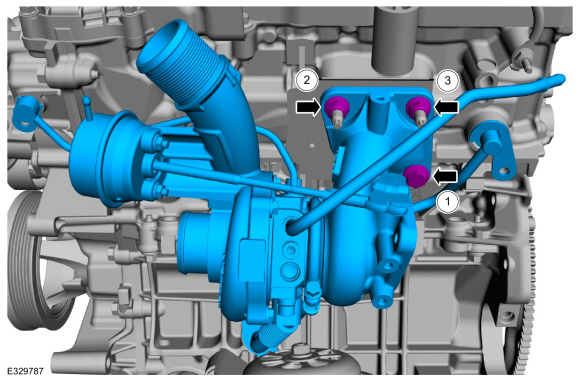

    1. Tighten the fasteners in sequence.
      Torque:
         Fastener 1:   44 lb.ft (60 Nm)
         Fastener 2:   44 lb.ft (60 Nm)
         Fastener 3:   27 lb.ft (37 Nm)
         Re-tighten fastener 1:   44 lb.ft (60 Nm)
         Re-tighten fastener 2:   44 lb.ft (60 Nm)
         Re-tighten fastener 3:   27 lb.ft (37 Nm)
    • Install the TC oil supply tube bolt.
      Torque: 18 lb.ft (24 Nm)
    • Connect the vacuum hose and clamp.
    • Install the TC coolant supply tube bolt.
      Torque: 89 lb.in (10 Nm)
    • Connect the TC coolant return hose and clamp.

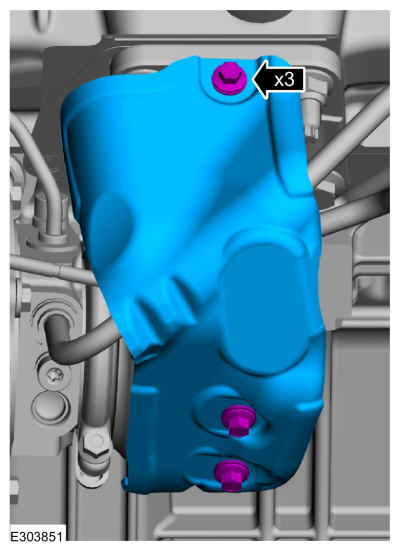

  1. Install the heat shield and the bolts.
    Torque: 89 lb.in (10 Nm)
  1. Install the TC oil return tube fasteners.
    Torque: 89 lb.in (10 Nm)

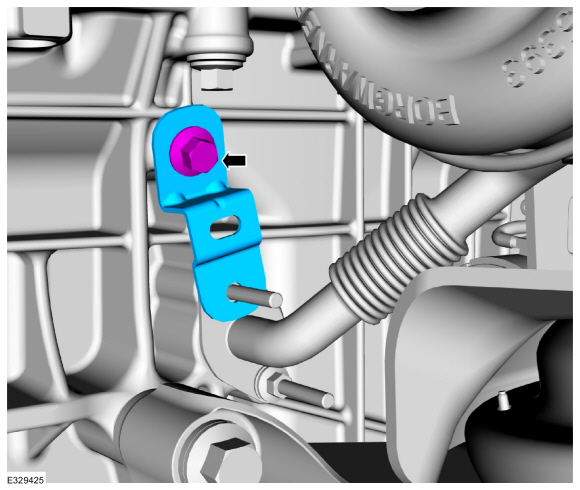

  1. Install the bracket and the bolt.
    Torque: 106 lb.in (12 Nm)

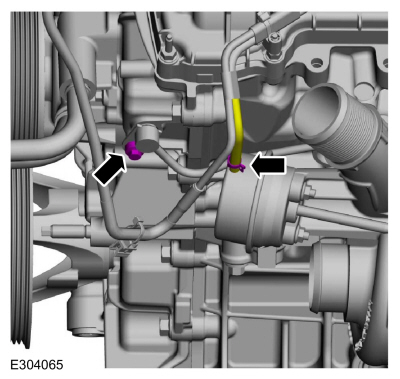

  1. NOTE: Single vacuum tube system shown, dual vacuum tube system similar.

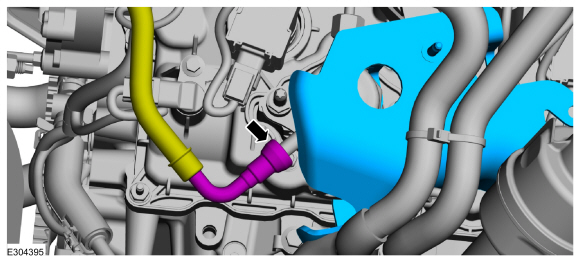

    If equipped, connect the vacuum tube(s).
  1. NOTE: Single vacuum tube system shown, dual vacuum tube system similar.

    If equipped, connect the vacuum tube(s).

LHD AWD

  1. NOTE: Make sure that a new component is installed.

    NOTE: Make sure that the O-ring is seated correctly.

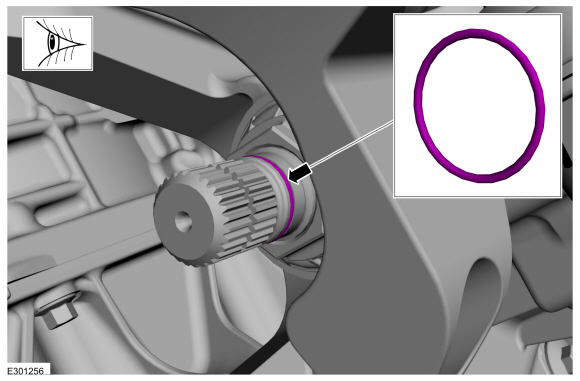

    Install a new front axle pinion stem O-ring.
  1. NOTE: Make sure that a new component is installed.

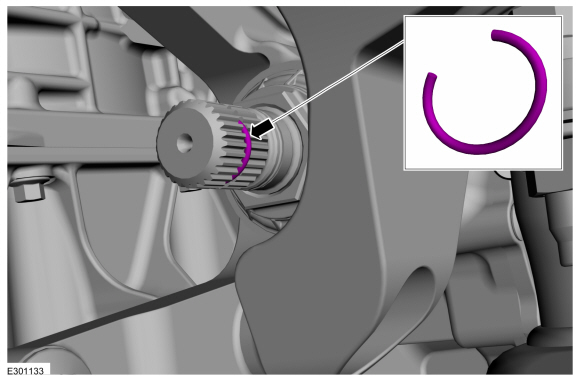

    Install the new front axle pinion stem circlip.
  1. NOTICE: Do not over-lubricate the driveshaft components. Using excessive grease may damage the driveshaft components.

    NOTE: Wipe off any excess grease.

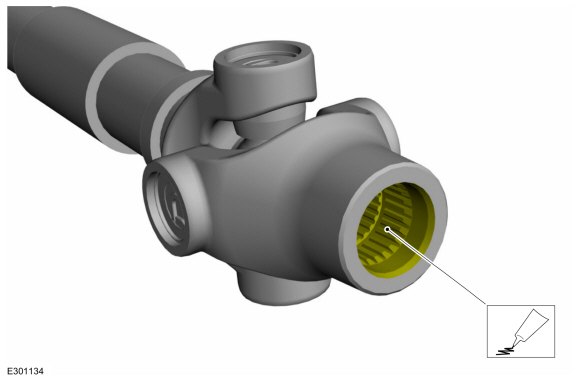

    Lubricate the front drive axle splines with grease.
    Material: Motorcraft® Premium Long-Life Grease / XG-1-E1 (ESA-M1C75-B)

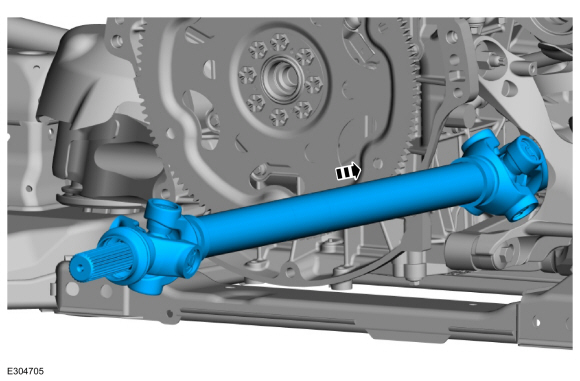

  1. Install the front drive shaft.

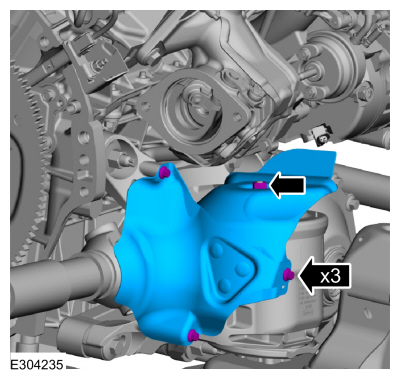

  1. Install the heat shield and the fasteners.
    Torque: 89 lb.in (10 Nm)

LHD AWD/LHD RWD

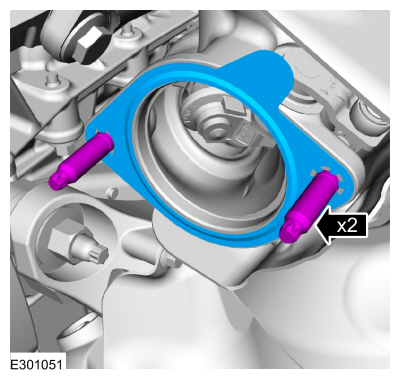

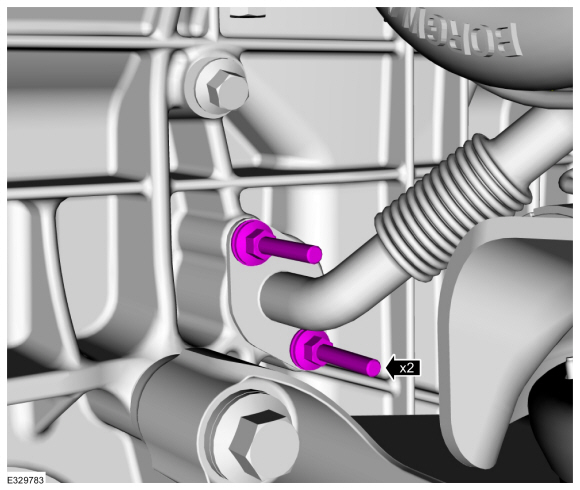

    • If removed, install new studs.
      Torque: 18 lb.ft (25 Nm)
    • Install the new gasket.
  1. NOTE: AWD shown, RWD similar.

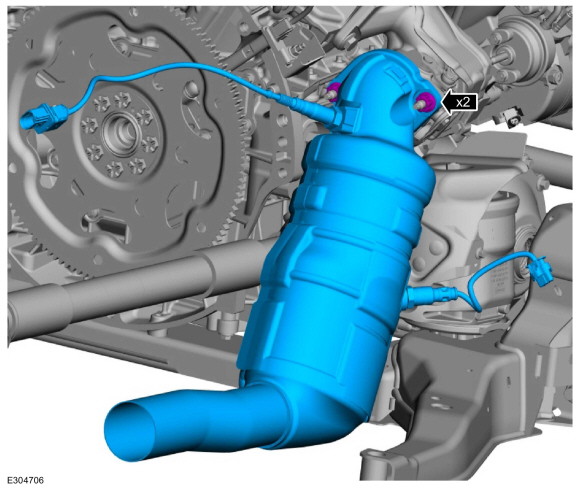

    Install theRH catalytic converter and the new nuts.
    Torque: 35 lb.ft (48 Nm)

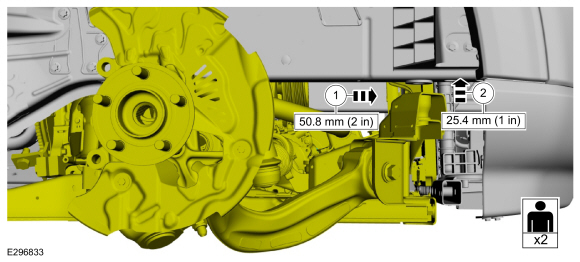

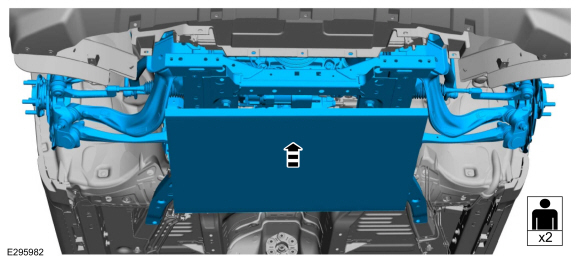

  1. With the aid of an assistant and using the powertrain jack, raise the powertrain and subframe as an assembly 25.4 mm (1 in) from the frame.
    1. With the aid of an assistant and using the powertrain jack, position the powertrain and subframe forwards 50.8 mm (2 in).
    1. With the aid of an assistant and using the powertrain jack, raise the powertrain and subframe 25.4 mm (1 in).
  1. NOTE: The original bolts will be installed at this point to support the subframe, new bolts will be installed after the LH catalytic converter is installed.

    Install the original rear subframe bolts.
  1. Install the new front subframe bolts finger tight.
  1. NOTE: The original bolts will be installed at this point to support the subframe, new bolts will be installed after the LH catalytic converter is installed.

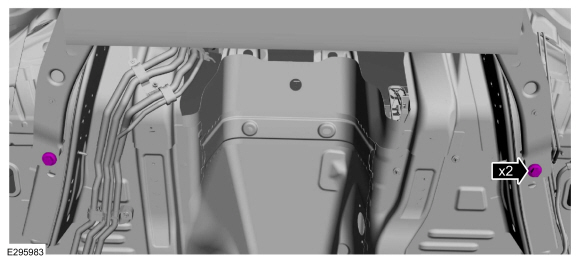

    Install the original middle subframe bolts.

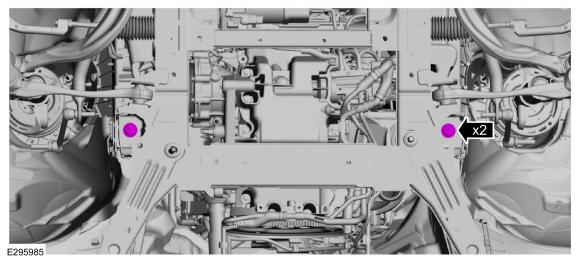

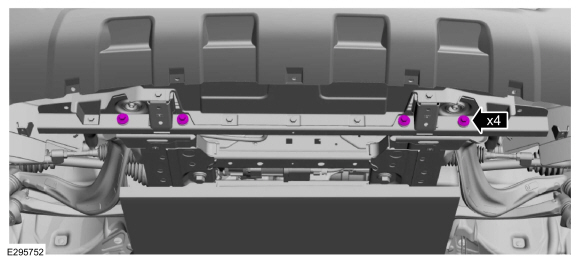

  1. Tighten the front subframe bolts.
    Torque: 195 lb.ft (265 Nm)

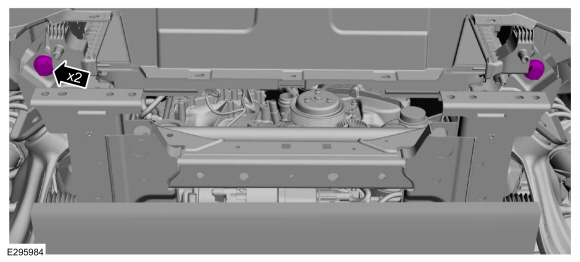

  1. Install the front radiator support bar bolts.
    Torque: 46 lb.ft (63 Nm)
  1. Remove.
    Use the General Equipment: Adjustable Mounting Arm

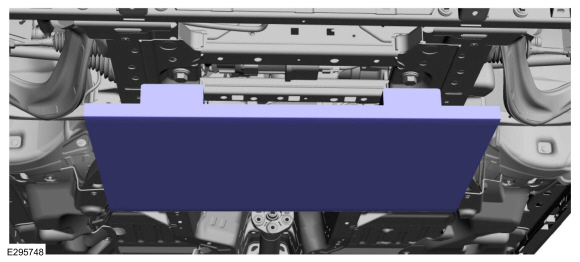

  1. Remove the powertrain jack and wooden blocks
    Use the General Equipment: Wooden Block
  1. NOTICE: Only use hand tools when removing the engine mount nuts or damage to the engine mount can occur.

    Install the new RH engine mount nut.
    Torque: 184 lb.ft (250 Nm)
  1. NOTICE: Only use hand tools when removing the engine mount nuts or damage to the engine mount can occur.

    Install the new LH engine mount nut.
    Torque: 184 lb.ft (250 Nm)
  1. NOTE: AWD shown, RWD similar.

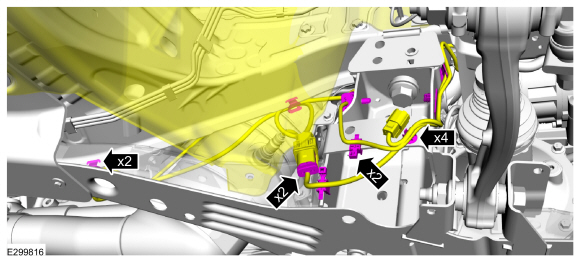

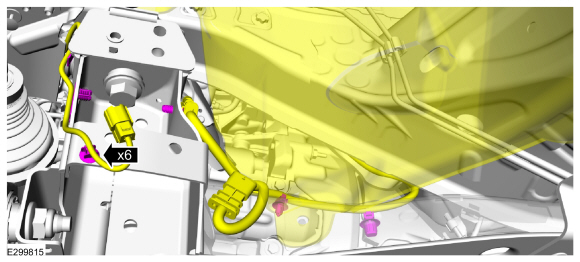

    • Connect the HO2S and catalyst monitor sensor electrical connectors.
    • Attach the wiring harness retainers.
  1. NOTE: AWD shown, RWD similar.

    Attach the HO2S wiring harness retainers to the LH subframe.
  1. Install the vent hose(s) and attach the retainer.
  1. Install the following items:
    1. Refer to: Transmission - 3.0L EcoBoost (307-01A Automatic Transmission - 10-Speed Automatic Transmission – 10R60, Removal and Installation).
    2. RH side.
      Refer to: Exhaust Flexible Pipe (309-00A Exhaust System - 3.0L EcoBoost, Removal and Installation).

LHD AWD

  1. Install the RH and LH halfshafts.
    Refer to: Halfshaft (205-04 Front Drive Halfshafts, Removal and Installation).

LHD RWD

  1. NOTE: On both sides.

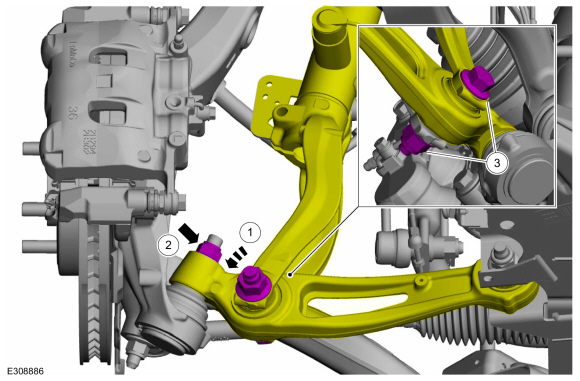

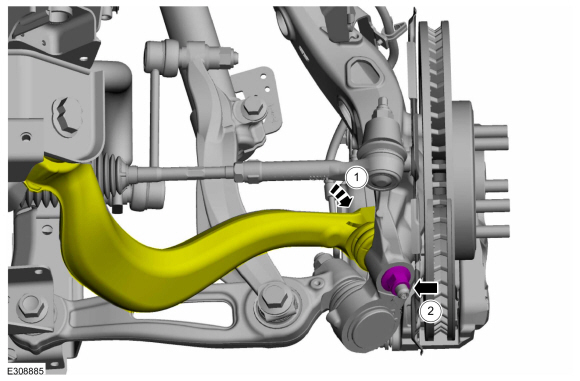

    1. Install the lower arm onto the knuckle.
    1. NOTICE: Do not use power tools to remove or install the lower arm outboard nut. Damage to the ball joint or ball joint seal may occur.

      NOTE: Use the TORX PLUS® holding feature to prevent the ball stud from turning while removing or installing the lower arm outboard nut. Torx® and TORX PLUS® is a reg. tm of Acument Intellectual Properties, LLC.

      Install the new nut.
      Torque: 136 lb.ft (185 Nm)
    1. Install the nut and bolt.
      Torque: 210 lb.ft (285 Nm)
  1. NOTICE: Do not use power tools to remove or install the lower arm outboard nut. Damage to the ball joint or ball joint seal may occur.

    NOTE: Use the TORX PLUS® holding feature to prevent the ball stud from turning while removing or installing the lower arm outboard nut. Torx® and TORX PLUS® is a reg. tm of Acument Intellectual Properties, LLC.

    NOTE: On both sides.

    1. Install the front lower arm into the knuckle.
    1. Install the new nut.
      Torque: 66 lb.ft (90 Nm)
  1. NOTE: On both sides.

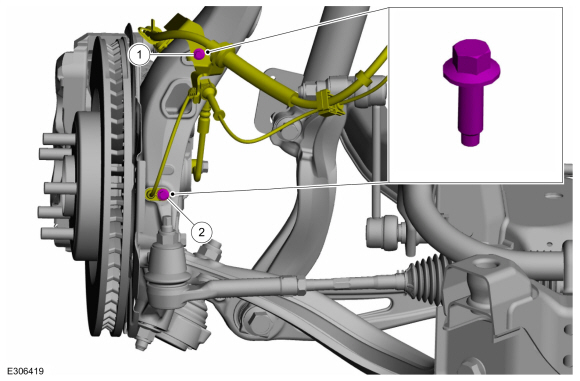

    1. Install the retainer bracket and the bolt.
      Torque: 106 lb.in (12 Nm)
    1. Install the front wheel speed sensor and bolt.
      Torque: 159 lb.in (18 Nm)
  1. NOTE: On both sides.

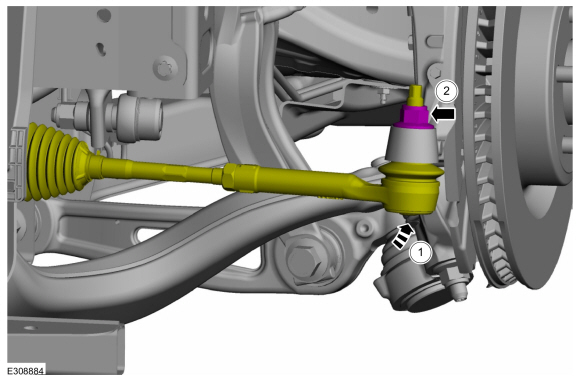

    1. Install the tie rod end into the wheel knuckle.
    1. Install the new nut.
      Torque: 52 lb.ft (70 Nm)

LHD AWD/LHD RWD

  1. NOTICE: Use the internal or external hex-holding feature to prevent the ball and stud from turning while removing or installing the stabilizer bar link nuts. The link boot seal must not be allowed to twist while tightening the link nuts or damage to the boot seal will occur.

    NOTE: On both sides.

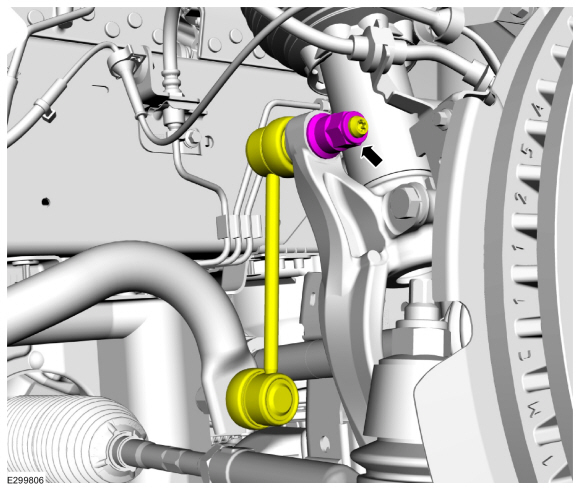

    Position the sway bar link and install the new nut.
    Torque: 129 lb.ft (175 Nm)
    • If equipped, connect the RH transfer case vent hose.

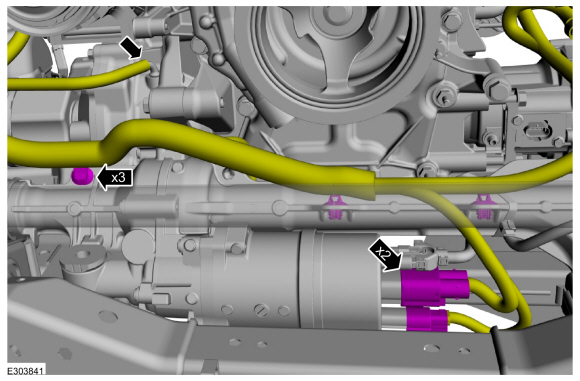

    • Connect the steering gear wiring harness electrical connectors and attach the wiring harness retainers.

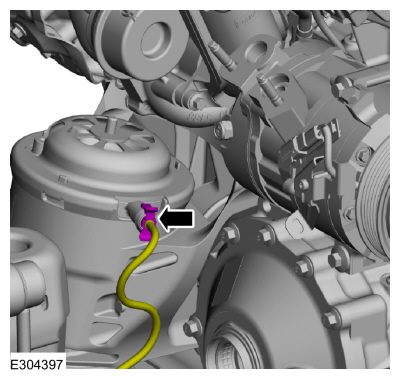

  1. If equipped, attach the wiring harness retainer.
  1. If equipped, connect the wiring harness electrical connector to the RH transfer case.

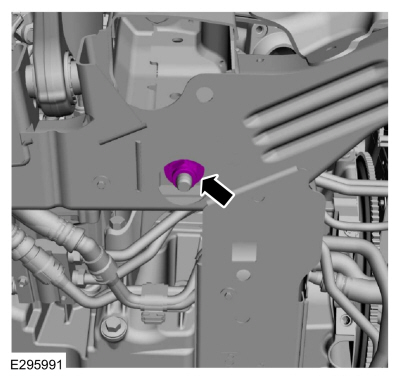

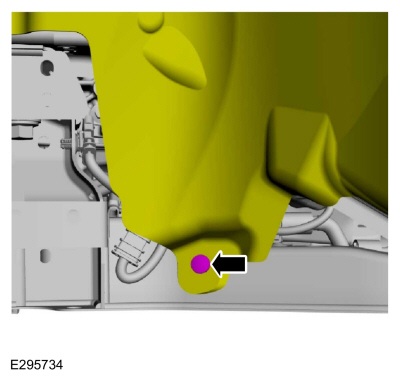

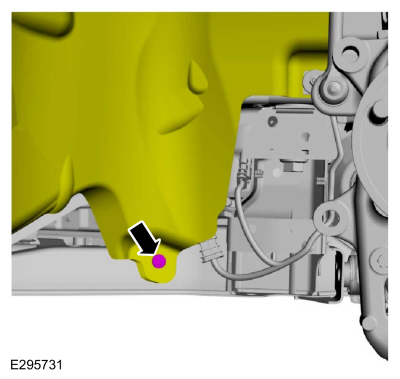

  1. Install the splash shield pin-type retainer to the RH subframe.

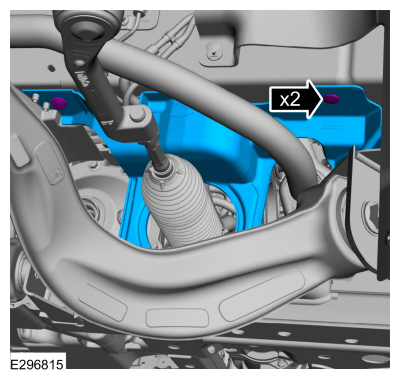

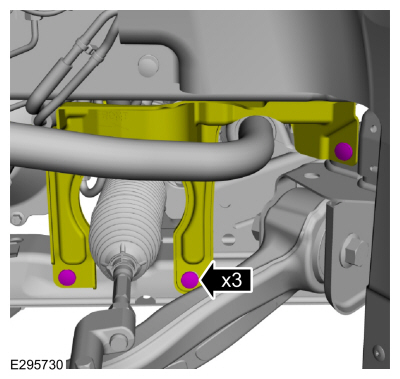

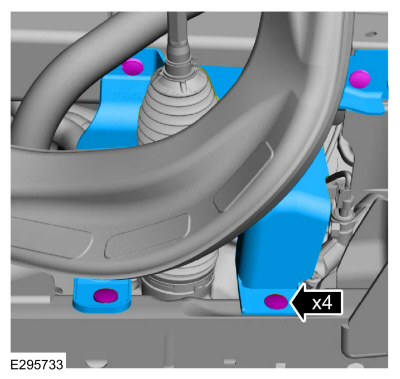

  1. Install the steering shield and the pin-type retainers to the RH subframe.
  1. Install the steering shield pin-type retainers to the RH subframe.
  1. If equipped, attach the air suspension tube retainers.

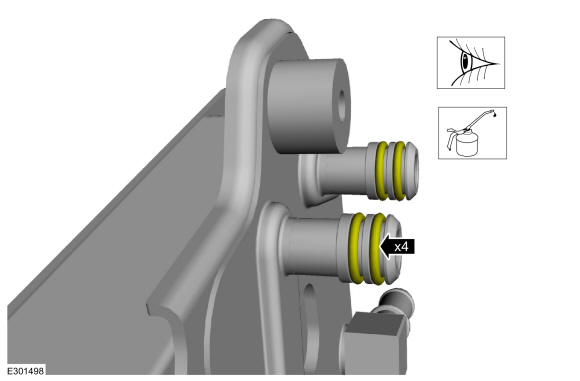

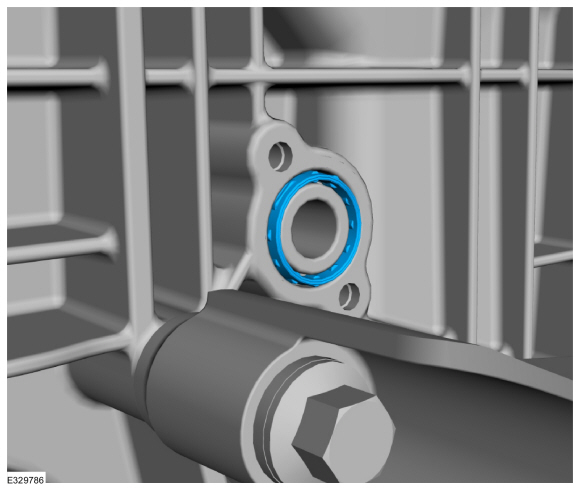

  1. Inspect the O-ring seals and install new O-ring seals if necessary. Lubricate the O-ring seals before installing the transmission fluid cooler.
    Material: Motorcraft® MERCON® ULV Automatic Transmission Fluid / XT-12-QULV (WSS-M2C949-A, ) (MERCON® ULV)

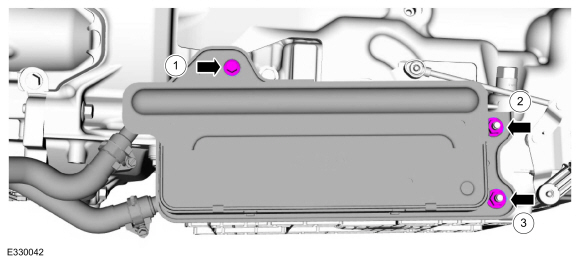

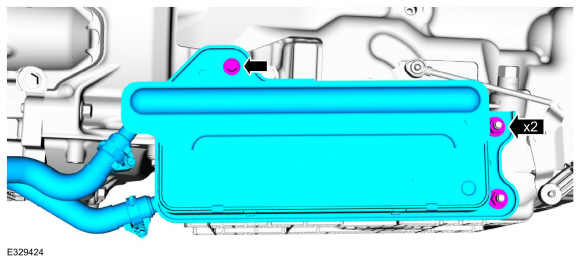

  1. NOTICE: Make sure the oil cooler is completely installed against the transmission before tightening, or damage to the cooler could result.

    Install the transmission fluid cooler and loosely install the bolt and the nuts by hand.
  1. NOTICE: Make sure the oil cooler is completely installed against the transmission before tightening, or damage to the cooler could result.

    Tighten the bolt and nuts in the sequence shown.
    Torque: 18 lb.ft (25 Nm)

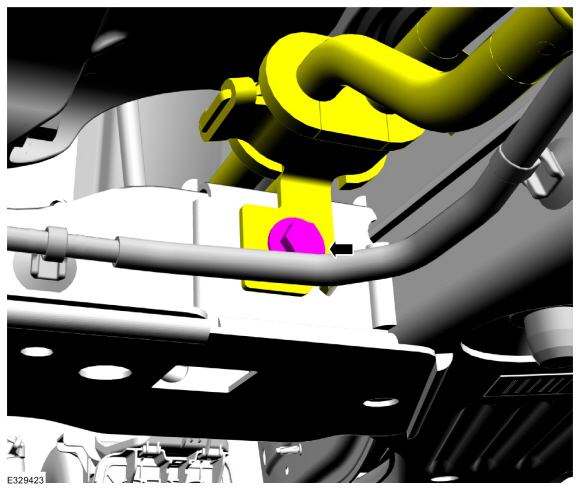

  1. Position the bracket and install the bolt.
    Torque: 71 lb.in (8 Nm)

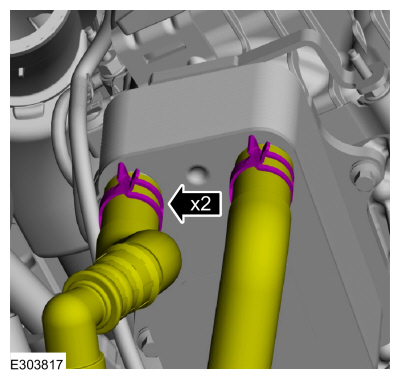

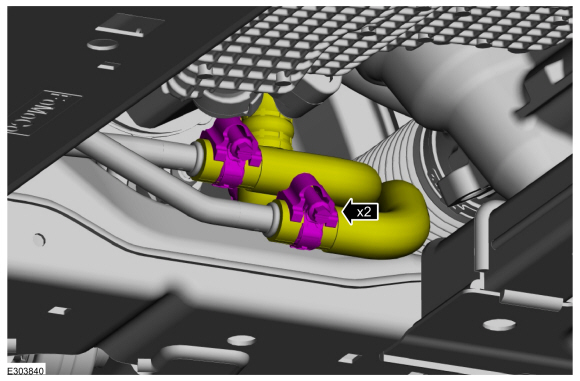

  1. Connect the coolant hoses and tighten the clamps.
    Torque: 33 lb.in (3.7 Nm)

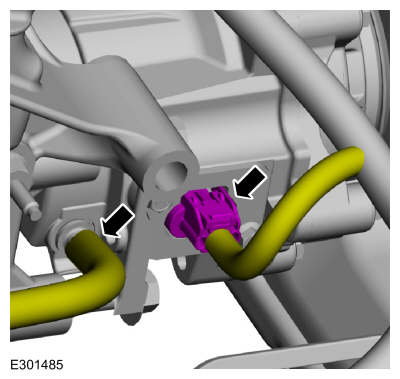

  1. NOTE: If equipped with AWD.

    • Connect the vent hose.
    • Connect the wiring harness electrical connector.
  1. Position the splash shield and install the pin-type retainer to the LH subframe.
  1. Install the steering shield and the pin-type retainers to the LH subframe.

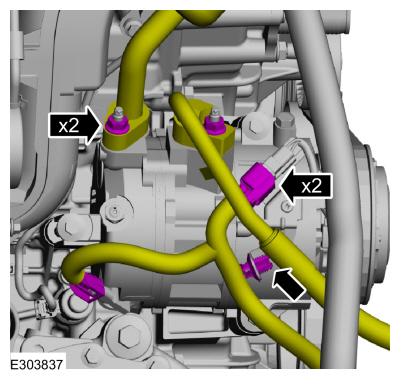

    • Connect the A/C wiring harness electrical connectors.
    • Attach the wiring harness retainer.
    • Install a new O-ring seal.
    • Connect the A/C lines to A/C compressor and install the nuts.
      Torque: 159 lb.in (18 Nm)
  1. If equipped, install the front suspension height sensors.
    Refer to: Front Suspension Height Sensor (204-05 Vehicle Dynamic Suspension, Removal and Installation).

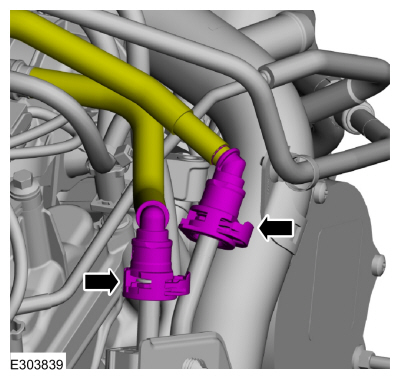

    • Connect the fuel supply tube quick release coupling.
      Refer to: Quick Release Coupling (310-00A Fuel System - General Information - 3.0L EcoBoost, General Procedures).
    • Connect the EVAP supply tube quick release coupling.
      Refer to: Quick Release Coupling (310-00A Fuel System - General Information - 3.0L EcoBoost, General Procedures).

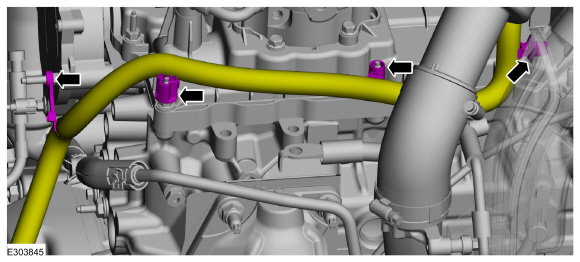

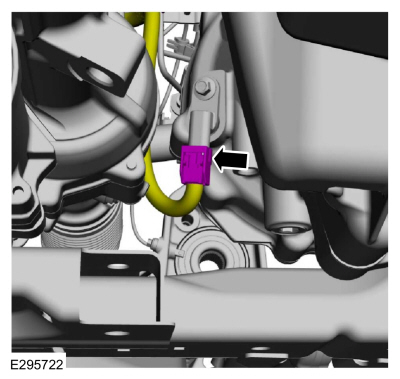

  1. Attach the wiring harness retainers.

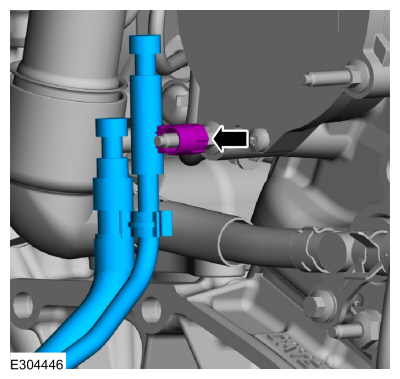

  1. Position the wiring harness and install the bolt.
    Torque: 97 lb.in (11 Nm)
  1. Install the ground cable and the bolt.
    Torque: 106 lb.in (12 Nm)
    1. Position the high-pressure fuel pump shield.
    1. Connect the high-pressure fuel pump fuel feed spring lock coupling.
      Refer to: Spring Lock Couplings (310-00A Fuel System - General Information - 3.0L EcoBoost, General Procedures).

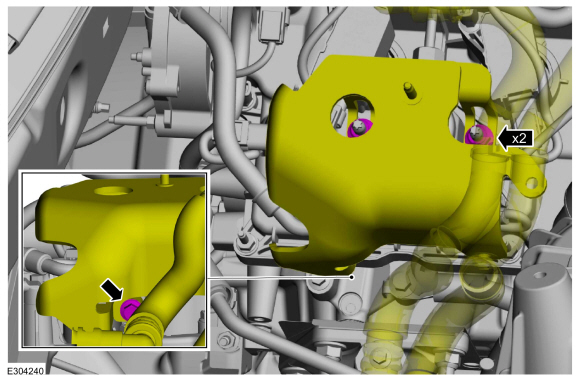

  1. Install the high-pressure fuel pump shield, the nuts and the bolt.
    Torque: 18 lb.ft (25 Nm)
  1. NOTE: When removing or installing the fuel injection pump noise insulator, spreading the openings will reduce the risk of damage.

    1. Install the fuel injection pump noise insulator.

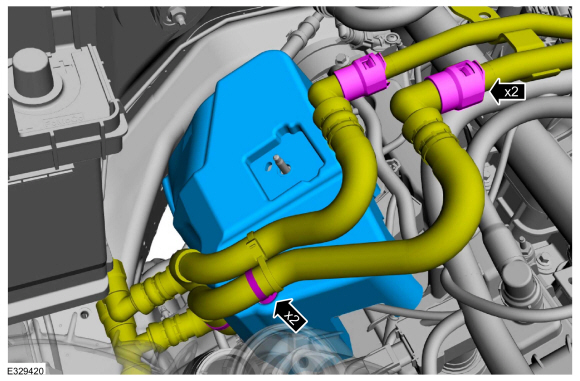

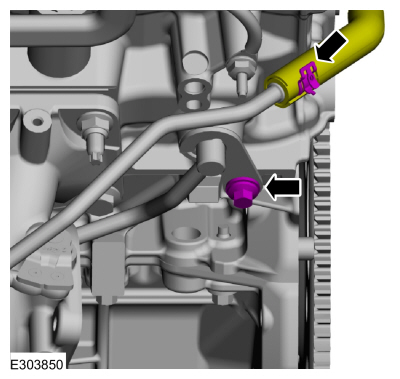

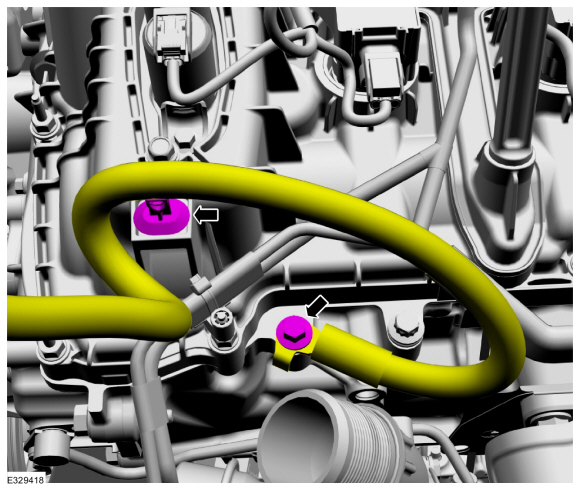

    1. Attach the coolant hose retainers.
    1. Connect the coolant hoses.

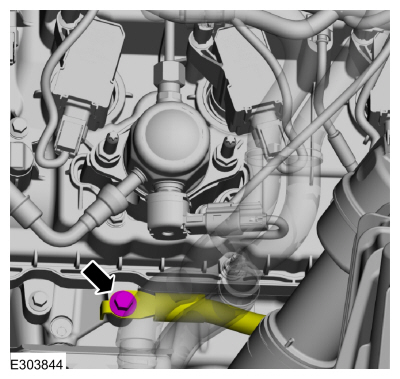

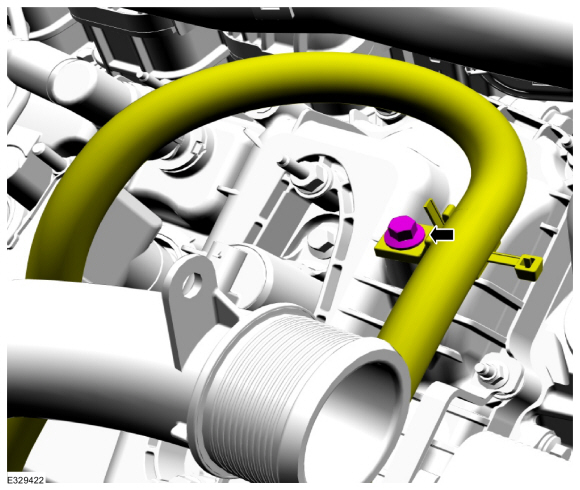

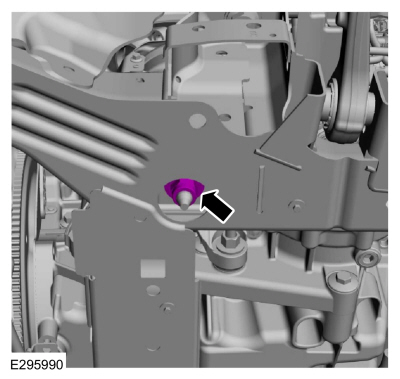

    1. Install the bolt.
      Torque: 106 lb.in (12 Nm)
    1. Attach the wiring harness retainer.

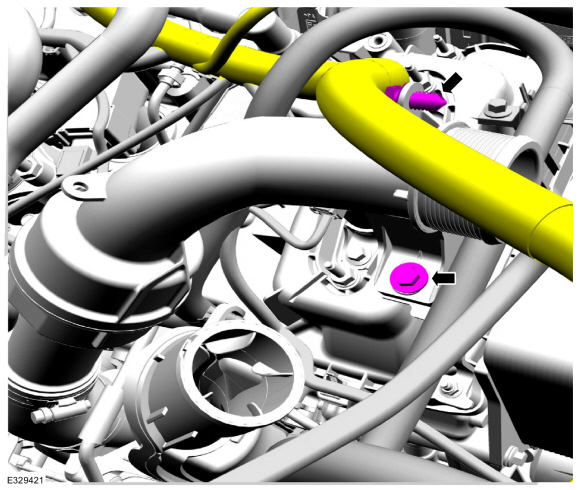

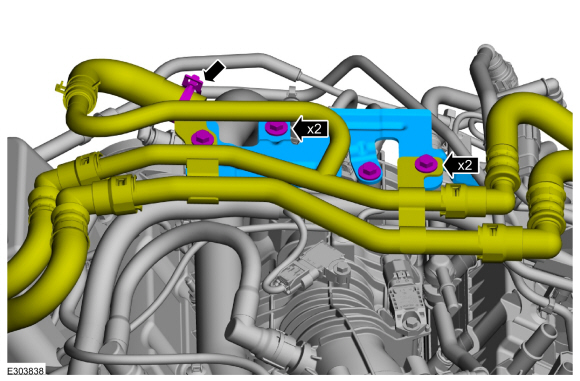

    • Install the intake manifold bracket and the bolts.
      Torque: 97 lb.in (11 Nm)
    • Position the heater hose brackets and install the bolts.
      Torque: 97 lb.in (11 Nm)
    • Connect the heater hose and clamp.

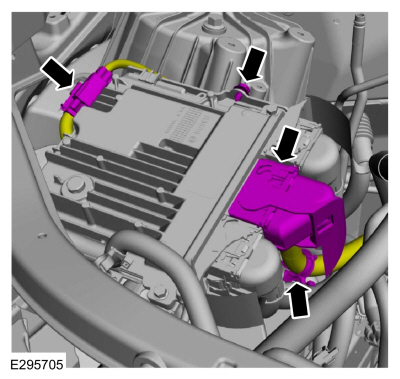

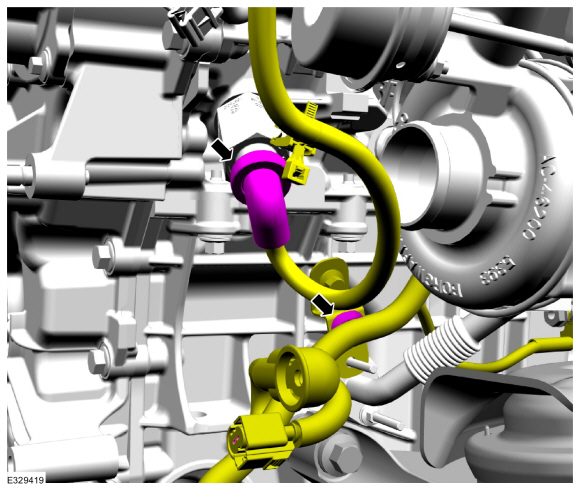

    • Connect the center PCM electrical connector and attach the wiring harness retainer.
    • Connect the engine harness electrical connector, and attach the retainer.

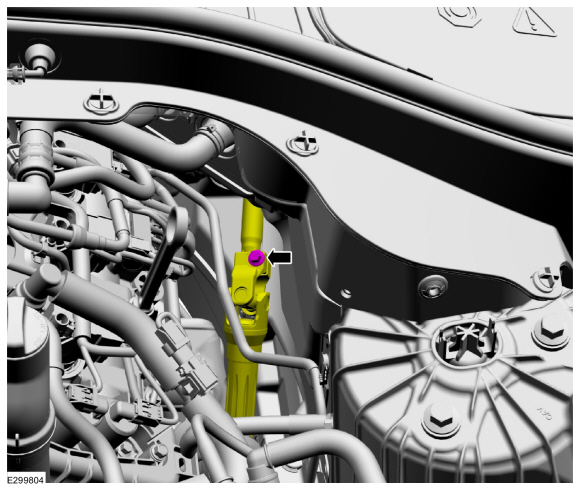

  1. Install the new steering shaft bolt.
    Torque: 22 lb.ft (30 Nm)
    • Attach the wiring harness retainer.

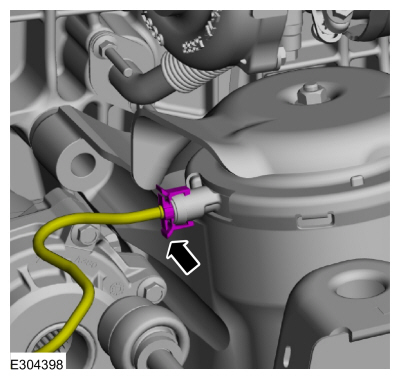

    • If equipped, connect the block heater electrical connector.
  1. Install the generator.
    Refer to: Generator - 3.0L EcoBoost (414-02 Generator and Regulator, Removal and Installation).
    • Position the ground cable and install the bolt.
      Torque: 106 lb.in (12 Nm)
    • Attach the wiring harness retainer.
  1. Connect the oil cooler hoses and the clamps.

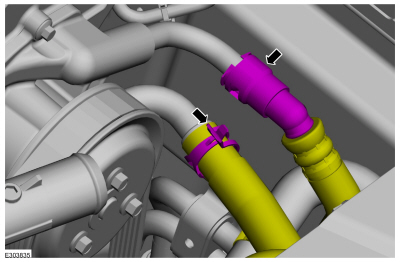

    • Connect the coolant hose quick release coupling.
    • Connect the coolant hose and the clamp.

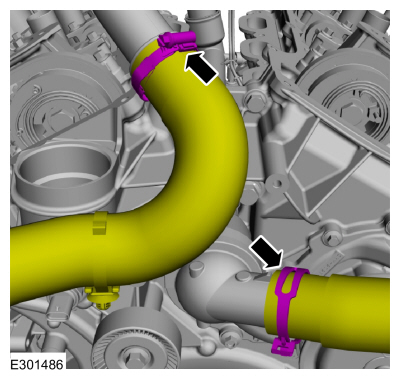

    • Connect the upper radiator hose and the clamp.
    • Connect the lower radiator hose and the clamp.
      Torque: 48 lb.in (5.4 Nm)
    1. Install the air cleaner outlet pipe and the clamp.
      Torque: 42 lb.in (4.8 Nm)

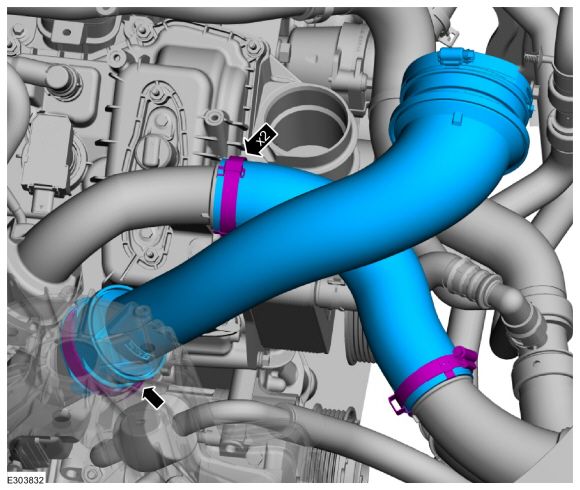

    1. Install the CAC inlet pipe and the clamps.
      Torque: 42 lb.in (4.8 Nm)

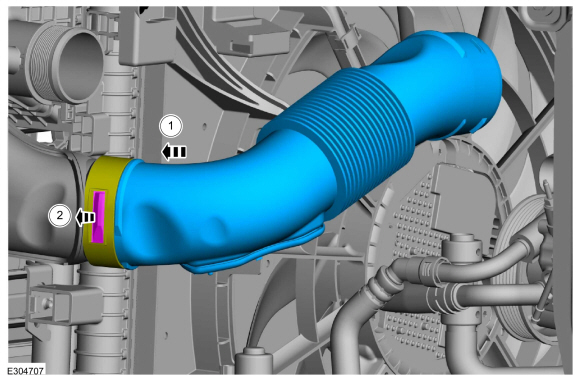

    1. Install the air cleaner inlet pipe.
    1. Verify the raised area of the pipe is fully engaged.
  1. Install the coolant hose and the clamp.

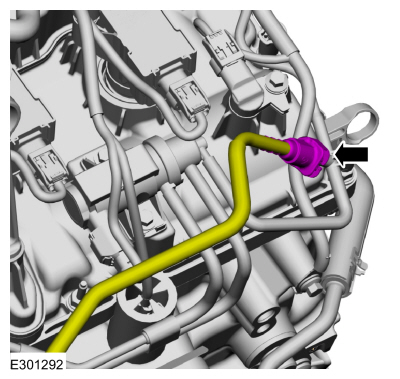

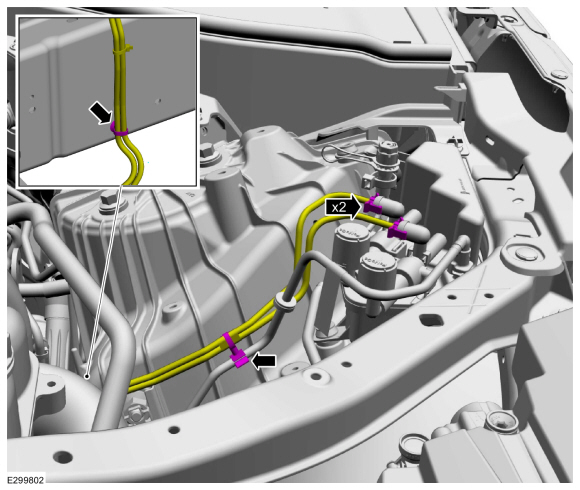

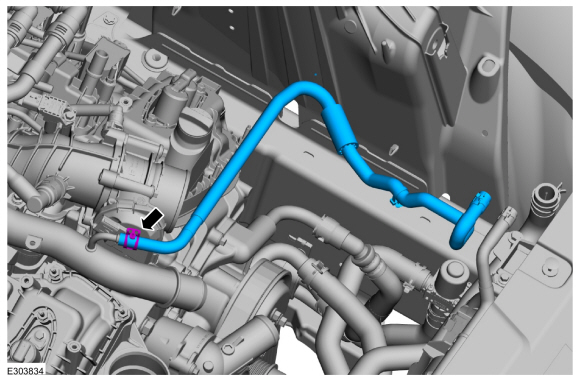

  1. Connect the vacuum tube quick release coupling.
    • If equipped, connect the vacuum tubes.
    • If equipped, attach the retainer.
  1. Install the following items:
    1. LH side.
      Refer to: Charge Air Cooler (CAC) Intake Pipe (303-12 Intake Air Distribution and Filtering - 3.0L EcoBoost/3.0L EcoBoost – Hybrid (BQ), Removal and Installation).
    2. Refer to: Charge Air Cooler (CAC) Outlet Pipe (303-12 Intake Air Distribution and Filtering - 3.0L EcoBoost/3.0L EcoBoost – Hybrid (BQ), Removal and Installation).
    3. Refer to: Air Cleaner (303-12 Intake Air Distribution and Filtering - 3.0L EcoBoost/3.0L EcoBoost – Hybrid (BQ), Removal and Installation).
    4. Refer to: Degas Bottle (303-03A Engine Cooling - 3.0L EcoBoost, Removal and Installation).
    5. Refer to: Cowl Panel (501-02 Front End Body Panels, Removal and Installation).
  1. Install a new oil filter and fill the engine with clean engine oil.
    Refer to: Engine Oil Draining and Filling (303-01A Engine - 3.0L EcoBoost, General Procedures).

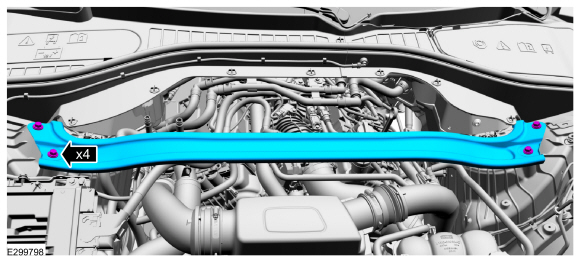

  1. Install the suspension support bar and the bolts.
    Torque: 22 lb.ft (30 Nm)

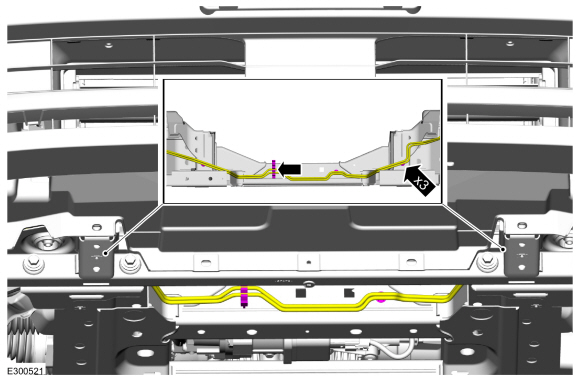

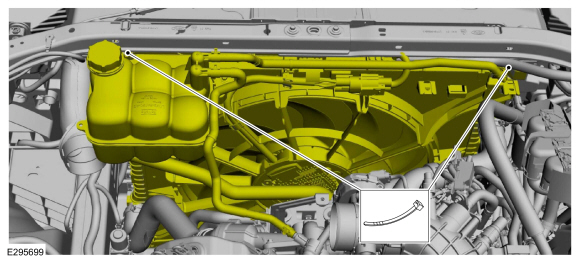

  1. Remove the radiator support cable ties or mechanics wire.

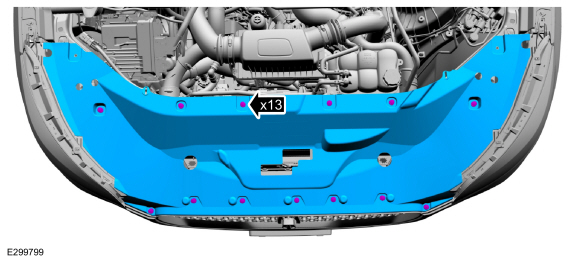

  1. Install the upper radiator panel and the retainers.

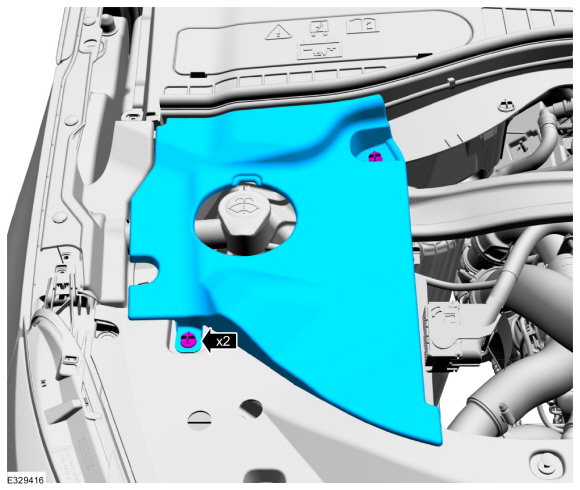

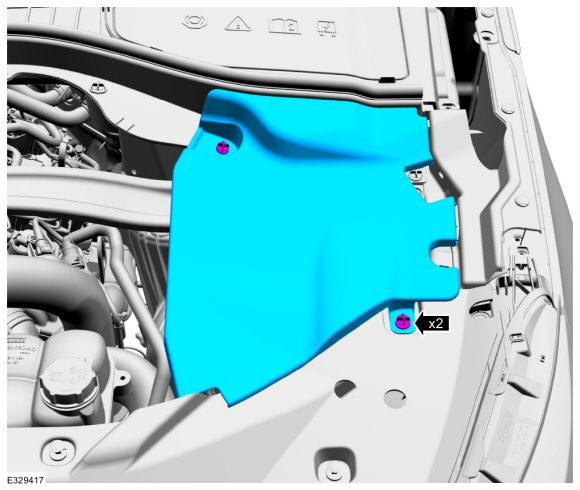

  1. Install the RH engine compartment cover and the retainers.
  1. Install the LH engine compartment cover and the retainers.

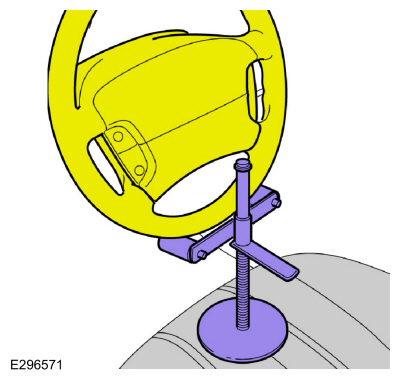

  1. Remove the holding device.
  1. Connect the battery ground cable.
    Refer to: Battery Disconnect and Connect (414-01 Battery, Mounting and Cables, General Procedures).
  1. Pressurize the fuel system.
    Refer to: Fuel System Pressure Release (310-00A Fuel System - General Information - 3.0L EcoBoost, General Procedures).
  1. Fill the cooling system.
    Refer to: Engine Cooling System Draining, Vacuum Filling and Bleeding (303-03A Engine Cooling - 3.0L EcoBoost, General Procedures).
  1. Check the front transfer case fluid level.
  1. Check the transmission fluid.
    Refer to: Transmission Fluid Level Check (307-01A Automatic Transmission - 10-Speed Automatic Transmission – 10R60, General Procedures).
  1. Charge the A/C system.
    Refer to: Air Conditioning (A/C) System Recovery, Evacuation and Charging - Vehicles With: R1234YF Refrigerant (412-00 Climate Control System - General Information, General Procedures).
  1. Start and check the exhaust system for leaks.
  1. Use the Powertrain Control Module (PCM) Misfire Monitor Profile Correction routine in the diagnostic scan tool.

    Assembly - Engine

    Special Tool(s) / General Equipment 205-153 (T80T-4000-W) Handle 303-1246Engine Spreader BarTKIT-2006UF-FLMTKIT-2006UF-ROW 303-1247VCT Spark Plug Tube Seal Remover and InstallerTKIT-2006UF-FLMTKIT-2006UF-ROW 303-1248Camshaft holding toolsTKIT-2006UF-FLMTKIT-2006UF-ROW 303-1250Seal Installer, Rear MainTKIT-2006UFFLM 303-1531Installer, Front Crank Seal and Damper 303-1633Remover, Roller Rocker FollowerTKIT-2014D-ROW3TKIT-2014D-FL_ROW 303-1634Lift Eyes (2)TKIT-2014D-ROW3TKIT-2014D-FL_ROW 303-1696Camshaft holding fixture 303-335 (T88T-6701-A) Installer, Front Cover Oil SealTKIT-1988-FLMTKIT-1988-F Floor Crane Mounting Stand Plastic Scraper Flat-Bladed Screwdriver Piston Ring Compressor Vise Vise Jaw Protectors Materials Name Specification Motorcraft® High Performance Engine RTV SiliconeTA-357 WSE-M4G323-A6  Motorcraft® Silicone Gasket RemoverZC-30-A -  Flange SealantCU7Z-19B508-A WSS-M2G348-A11  Motorcraft® Metal Surface Prep WipesZC-31-B -  Motorcraft® Metal Brake Parts CleanerPM-4-A, PM-4-B -  NOTICE: During engine repair procedures, cleanliness is extremely important...

    Installation - Engine Block Skirt Stiffener

    Special Tool(s) / General Equipment 205-153 (T80T-4000-W) Handle 303-1246Engine Spreader BarTKIT-2006UF-FLMTKIT-2006UF-ROW 303-1247VCT Spark Plug Tube Seal Remover and InstallerTKIT-2006UF-FLMTKIT-2006UF-ROW 303-1250Seal Installer, Rear MainTKIT-2006UFFLM 303-1531Installer, Front Crank Seal and Damper 303-1634Lift Eyes (2)TKIT-2014D-ROW3TKIT-2014D-FL_ROW 303-335 (T88T-6701-A) Installer, Front Cover Oil SealTKIT-1988-FLMTKIT-1988-F Floor Crane Mounting Stand Plastic Scraper Flat-Bladed Screwdriver Vise Vise Jaw Protectors Materials Name Specification Motorcraft® High Performance Engine RTV SiliconeTA-357 WSE-M4G323-A6  Motorcraft® Silicone Gasket RemoverZC-30-A -  Motorcraft® Metal Surface Prep WipesZC-31-B -  Motorcraft® Metal Brake Parts CleanerPM-4-A, PM-4-B -  NOTICE: During engine repair procedures, cleanliness is extremely important...

    Other information:

    Lincoln Aviator 2020-2022 Service Manual: Diagnosis and Testing - Autolamps


    Diagnostic Trouble Code (DTC) Chart Diagnostics in this manual assume a certain skill level and knowledge of Ford-specific diagnostic practices. REFER to: Diagnostic Methods (100-00 General Information, Description and Operation).   Diagnostic Trouble Code Chart Module   DTC Description Action   BCM B1A85:11 Ambient Light Sensor: Circuit Short To Ground   GO to Pinpoint Test A   BCM B1A85:13 Ambient Light Sensor:Circuit Open   GO to Pinpoint Test A   BCM — All other BCM Diagnostic Trouble Codes (DTCs)   REFER to: Body Control Module (BCM) (419-10 Multifunction Electronic Modules, Diagnosis and Testing)...

    Lincoln Aviator 2020-2022 Owners Manual: Overriding Reverse Braking Assist. Reverse Braking Assist Indicators


    Overriding Reverse Braking Assist There could be instances when unexpected or unwanted braking occurs. Firmly pressing the accelerator pedal or switching the feature off overrides the system. Reverse Braking Assist Indicators If the system determines that a collision with an obstacle may occur, full braking may apply...

    Categories

    Remote Control

    Passive Key

    Lincoln Aviator. Remote Control

    The passive key operates the power locks and the remote start system. The passive key must be in your vehicle to use the push button start.

    Note: You may not be able to shift out of park (P) unless the passive key is inside your vehicle.

    read more


    Copyright © 2022 www.liaviator2.com
