Lincoln Aviator: Interior Trim and Ornamentation / Removal and Installation - A-Pillar Trim Panel
Special Tool(s) /
General Equipment
Removal
NOTE:
LH (left hand) shown, RH (right hand) similar.
-

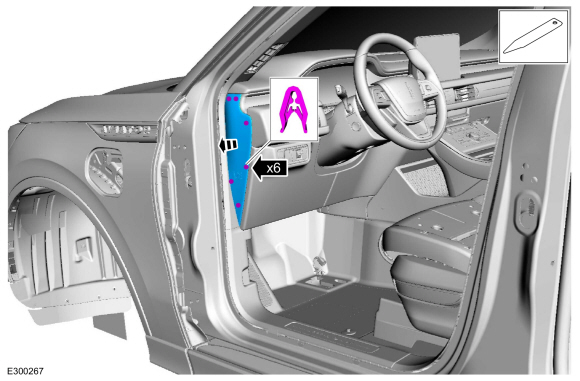

Release the clips and remove the instrument panel side trim panel.
Use the General Equipment: Interior Trim Remover
-

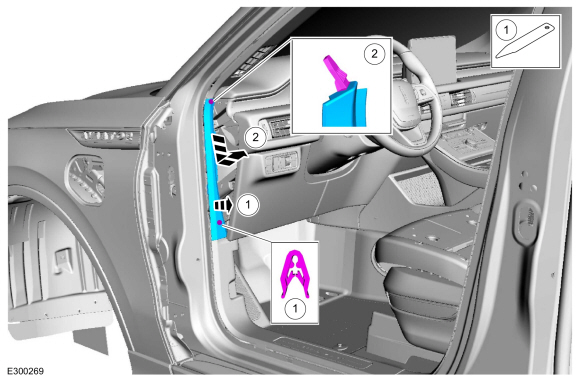

Remove the cowl side trim panel.
-
Release the cowl side trim panel lower clip.
Use the General Equipment: Interior Trim Remover
-
Slide the cowl side trim panel downward and out to release the upper tab.
-

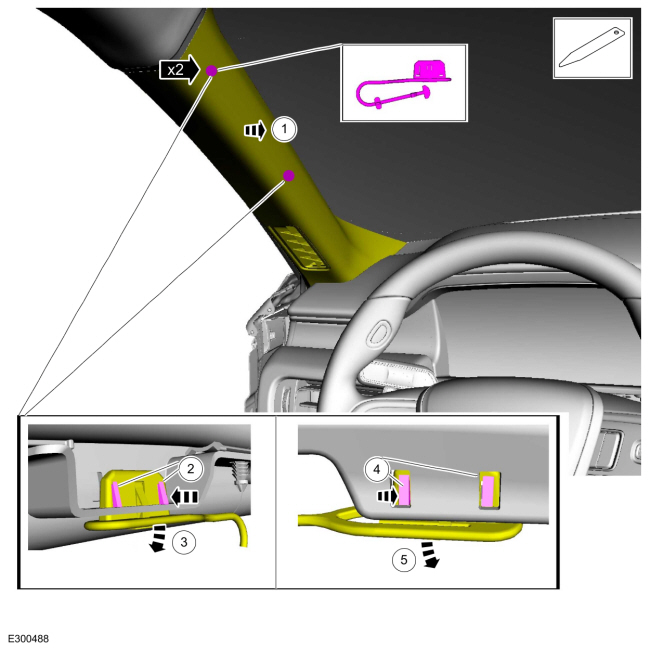

Disconnect the tether clips from the A-pillar trim panel bracket.
-
Release the A-pillar trim panel clip from the tether clip.
-
Release the tether clip front tabs.
Use the General Equipment: Interior Trim Remover
-
Rotate the front of the tether clip downward.
Use the General Equipment: Interior Trim Remover
-
Release the tether clip rear tabs.
Use the General Equipment: Interior Trim Remover
-
Rotate the rear of the tether clip downward.
Use the General Equipment: Interior Trim Remover
-

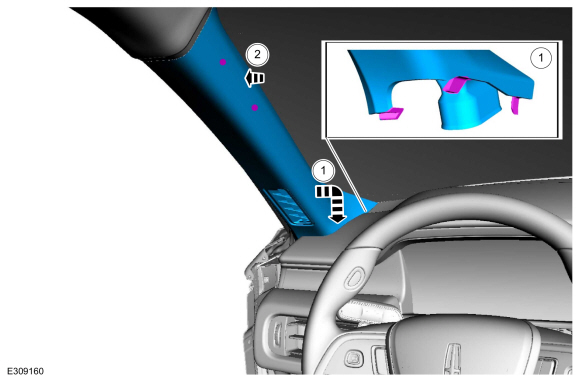

Lift upward and backward and remove the A-pillar trim panel.
Installation
-

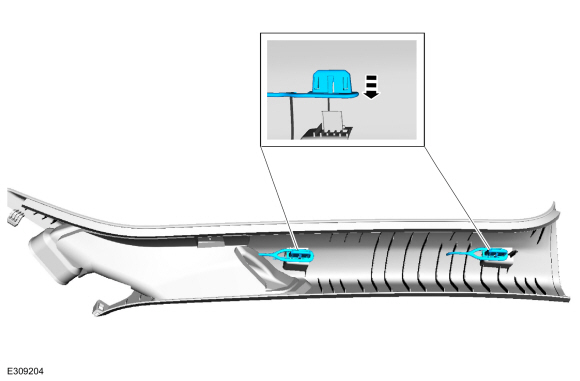

Install the A-pillar trim panel clip from the tether clips.
-

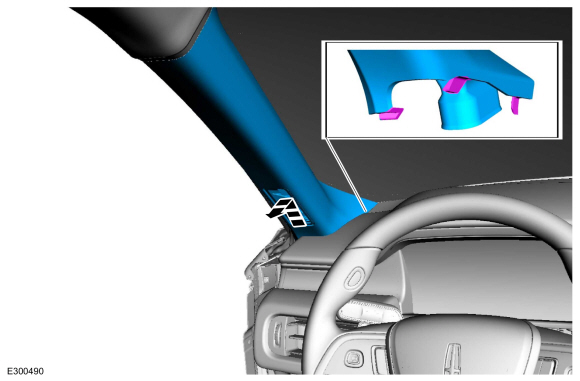

Install the A-pillar trim panel.
-
Install the A-pillar tabs into the instrument panel.
-
Install the A-pillar tether clips into the A-pillar bracket.
-
Install the instrument panel side trim panel.
-
Install the cowl side trim panel.
-
Slide the cowl side trim panel upward and insert the
upper tab into the slot in the lower portion of the A-pillar trim
panel.
-
Connect the cowl side trim panel lower clip.
-
Inspect and position the front door weather strip lip so
that it overlaps the cowl side trim panel and the A-pillar trim panel.
