Lincoln Aviator: Vehicle Dynamic Suspension / Removal and Installation - Air Suspension Reservoir
Removal
WARNING:
Vent all air pressure from the air suspension system prior
to disconnecting or removing any air suspension components. It is
dangerous to remove air suspension components while under pressure.
Failure to follow this instruction may result in serious personal
injury.
NOTE:
Removal steps in this procedure may contain installation details.
-
Depressurize the air suspension system.
-
Position vehicle on a hoist.
Refer to: Jacking and Lifting (100-02 Jacking and Lifting, Description and Operation).
-

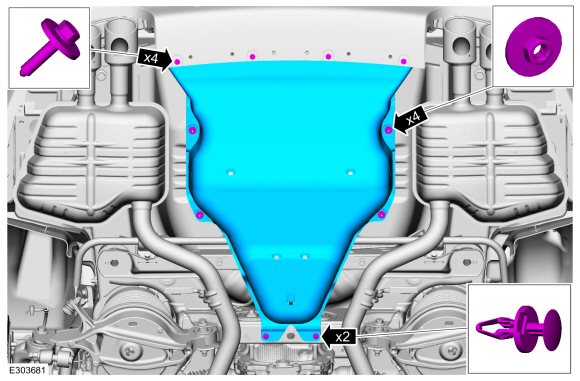

Remove the retainers and the air suspension reservoir shield.
-

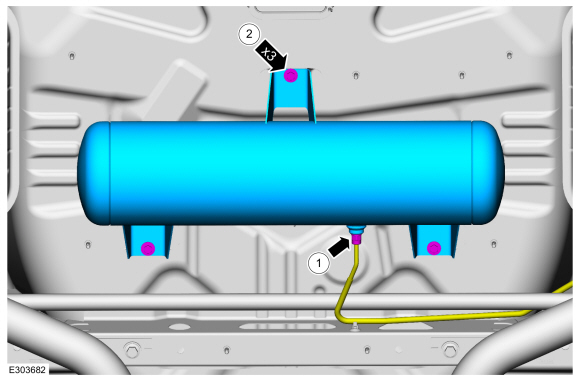

Remove the air suspension reservoir
-
Disconnect the air suspension reservoir pressure line.
-
Remove the retainers and the air suspension reservoir.
Torque:
97 lb.in (11 Nm)
Installation
-
To install, reverse the removal procedure.
-
Repressurize the air suspension system.
Removal
WARNING:
Vent all air pressure from the air suspension system prior
to disconnecting or removing any air suspension components. It is
dangerous to remove air suspension components while under pressure...
Removal
NOTE:
Removal steps in this procedure may contain installation details.
Remove the wheel and tire.
Refer to: Wheel and Tire (204-04A Wheels and Tires, Removal and Installation)...
Other information:
Special Tool(s) /
General Equipment
Transmission Jack
Wooden Block
Removal
With the vehicle in NEUTRAL, position it on a hoist.
Refer to: Jacking and Lifting (100-02 Jacking and Lifting, Description and Operation).
Using a high-lift transmission jack and wooden blocks, support the transmission...
System Operation
Headlamps - Low Series
System Diagram
Item
Description
1
HS-CAN2
2
BCM
3
LH low beam
4
LH high beam
5
RH low beam
6
RH high beam
7
SCCM
8
LH steering column multifunction switch
9
IPMA
10
GWM
11
HS-CAN1
12
Start/Stop switch
13
HCM
14
LIN
15
LIN
16
PCM
17
LH headlamp
18
RH headlamp
19
LH front suspension height sensor
20
LH rear suspension height sensor
21
Headlamp switch
22
(If equipped automatic headlamp leveling)
23
LIN
24
LIN
Network Message Chart
BCM Network Input Messages
Broadcast Message
Originating Module
Message Purpose
Headlamp flash to pass status
GWM
Indicates to the BCM a request for the high beams or flash-to-pass...
