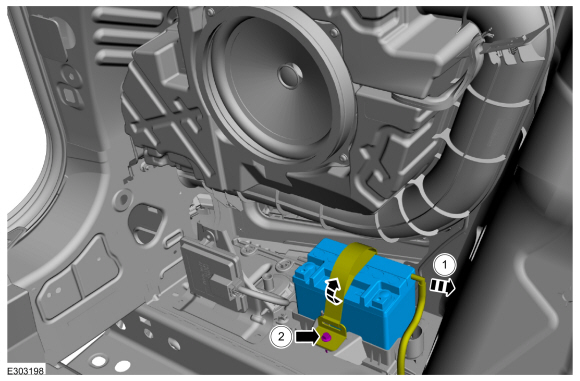

Lincoln Aviator: Battery, Mounting and Cables / Removal and Installation - Auxiliary Battery

General Procedures - Battery Drain Check

Check NOTE: No factory-equipped vehicle should have more than a 25 mA (0.025 amp) – 50 mA (0.050) draw depending on the vehicle's accessories. Check for current drains on the battery in excess of 25 mA (0...

Removal and Installation - Auxiliary Battery Cable

Removal NOTE: This procedure provides information about routing, retaining points and connectors of the cable. It does not include the steps for removing components to gain access to the cable...

Other information:

Lincoln Aviator 2020-2026 Service Manual: Description and Operation - Information and Entertainment System - System Operation and Component Description

System Operation System Diagram NOTE: The system diagrams include all component options. Some components may not be equipped on the vehicle. Audio System - 10 Speaker System Item Description 1 APIM 2 AM/ FM1 Antenna Amplifier 3 Display Unit 4 GWM 5 BCM 6 ACM 7 FCIMB 8 IPC 9 GPS/Satellite Radio Antenna 10 RACM 11 Speakers 12 PCM 13 Audio/SYNC Switches 14 SIMA 15 FM2 Antenna Amplifier 16 SCCM 17 Subwoofer Amplifier and Speaker Audio System - 14 or 28 Speaker System Item Description 1 APIM 2 Display Unit 3 GWM 4 BCM 5 ACM 6 FM2 Antenna Amplifier 7 DSP 8 IPC 9 Satellite/GPS Antenna 10 AM/ FM1 Antenna Amplifier 11 ANC Microphones 12 PCM 13 Speakers 14 SCCM 15 Audio/SYNC Switches 16 SIMA 17 FCIMB SYNC System Item Description 1 Roof Antenna 2 APIM 3 Display Unit 4 Media Hub 5 Microphone 6 ABS Module 7 RCM 8 GWM 9 BCM 10 PCM 11 IPC 12 FCIMB 13 ACM 14 Wi-Fi Device 15 Bluetooth Device 16 DSP 17 ACM 18 Speakers 19 TCU 20 TCU Antenna 21 Wi-Fi Device 22 SCCM 23 Audio/SYNC Switches 24 SIMA 25 GPS/Satellite Radio Antenna 26 Cellular Antenna Network Message Chart   ACM Network Input Messages Broadcast Message Originating Module Message Purpose Accelerator pedal position   PCM Uses the accelerator pedal position percentage for the ANC system operation...

Lincoln Aviator 2020-2026 Service Manual: Description and Operation - Second Row Seats - System Operation and Component Description

System Operation System Diagram - Heated/Ventilated Seats Item Description 1 RACM 2 MS-CAN 3 SCMF 4 LH Rear Seat 5 Cushion Temp Sensor 6 RH Rear Seat 7 Backrest Heater Mat 8 Cushion Heater Mat 9 Cushion and Backrest Blower Motors 10 Backrest Heater Mat 11 Cushion Heater Mat 12 Cushion Temp Sensor 13 Cushion and Backrest Blower Motors 14 HS-CAN3 15 GWM Network Message Chart - Heated/Ventilated Seats   SCMF (rear seat climate control module) Network Input Messages Broadcast Message Originating Module Message Purpose Seat control requests RACM control module Contains the heated/ventilated seat request information...
