Lincoln Aviator: Driveshaft / Removal and Installation - Driveshaft Flexible Coupling
Removal
NOTE:
The maximum articulation of the flex coupling is 4 degrees.
The maximum articulation of any U-joint is 25 degrees. The maximum
articulation of the center CV-joint is 20 degrees. The maximum
articulation of the rear axle CV-joint is 15 degrees. If the flex
coupling or any CV-Joint or U-joint of the driveshaft is articulated
further than the maximum allowable degrees damage may occur.
-
Remove the exhaust flexible pipe.
Refer to: Exhaust Flexible Pipe - Plug-In Hybrid Electric Vehicle (PHEV) (309-00B Exhaust System - 3.0L EcoBoost – Hybrid (BQ), Removal and Installation).
-
If equipped.

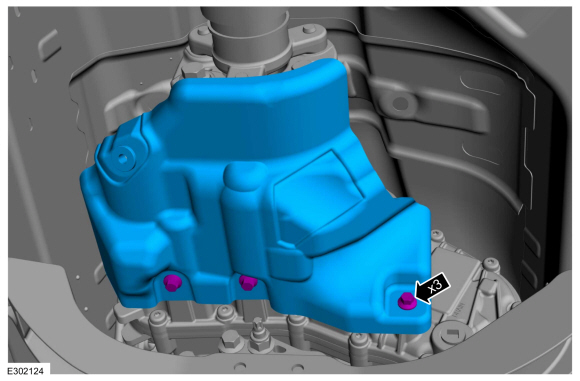

Remove the bolts and the transfer case heat shield.
-
-

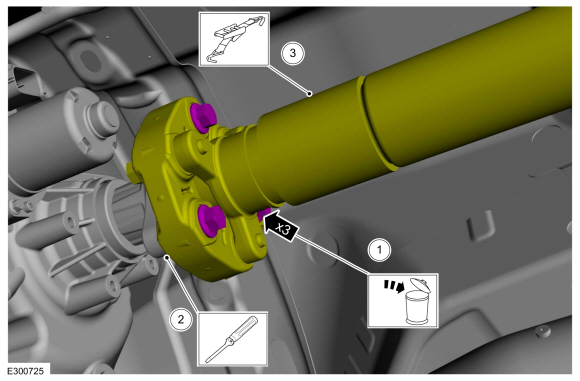

Remove and discard the driveshaft flex coupling to transfer case or transmission flange bolts.
-
Separate the flex coupling from the transfer case or transmission flange.
-
Position aside and support the driveshaft.
-

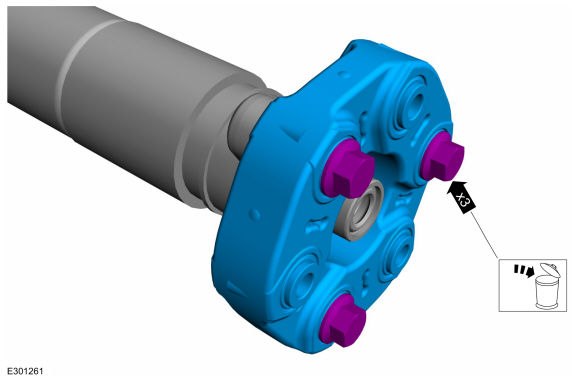

Remove and discard the bolts and remove the flex coupling.
Installation
-

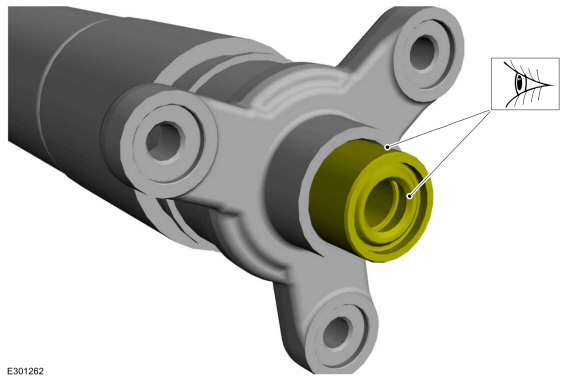

Inspect the driveshaft alignment bushing for damage or excessive wear. Replace if necessary.
Refer to: Driveshaft Alignment Bushing (205-01 Driveshaft, Disassembly and Assembly).
-
NOTE:

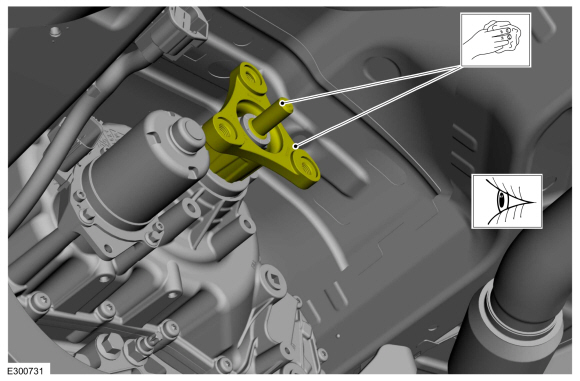

Make sure that the threaded holes are clean and free of foreign matter.
NOTE:
Make sure that the mating faces are clean and free of foreign material.
Clean and inspect the mating surfaces of driveshaft
flexible coupling. Clean-off any contamination or excess grease off of
transfer case or transmission flange and pilot spigot.
-
NOTE:
Cracks forming in the flex coupling are normal.

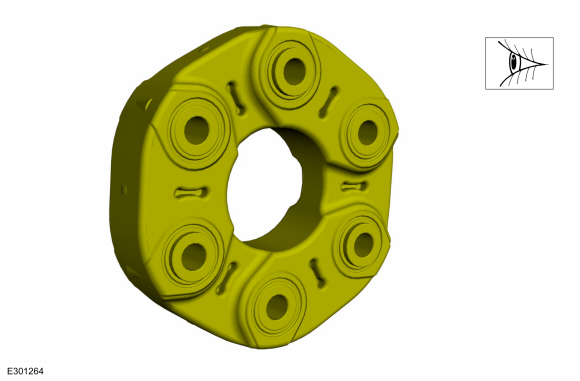

Inspect the flex coupling for damage. If internal windings (threads) are visible, replace the flex coupling.
-
NOTICE:
The protruding flex coupling bushings must align with the driveshaft flange bolts as shown in the picture.
NOTE:
Do not force the flex coupling bushing on the driveshaft or damage will occur.
NOTE:
Make sure that the arrows moulded on flex coupling point towards the bolt holes on the flange.

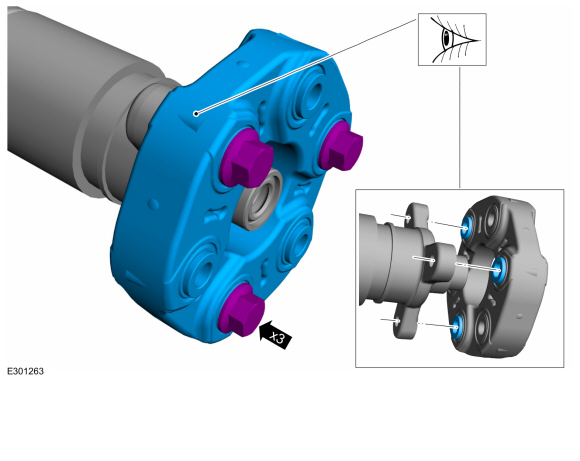

Position the driveshaft flex coupling to the driveshaft flange and install the new bolts.
Torque:
81 lb.ft (110 Nm)
|
|
-
NOTICE:
Do not over articulate the driveshaft or damage may occur.
NOTICE:
The protruding flex coupling bushings must align
with the transfer case output flange bolts as shown in the picture.
NOTE:
Do not force the flex coupling bushing on the transfer case output shaft or damage will occur.
NOTE:
Make sure that the arrows moulded on flex coupling point towards the bolt holes on the flange.
-
Position the driveshaft flex coupling to the transfer case or transmission flange.
-

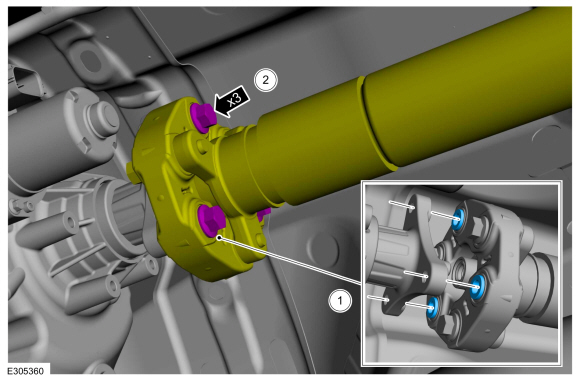

Install the new driveshaft flex coupling to transfer case or transmission flange bolts.
Torque:
81 lb.ft (110 Nm)
-
NOTICE:
Ensure that the transfer case heatshield does not contact the driveshaft flex coupling.
If equipped.
Install the bolts and the transfer case heat shield.
Torque:
21 lb.ft (28 Nm)
-
Install the exhaust flexible pipe.
Refer to: Exhaust Flexible Pipe - Plug-In Hybrid Electric Vehicle (PHEV) (309-00B Exhaust System - 3.0L EcoBoost – Hybrid (BQ), Removal and Installation).
Special Tool(s) /
General Equipment
100-002
(TOOL-4201-C)
Holding Fixture with Dial Indicator Gauge
Inspection
NOTE:
Driveline vibration exhibits a higher frequency and lower
amplitude then high-speed shake...
