Lincoln Aviator: Information and Entertainment System - General Information / Removal and Installation - Front Display Interface Module (FDIM)
Special Tool(s) /
General Equipment
Removal
NOTE:
Removal steps in this procedure may contain installation details.
-

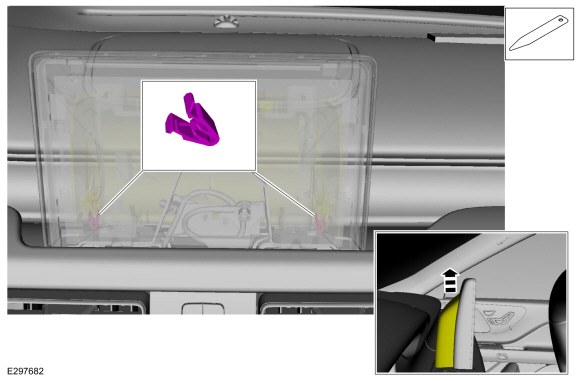

Release the clips and remove the mounting bolt cover.
Use the General Equipment: Interior Trim Remover
-

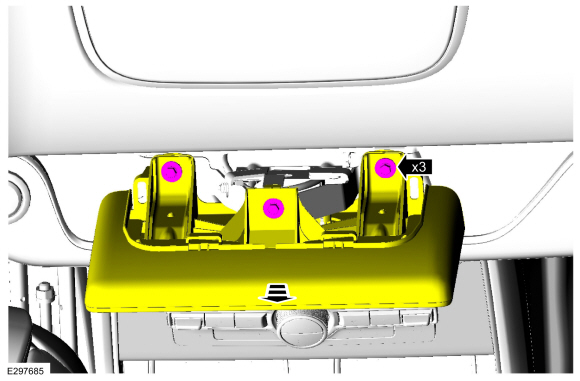

Remove the bolts and position the FDIM.
Torque:
71 lb.in (8 Nm)
-

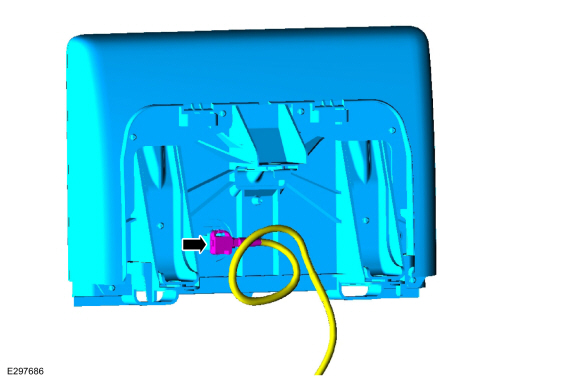

Disconnect the LVDS connector and remove the FDIM.
Installation
-
To install, reverse the removal procedure.
Removal
NOTE:
Removal steps in this procedure may contain installation details.
NOTE:
If installing a new module, it is necessary to
upload the module configuration information to the scan tool prior to
removing the module...
Removal
NOTE:
Removal steps in this procedure may contain installation details.
All vehicles
Remove the front door trim panel.
Refer to: Front Door Trim Panel (501-05 Interior Trim and Ornamentation, Removal and Installation)...
Other information:
Partial Replacement
Item
Description
1
Sectioning area
2
Manufacture weld joint
Decision Criteria
The following points a crucial to the decision of complete or partial replacement of the part(s)...
Diagnostic Trouble Code (DTC) Chart
Diagnostics in this manual assume a certain skill level and knowledge of Ford-specific diagnostic practices. REFER to: Diagnostic Methods (100-00 General Information, Description and Operation).
Diagnostic Trouble Code Chart
Module
DTC
Description
Action
BCM
B11D9:16
Vehicle Battery:Circuit Voltage Below Threshold
GO to Pinpoint Test Y
BCM
B11D9:17
Vehicle Battery:Circuit Voltage Above Threshold
GO to Pinpoint Test Z
BCM
U0100:87
Lost Communication With ECM/PCM "A":Missing Message
GO to Pinpoint Test A
BCM
U0121:87
Lost Communication With Anti-Lock Brake System (ABS) Control Module:Missing Message
GO to Pinpoint Test B
BCM
U0131:87
Lost Communication With Power Steering Control Module:Missing Message
GO to Pinpoint Test C
BCM
U0151:87
Lost Communication With Restraints Control Module:Missing Message
GO to Pinpoint Test D
BCM
U0155:87
Lost Communication With Instrument Panel Cluster (IPC) Control Module:Missing Message
GO to Pinpoint Test E
BCM
U0166:87
Lost Communication With Auxiliary Heater Control Module:Missing Message
GO to Pinpoint Test F
BCM
U0184:87
Lost Communication With Radio:Missing Message
GO to Pinpoint Test G
BCM
U0198:87
Lost Communication With Telematic Control Module: Missing Message
GO to Pinpoint Test H
BCM
U0199:87
Lost Communication With "Door Control Module A":Missing Message
GO to Pinpoint Test I
BCM
U019B:87
Lost Communication With Battery Charger Control Module:Missing Message
GO to Pinpoint Test J
BCM
U0200:87
Lost Communication With "Door Control Module B":Missing Message
GO to Pinpoint Test K
BCM
U0208:87
Lost Communication With "Seat Control Module A":Missing Message
GO to Pinpoint Test L
BCM
U0212:87
Lost Communication With Steering Column Control Module:Missing Message
GO to Pinpoint Test M
BCM
U0230:87
Lost Communication With Rear Gate Module:Missing Message
GO to Pinpoint Test N
BCM
U0232:87
Lost Communication With Side Obstacle Detection Control Module "A":Missing Message
GO to Pinpoint Test O
BCM
U0233:87
Lost Communication With Side Obstacle Detection Control Module "B":Missing Message
GO to Pinpoint Test P
BCM
U023A:87
Lost Communication With Image Processing Control Module A:Missing Message
GO to Pinpoint Test Q
BCM
U0252:87
Lost Communication With Lighting Control Module-Rear "B":Missing Message
GO to Pinpoint Test R
BCM
U0253:87
Lost Communication With Accessory Protocol Interface Module:Missing Message
GO to Pinpoint Test S
BCM
U0256:87
Lost Communication With Front Controls Interface Module "A":Missing Message
GO to Pinpoint Test T
BCM
U0293:87
Lost Communication With Hybrid/EV Powertrain Control Module "A":Missing Message
GO to Pinpoint Test U
BCM
U1000:00
Solid State Driver Protection Active:Driver Disabled: No Sub Type Information
GO to Pinpoint Test V
BCM
U2005:85
Vehicle Speed:Signal Above Allowable Range
GO to Pinpoint Test W
BCM
U2100:00
Initial Configuration Not Complete:No Sub Type Information
GO to Pinpoint Test X
BCM
U2101:00
Control Module Configuration Inomplete:No Sub Type Information
GO to Pinpoint Test X
BCM
U2200:00
Control Module Configuration Memory Corrupt:No Sub Type Information
GO to Pinpoint Test X
BCM
U3000:49
Control Module:Internal Electronic Failure
GO to Pinpoint Test AA
BCM
U3006:16
Control Module Input Power “A”:Circuit Voltage Below Threshold
GO to Pinpoint Test Y
BCM
U3006:17
Control Module Input Power “A”:Circuit Voltage Above Threshold
GO to Pinpoint Test Z
BCM
U3006:1C
Control Module Input Power “A”:Circuit Voltage Out of Range
GO to Pinpoint Test Y
BCM
U3006:1C
Control Module Input Power “A”:Circuit Voltage Out of Range
GO to Pinpoint Test Z
BCM
U3007:16
Control Module Input Power "B":Circuit Voltage Below Threshold
GO to Pinpoint Test Y
BCM
U3007:17
Control Module Input Power "B":Circuit Voltage Above Threshold
GO to Pinpoint Test Z
BCM
U3013:16
Control Module Input Power "C":Circuit Voltage Below Threshold
GO to Pinpoint Test Y
BCM
U3013:17
Control Module Input Power "C":Circuit Voltage Above Threshold
GO to Pinpoint Test Z
BCM
U3014:16
Control Module Input Power "D":Circuit Voltage Below Threshold
GO to Pinpoint Test Y
BCM
U3014:17
Control Module Input Power "D":Circuit Voltage Above Threshold
GO to Pinpoint Test Z
Symptom Chart
Symptom Chart: Multifunction Electronic Modules
Diagnostics in this manual assume a certain skill level and knowledge of Ford-specific diagnostic practices...
