Lincoln Aviator: Exterior Trim and Ornamentation / Removal and Installation - Front Fender Moulding
Removal
NOTE:
Removal steps in this procedure may contain installation details.
NOTE:
LH side shown, RH side similar.
-

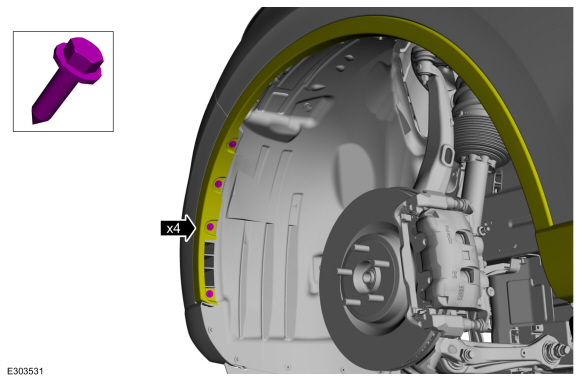

Remove the screws.
Torque:
22 lb.in (2.5 Nm)
-

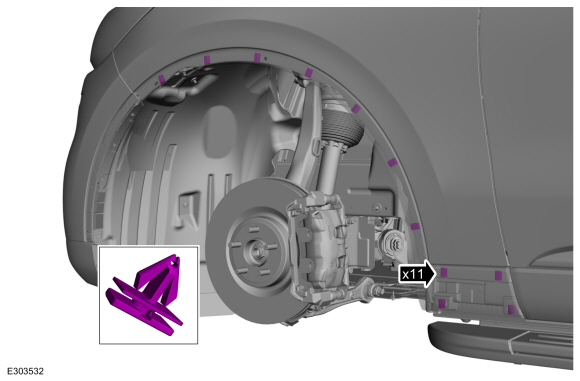

Using a non-marring trim tool, detach the retainer clips.
-

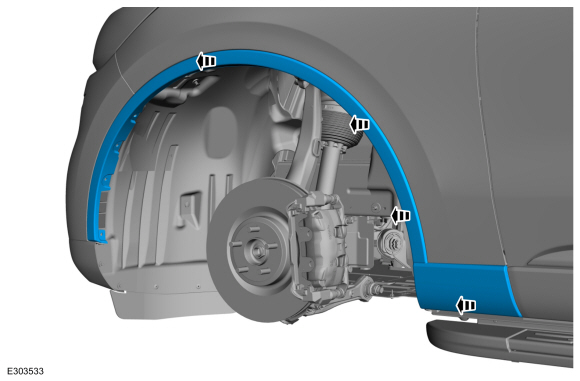

Remove the moulding.
Installation
-
To install, reverse the removal procedure.
Removal
NOTE:
Removal steps in this procedure may contain installation details.
NOTE:
LH side shown, RH similar.
All vehicles
Remove the upper belt moulding screw at front of the door...
