Lincoln Aviator: Front Seats / Removal and Installation - Front Seat Backrest Blower Motor

Removal

NOTE: Driver seat shown, passenger seat similar.

  1. Remove the front seat.
    Refer to: Front Seat (501-10A Front Seats, Removal and Installation).
  1. Remove the front seat backrest panel.
    Refer to: Front Seat Backrest Panel (501-10A Front Seats, Removal and Installation).

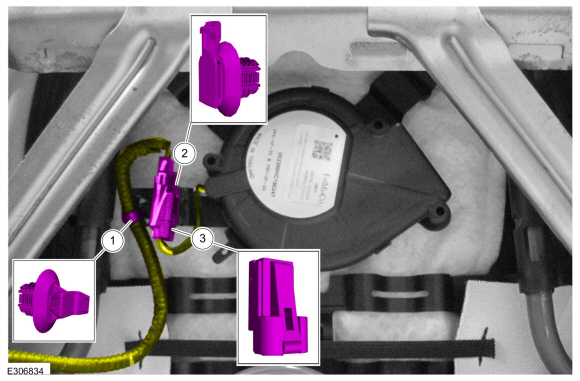

  1. Disconnect the front seat backrest blower motor electrical connector.
    1. Detach the retainer.
    1. Detach the retainer.
    1. Disconnect the electrical connector.

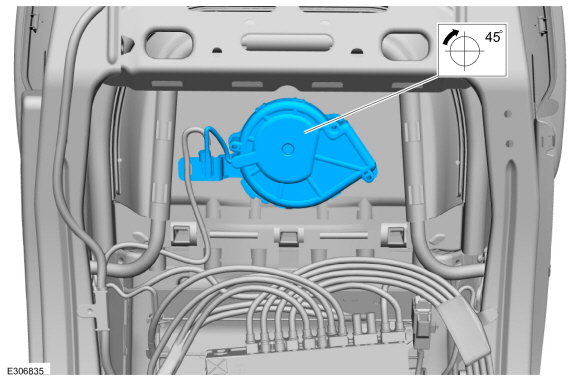

  1. Rotate the front seat backrest blower motor 45 degrees clockwise and remove.

Installation

  1. To install, reverse the removal procedure.
