Lincoln Aviator: Front Seats / Removal and Installation - Front Seat Backrest Cover - Vehicles Without: Multi-Contour Seats
Special Tool(s) /
General Equipment
Removal
NOTE:
Driver seat shown, passenger seat similar.
-
Remove the front seat.
Refer to: Front Seat (501-10A Front Seats, Removal and Installation).
-
Remove the front seat backrest panel.
Refer to: Front Seat Backrest Panel (501-10A Front Seats, Removal and Installation).
-
If equipped with heated/ventilated seats.
Remove the front seat backrest blower motor.
Refer to: Front Seat Backrest Blower Motor (501-10A Front Seats, Removal and Installation).
-
-

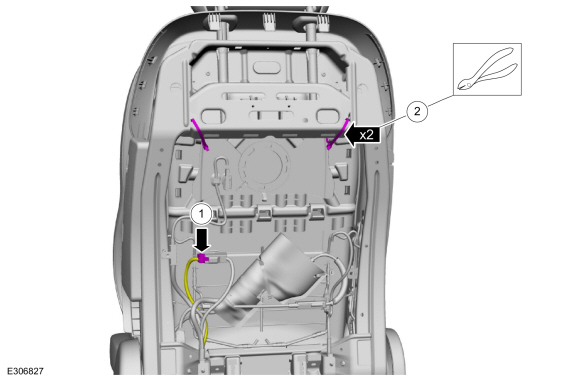

Disconnect the front seat backrest heater mat electrical connector.
-
Remove the front seat backrest cover carrier tie straps.
-

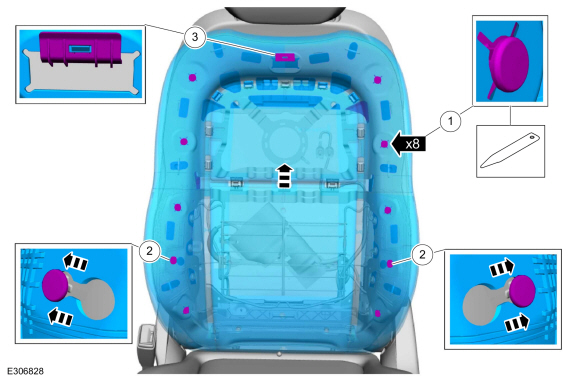

Remove the front seat backrest cover assembly.
-
Detach the front seat backrest assembly from the backrest module retainers.
Use the General Equipment: Interior Trim Remover
-
Position the front backrest assembly to release the retainers.
-
Lift the front seat backrest cover assembly up to release the upper retainer.
-
NOTE:
This step is only necessary when installing a new component.
If equipped with heated/ventilated seats.

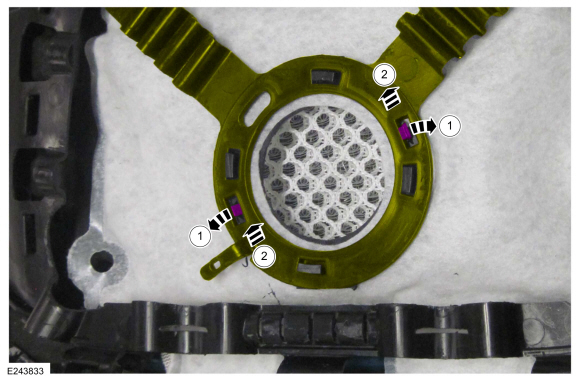

Detach the front seat backrest carrier from the vent bag.
-
Release the tabs.
-
Detach the front seat backrest carrier from the vent bag.
-
NOTE:
This step is only necessary when installing a new component.

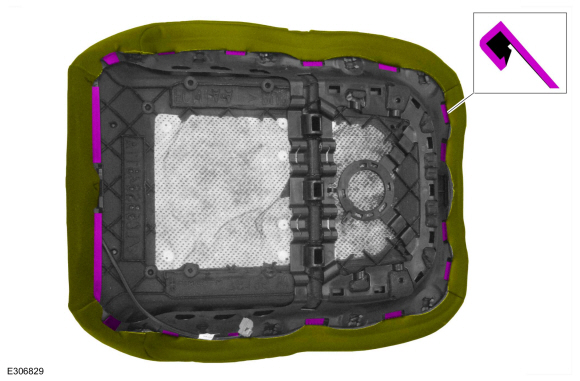

Detach the front seat backrest cover J-clips.
-
NOTE:
This step is only necessary when installing a new component.

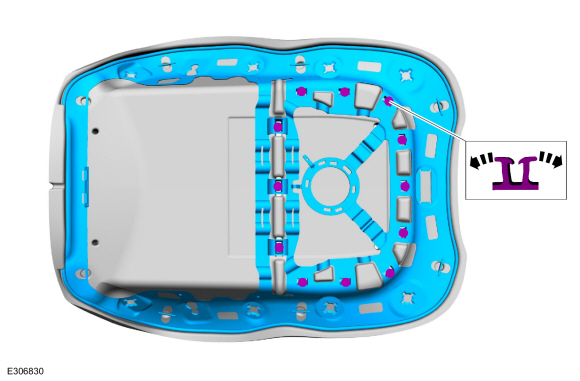

Release the hook-and-arrows and remove the front seat backrest cover carrier.
-
NOTICE:
Use care when separating the backrest cover from the
hook-and-loop strips or the hook-and-loop strips may be torn from the
backrest foam.
NOTE:
This step is only necessary when installing a new component.

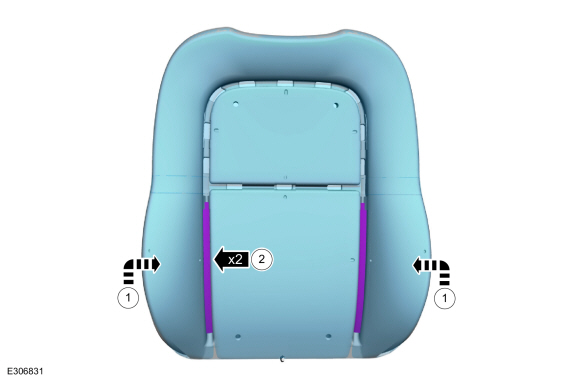

Remove the front seat backrest cover.
-
Invert the front seat backrest cover.
-
Release the hook-and-loop strips.
Installation
-
To install, reverse the removal procedure.
