Lincoln Aviator: Front Seats / Removal and Installation - Front Seat Backrest Cover - Vehicles With: Multi-Contour Seats
Special Tool(s) /
General Equipment
Removal
NOTE:
Driver seat shown, passenger seat similar.
-
Remove the front seat.
Refer to: Front Seat (501-10A Front Seats, Removal and Installation).
-
Remove the front seat backrest panel.
Refer to: Front Seat Backrest Panel (501-10A Front Seats, Removal and Installation).
-
Remove the front seat backrest blower motor.
Refer to: Front Seat Backrest Blower Motor (501-10A Front Seats, Removal and Installation).
-
-
Disconnect the front seat backrest heater mat electrical connector.
-
NOTE:
After disconnecting the hose and lock
assemblies, verify the black O-ring and white spacer remains with each
hose.
NOTE:
When connecting the hose and lock assemblies, an audible click must be heard for correct installation.

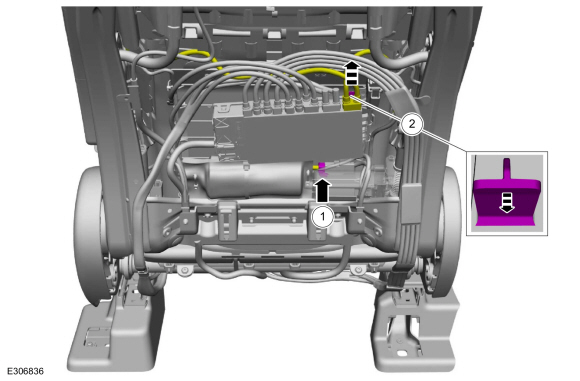

Release the locking tab and disconnect the hose and lock assembly from the SCMG.
-
-
On both sides.

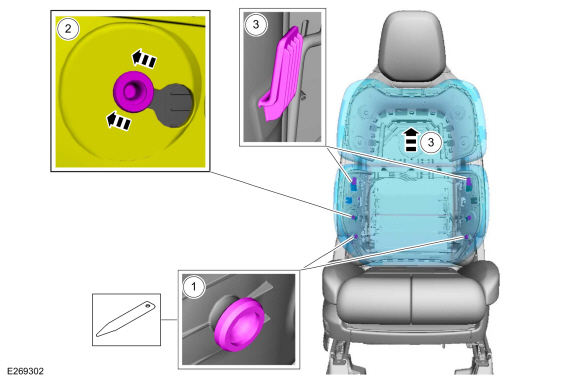

Detach the front seat backrest assembly from the backrest module retainers.
Use the General Equipment: Interior Trim Remover
-
On both sides.
Detach the front seat backrest assembly from the backrest module retainers.
Use the General Equipment: Interior Trim Remover
-

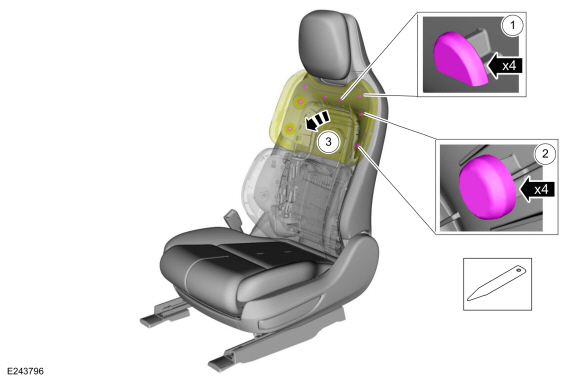

Position the upper portion of the front seat backrest down.
-
Remove the front seat backrest cover assembly.
-
Detach the front seat backrest assembly from the backrest module retainers.
Use the General Equipment: Interior Trim Remover
-
On both sides, position the front backrest assembly to release the retainers.
-
Slide the front seat backrest cover assembly up to release the retainers.
-
NOTE:
This step is only necessary when installing a new component or front seat backrest side bolster.

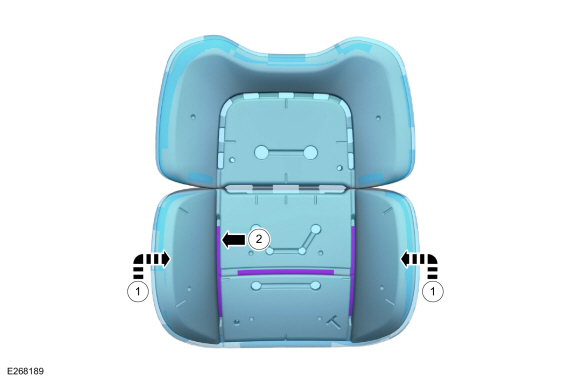

Detach the front seat backrest carrier from the vent bag.
-
Release the tabs.
-
Detach the front seat backrest carrier from the vent bag.
-
NOTE:
This step is only necessary when installing a new component or front seat backrest side bolster.

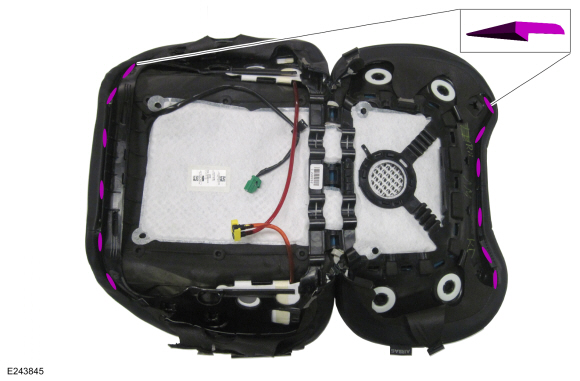

Detach the front seat backrest cover J-clips.
-
NOTE:
This step is only necessary when installing a new component or front seat backrest side bolster.

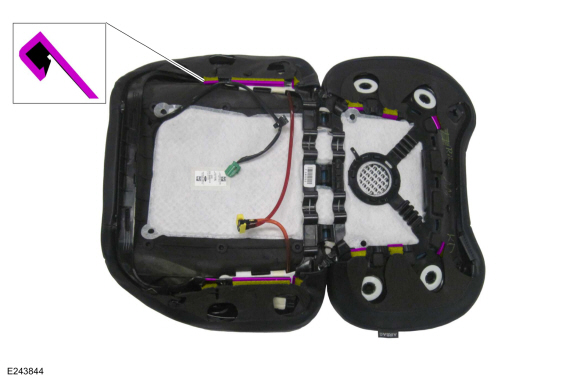

Release the front seat backrest cover tabs.
-
NOTE:
This step is only necessary when installing a new component or front seat backrest side bolster.

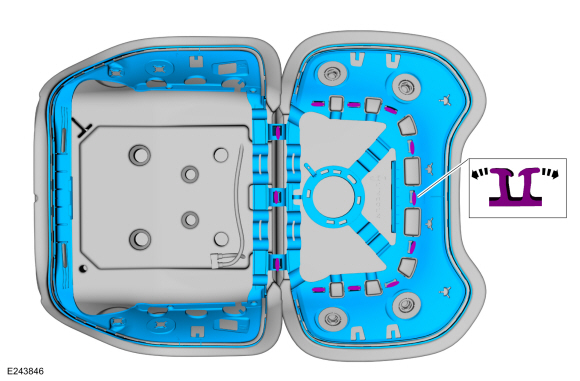

Release the hook-and-arrows and remove the front seat backrest cover carrier.
-
NOTICE:
Use care when separating the backrest cover from the
hook-and-loop strips or the hook-and-loop strips may be torn from the
backrest foam.
NOTE:
This step is only necessary when installing a new component.

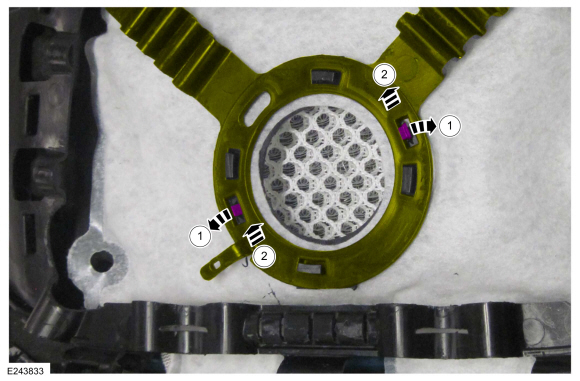

Remove the front seat backrest cover.
-
Invert the front seat backrest cover.
-
Release the hook-and-loop strips.
Installation
-
To install, reverse the removal procedure.
