Lincoln Aviator 2020-2022 Service Manual / Body and Paint / Body and Paint / Front Seats / Removal and Installation - Front Seat Control Switch

Lincoln Aviator: Front Seats / Removal and Installation - Front Seat Control Switch

Removal

NOTE: Driver side shown, passenger side similar.

  1. Remove the front door trim panel.
    Refer to: Front Door Trim Panel (501-05 Interior Trim and Ornamentation, Removal and Installation).

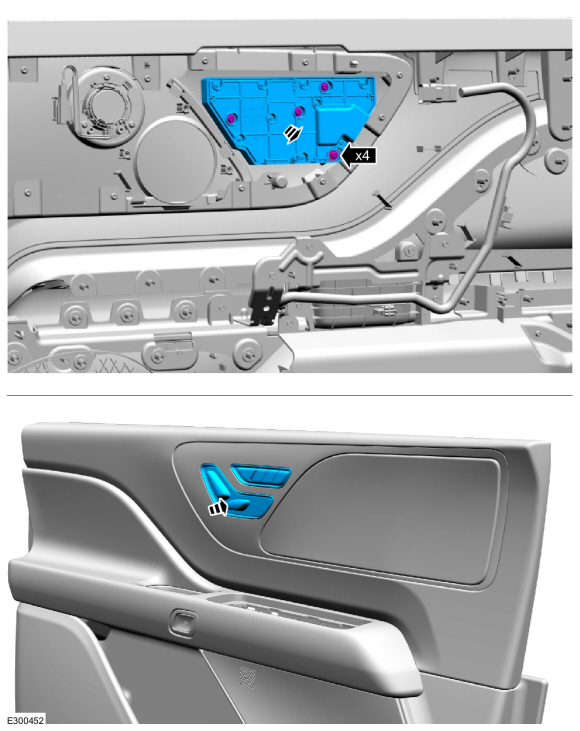

  1. Remove the screws and the front seat control switch.

Installation

  1. To install, reverse the removal procedure.
