Lincoln Aviator 2020-2026 Service Manual / Electrical / Instrumentation and Warning Systems / Parking Aid - Vehicles With: Parking Aid Camera / Removal and Installation - Rear Parking Aid Camera

Lincoln Aviator: Parking Aid - Vehicles With: Parking Aid Camera / Removal and Installation - Rear Parking Aid Camera

Removal

Remove the reversing lamp.
Refer to: Reversing Lamp (417-01 Exterior Lighting, Removal and Installation).

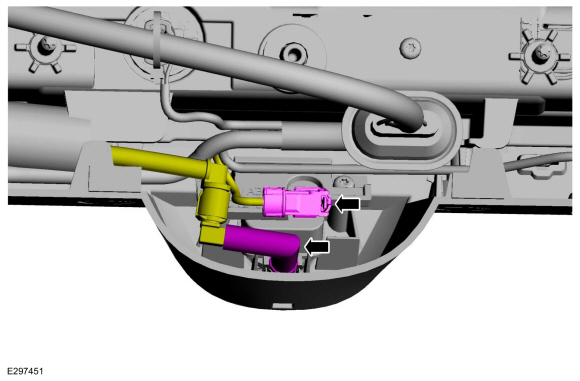

Disconnect the rear view camera washer hose and the rear view camera electrical connector.

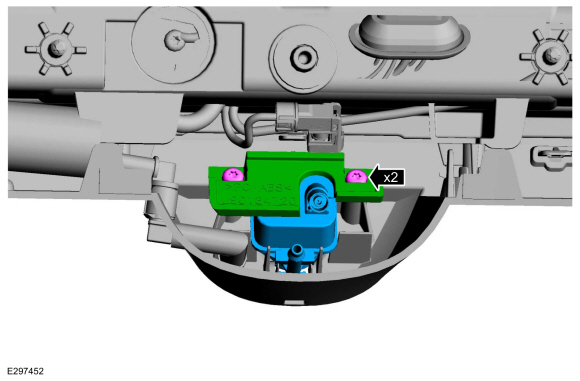

Remove the screw, the rear view camera bracket and the rear view camera/washer as an assembly.

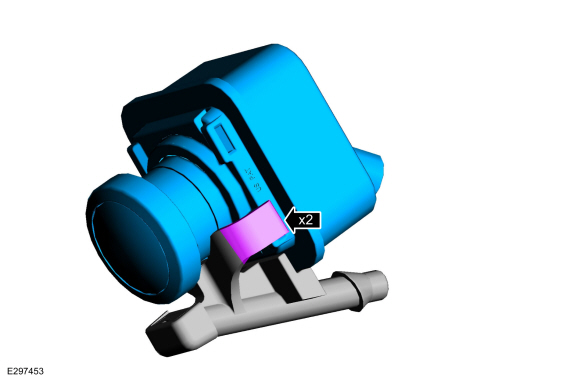

Release the tabs and remove the rear view camera from the washer nozzle.

Installation

To install reverse the removal procedure.

NOTE: Carry out the following step if installing a new rear view camera.
Initialize the camera.
Refer to: Parking Aid Camera Initialization (413-13B Parking Aid - Vehicles With: Parking Aid Camera, General Procedures).

Carry out the 360° camera alignment.
Refer to: 360 Degree View Camera Alignment (413-13B Parking Aid - Vehicles With: Parking Aid Camera, General Procedures).

Removal and Installation - Image Processing Module B (IPMB)

Removal NOTE: If installing a new IPMB, it is necessary to upload the module configuration information to the scan tool prior to removing the module...

Removal and Installation - Side Parking Aid Camera

Removal NOTE: Removal steps in this procedure may contain installation details. Position the upper inner corner of the exterior mirror glass in...
