Lincoln Aviator: Parking Aid - Vehicles With: Parking Aid Camera / Removal and Installation - Image Processing Module B (IPMB)

Removal

  1. NOTE: If installing a new IPMB, it is necessary to upload the module configuration information to the scan tool prior to removing the module. This information must be downloaded into the new IPMB after installation.

    Using a diagnostic scan tool, begin the PMI process for the IPMB following the onscreen instructions
  1. Remove the front scuff plate trim panel.
    Refer to: Front Scuff Plate Trim Panel (501-05 Interior Trim and Ornamentation, Removal and Installation).

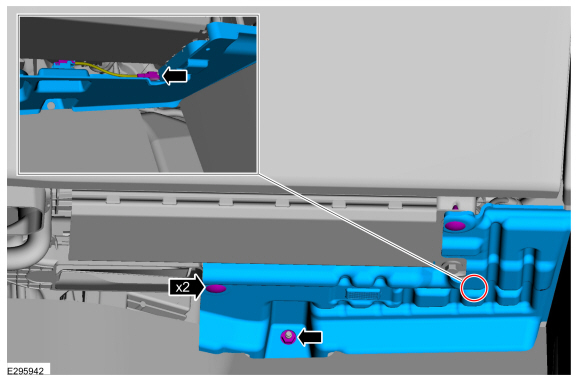

  1. Remove the retainers disconnect the electrical connector and remove the RH hush panel.

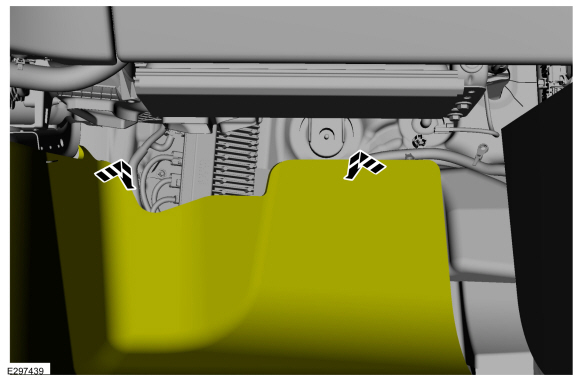

  1. Position the carpet for access.
  1. Separate the wiring harness guides.

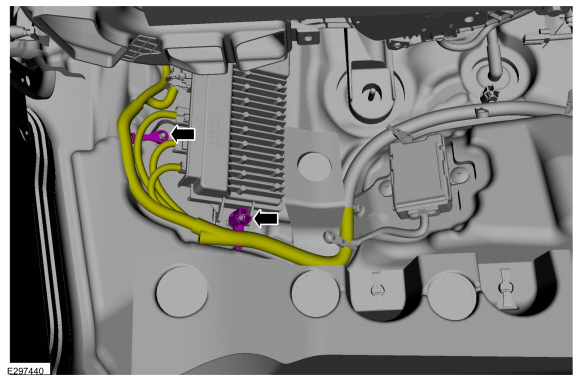

  1. Remove the lower nut, loosen the upper nut and position the IPMB.

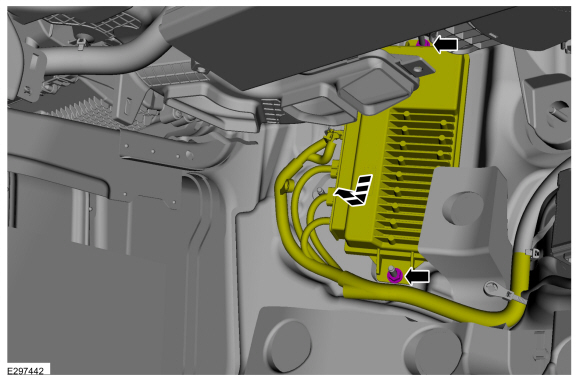

  1. Disconnect the electrical connectors and remove the IPMB.

Installation

  1. To install, reverse the removal procedure.
  1. NOTE: This step is only necessary when installing a new component.

    Using a diagnostic scan tool, complete the PMI process for the IPMB following the onscreen instructions.
  1. Carry out the 360 degree view camera alignment.
    Refer to: 360 Degree View Camera Alignment (413-13B) .
