Lincoln Aviator 2020-2025 Service Manual / Body and Paint / Body and Paint / Handles, Locks, Latches and Entry Systems / Removal and Installation - Hood Latch Release Cable

Lincoln Aviator: Handles, Locks, Latches and Entry Systems / Removal and Installation - Hood Latch Release Cable

Removal

Front Cable

Remove the hood latch.
Refer to: Hood Latch (501-14 Handles, Locks, Latches and Entry Systems, Removal and Installation).

NOTE: This step is only necessary when installing a new component.

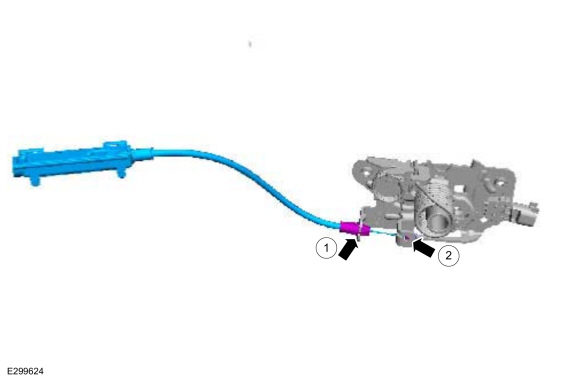

Disconnect the hood latch release cable from the hood latch.
1. Detach the cable from the mounting bracket.
1. Disconnect the hood latch release cable end.

Rear Cable

On LH side.
Remove the front scuff plate trim panel.
Refer to: Front Scuff Plate Trim Panel (501-05 Interior Trim and Ornamentation, Removal and Installation).

Remove the hood latch release and disconnect the rear hood latch release cable.

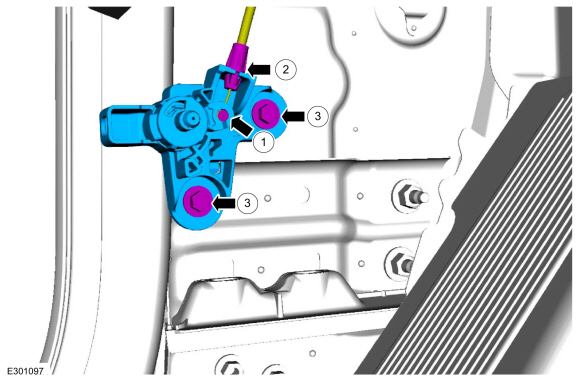

1. Remove the bolts.
1. Release the rear hood latch release cable from the mounting bracket.
1. Disconnect the rear hood latch release cable eyelet and remove the hood latch release.

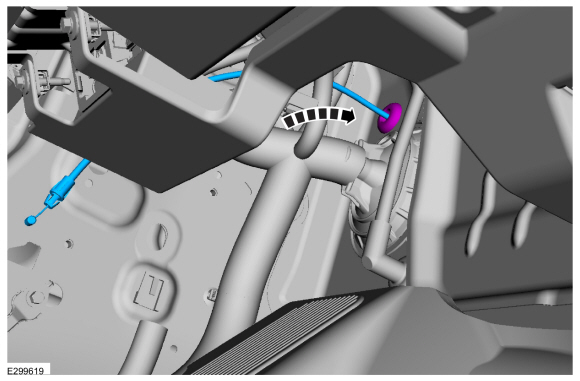

Route the rear hood latch release cable through the cowl.

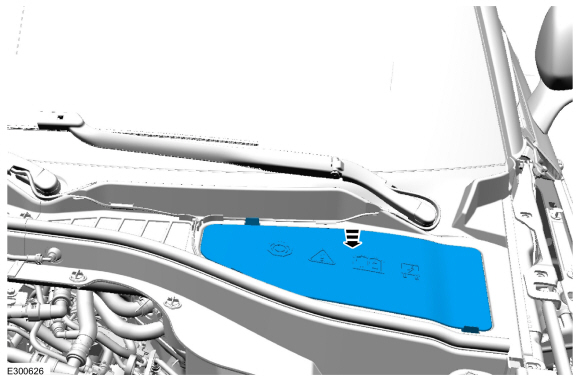

Remove the cowl access panel.

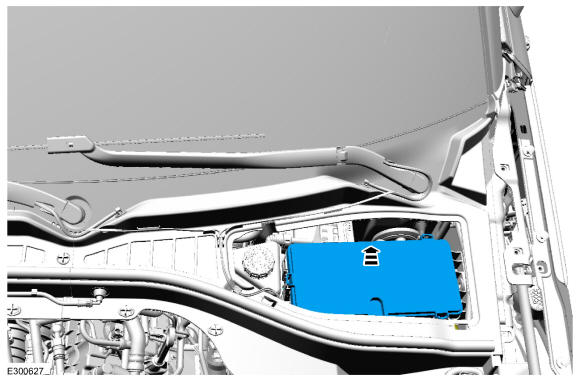

Remove the BJB cover.

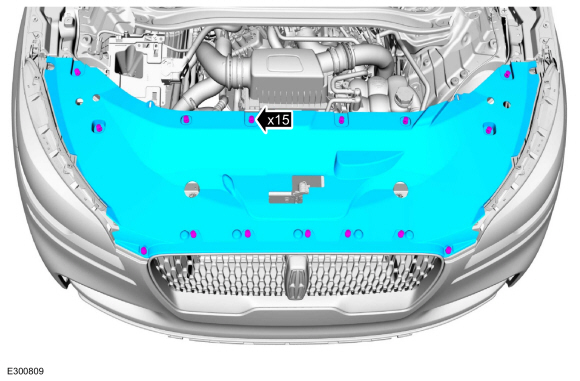

Remove the pin-type retainers and the radiator sight shield.

NOTE: TheBJB shown removed for clarity.

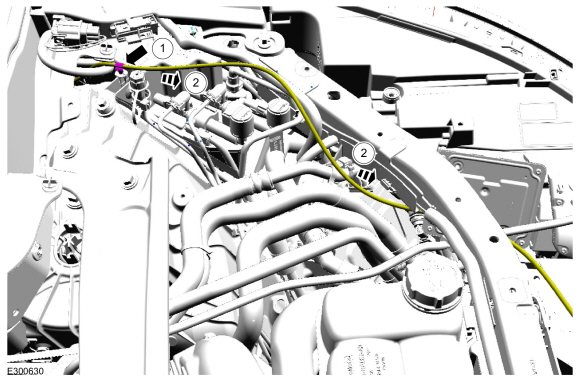

Route the rear hood latch release cable through the engine compartment.

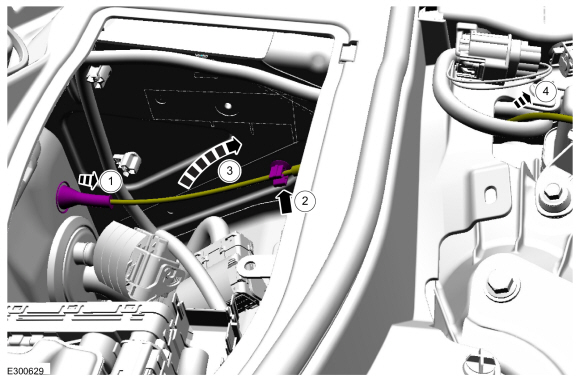

1. Route the rear hood latch release cable grommet through the cowl.

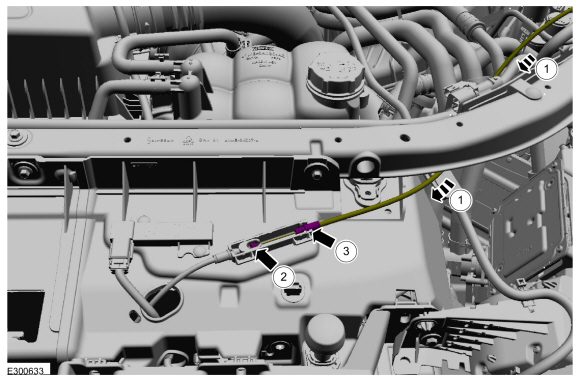

1. Release the rear hood latch release cable routing clip.
1. Route the rear hood latch release cable through the engine compartment.
1. Route the rear hood latch release cable through the engine compartment.

Route the rear hood latch release cable through the engine compartment.
1. Release the rear hood latch release cable routing clip.
1. Route the rear hood latch release cable through the engine compartment.

Open the hood latch release cable junction block cover.

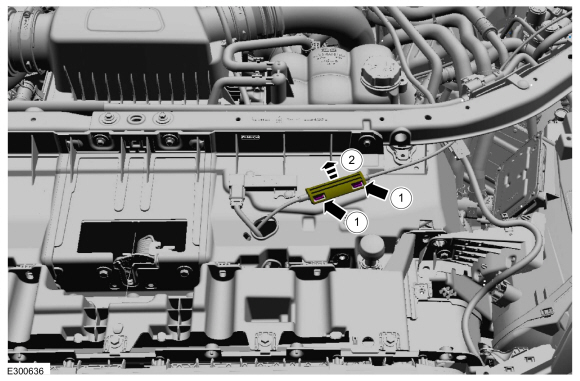

1. Release the clips on the hood latch release cable junction block cover.
1. Open the hood latch release cable junction block cover.

Remove the rear hood latch release cable.
1. Detach the cable from the mounting bracket.
1. Disconnect the rear hood latch release cable end.
1. Remove the rear hood latch release cable.

Installation

Rear Cable

NOTE: This step is only necessary if reusing the original hood latch release cable.

Install the hood latch release and connect the rear hood latch release cable.
1. Connect the rear hood latch release cable eyelet.
1. Attach the rear hood latch release cable to the mounting bracket.
1. Install the bolts.
  Torque: 80 lb.in (9 Nm)

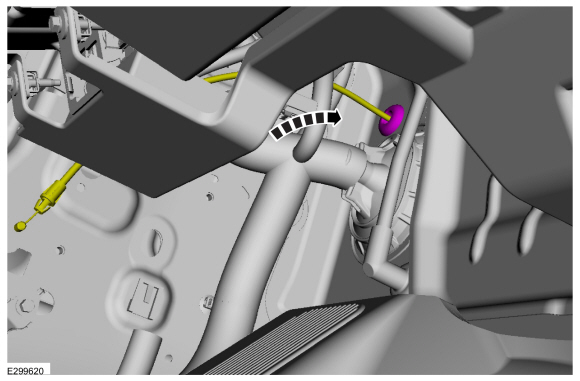

Route the rear hood latch release cable through the cowl.

NOTE: TheBJB shown removed for clarity.

Route the rear hood latch release cable through the engine compartment.
1. Route the rear hood latch release cable grommet through the cowl.
1. Connect the rear hood latch release cable routing clip.
1. Route the rear hood latch release cable through the engine compartment.
1. Route the rear hood latch release cable through the engine compartment.

Route the rear hood latch release cable through the engine compartment.
1. Connect the rear hood latch release cable routing clip.
1. Route the rear hood latch release cable through the engine compartment.

Route and connect the rear hood latch release cable.
1. Route the rear hood latch release cable.
1. Connect the rear hood latch release cable end to the hood latch release cable junction block.
1. Attach the cable to the mounting bracket.

Close the hood latch release cable junction block cover.
1. Close the hood latch release cable junction block cover.
1. Secure the clips on the hood latch release cable junction block cover.

Install the radiator sight shield and the pin-type retainers.

Install the BJB cover.

Install the cowl access panel.

On LH side.
Install the front scuff plate trim panel.
Refer to: Front Scuff Plate Trim Panel (501-05 Interior Trim and Ornamentation, Removal and Installation).

Front Cable

NOTE: This step is only necessary when installing a new component.

Connect the hood latch release cable to the hood latch.
1. Connect the hood latch release cable end.
1. Attach the cable to the mounting bracket.

Install the hood latch.
Refer to: Hood Latch (501-14 Handles, Locks, Latches and Entry Systems, Removal and Installation).

Removal and Installation - Hood Latch

Removal NOTE: Removal steps in this procedure may contain installation details. Remove the pin-type retainers and the radiator sight shield...

Removal and Installation - Hood Latch Release Handle

Removal Remove the hood latch release handle. Rotate the hood latch release handle. NOTE: Do not remove the retaining clip from the hood latch release handle...
