Lincoln Aviator: Steering Column / Removal and Installation - Steering Column Opening Seal
Removal
NOTE:
Removal steps in this procedure may contain installation details.
-
Remove the steering column upper shaft.
Refer to: Steering Column Upper Shaft (211-04 Steering Column, Removal and Installation).
-
Remove the cowl panel.
Refer to: Cowl Panel (501-02 Front End Body Panels, Removal and Installation).
NOTE:
Note the position of the components before removal.
-

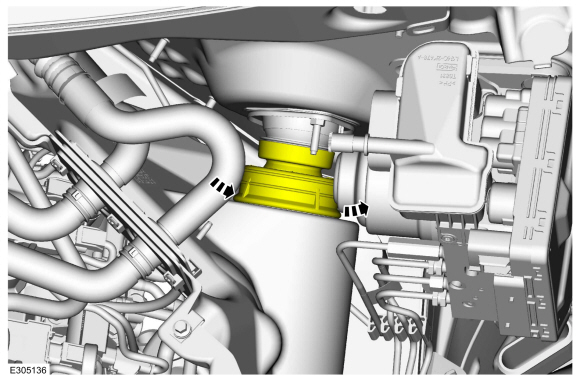

Push the cone into the rubber boot.
-

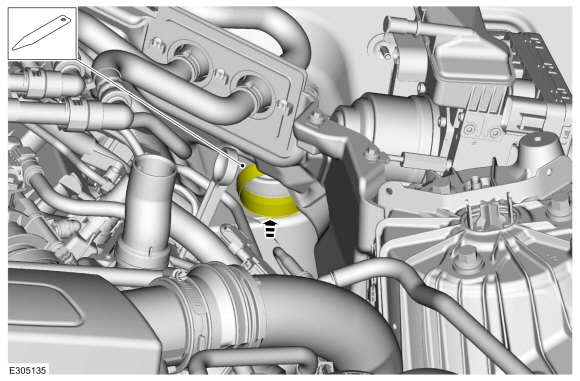

Move the rubber boot aside to gain access to the steering column opening seal retainers.
-
NOTE:
Use a 1/4 inch drive wobble extension.

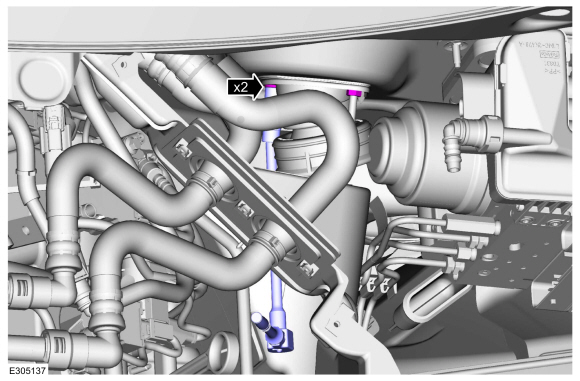

Remove the steering column opening seal retainers.
Torque:
106 lb.in (12 Nm)
-
-

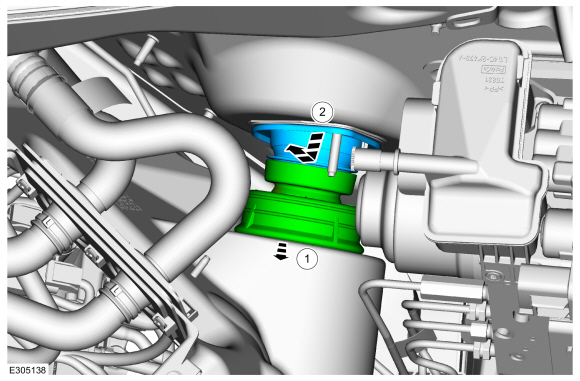

Remove the rubber boot.
-
Remove the steering column opening seal.
Installation
-
To install, reverse the removal procedure.
