Lincoln Aviator: Information and Entertainment System - General Information / Removal and Installation - SYNC Module [APIM] to Universal Serial Bus (USB) Port Cable
Special Tool(s) /
General Equipment
Removal
NOTE:
Removal steps in this procedure may contain installation details.
Instrument panel universal serial bus (USB) cable
-
Remove the floor console.
Refer to: Floor Console (501-12 Instrument Panel and Console, Removal and Installation).
-

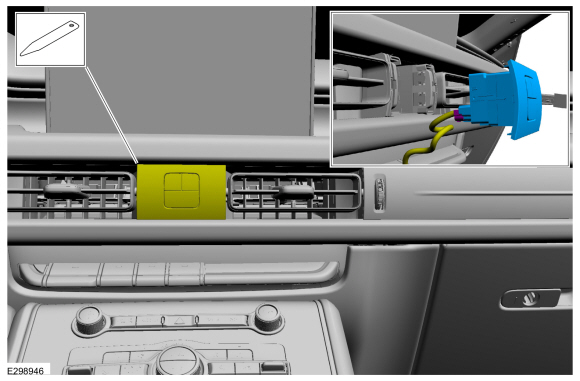

Position the park aid switch out, disconnect the
electrical connector and remove the park aid switch assembly.
Use the General Equipment: Interior Trim Remover
-

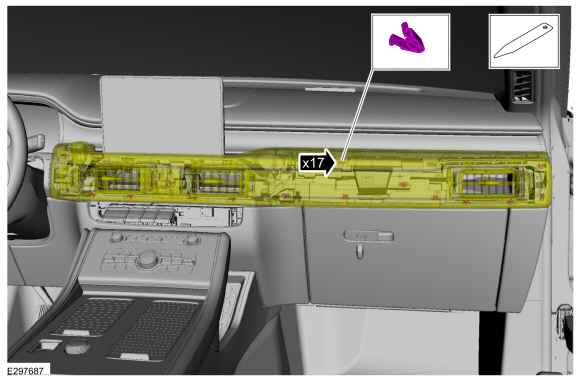

Release the clips and remove the RH center trim panel.
Use the General Equipment: Interior Trim Remover
-

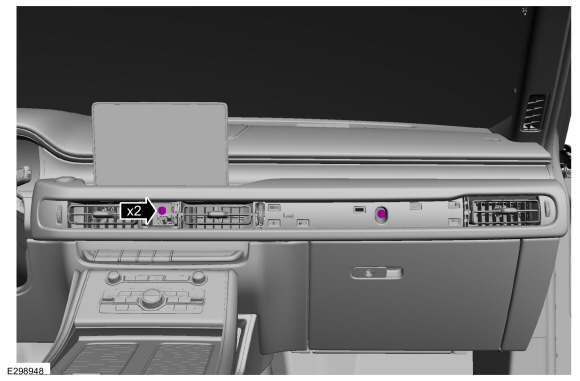

Remove the screws
-

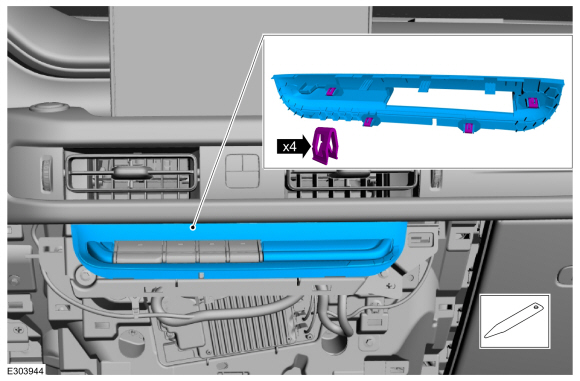

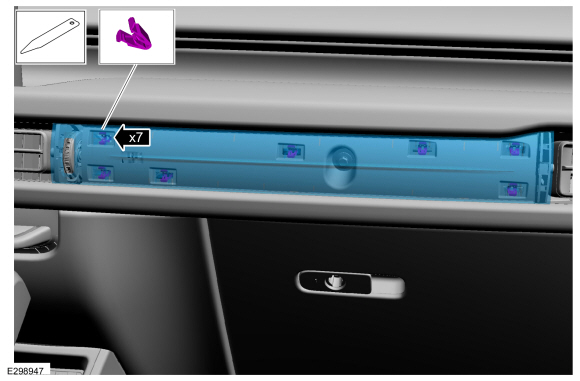

Release the clips and position the center instrument panel trim forward.
Use the General Equipment: Interior Trim Remover
-
Disconnect the electrical connector and remove the center instrument panel trim.
-
Remove the floor console.
Refer to: Floor Console (501-12 Instrument Panel and Console, Removal and Installation).
-

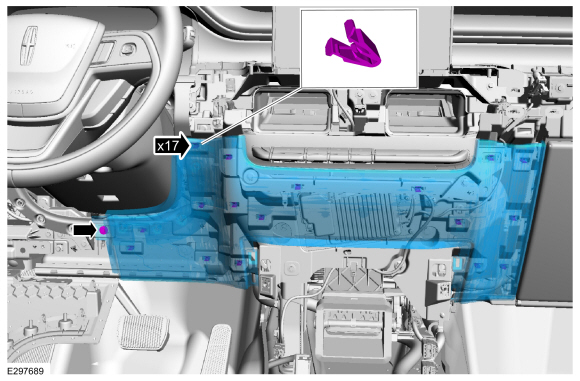

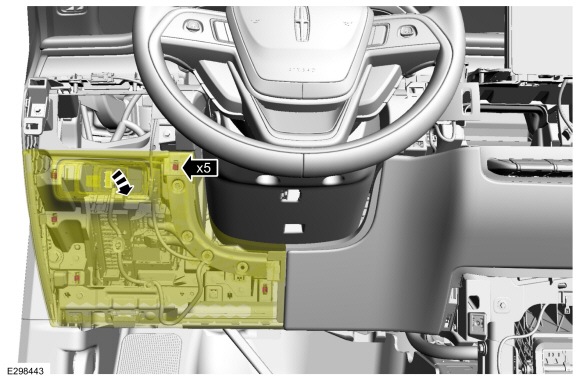

Release the clips and position down the LH instrument panel steering column trim panel.
-
Remove the screw, release the clips and remove the lower center instrument panel trim panel.
-
Release the clips and remove the TRCM bezel.
Use the General Equipment: Interior Trim Remover
-

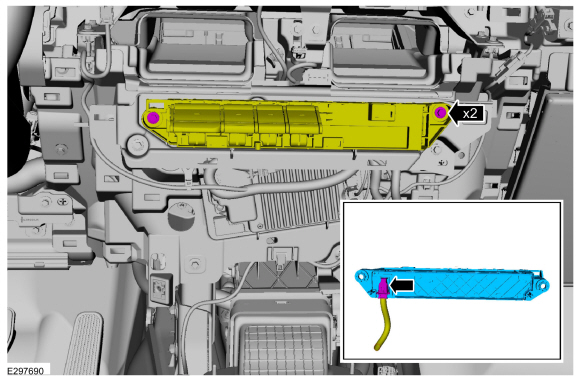

Remove the screws, disconnect the electrical connector and remove the TRCM.
-

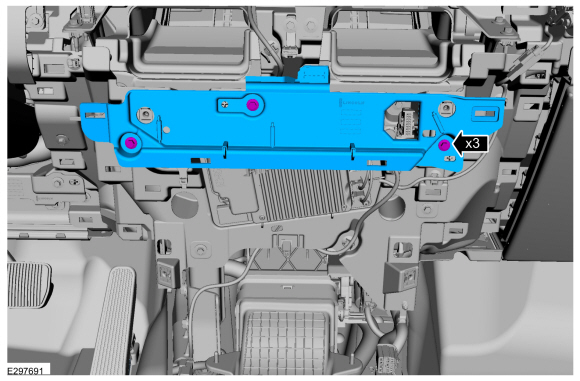

Remove the screws and the center instrument panel bracket.
Torque:
53 lb.in (6 Nm)
-

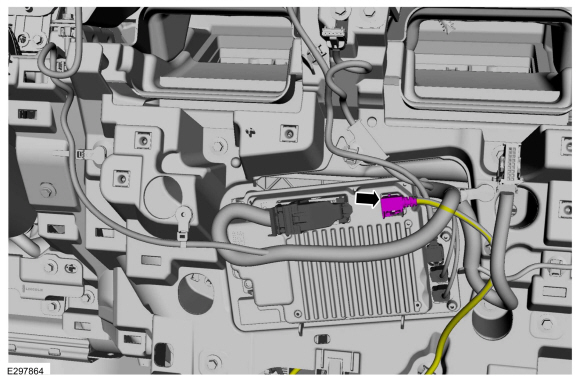

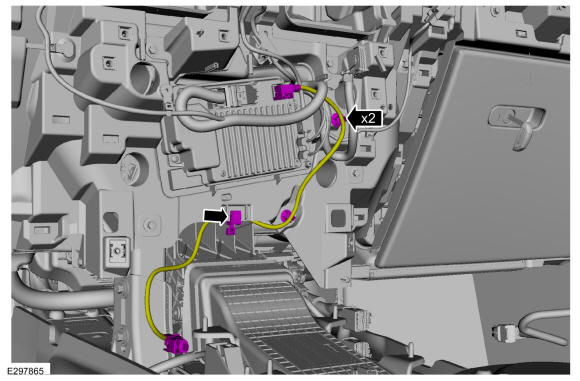

Disconnect the USB cable connector.
-
Separate the cable guides and remove the instrument panel USB
Floor console universal serial bus (USB) cable
-
Remove the media hub.
Refer to: Media Hub (415-00 Information and Entertainment System - General Information, Removal and Installation).
-

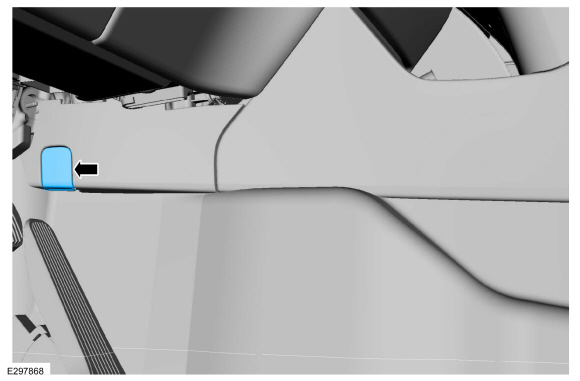

Remove the LH floor console front bolt cover.
-

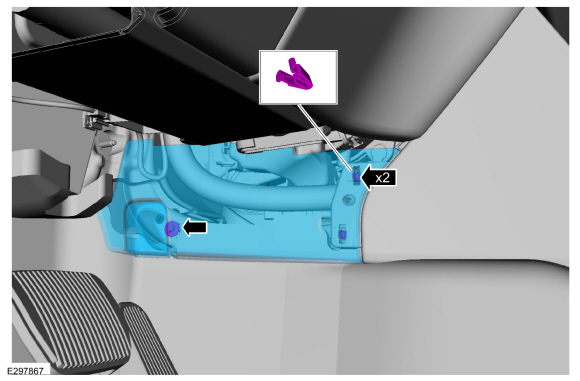

Remove the bolt, release the clips and remove the LH floor console front trim panel
Torque:
71 lb.in (8 Nm)
-

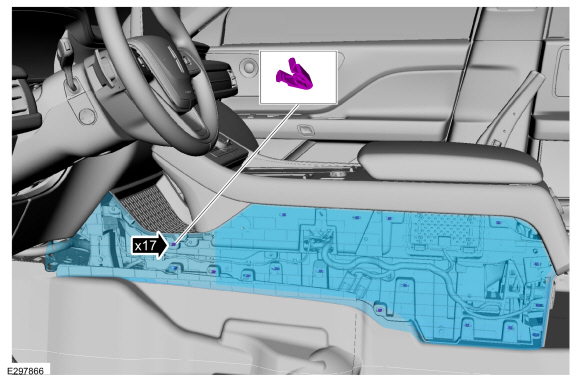

Release the clips and remove the LH floor console side trim panel.
-

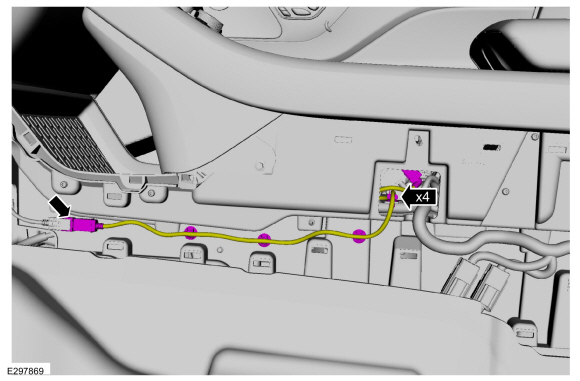

Disconnect the electrical connector, release the wiring guides and remove the floor console USB cable.
Installation
-
To install, reverse the removal procedure.
Special Tool(s) /
General Equipment
Interior Trim Remover
Removal
NOTE:
Removal steps in this procedure may contain installation details...
Removal
NOTE:
Removal steps in this procedure may contain installation details.
NOTE:
If installing a new module, it is necessary to
upload the module configuration information to the scan tool prior to
removing the module...
