Lincoln Aviator: Wipers and Washers / Removal and Installation - Windshield Wiper Pivot Arm
Special Tool(s) /
General Equipment
Removal
NOTE:
RH shown, LH similar.
NOTE:
The hood is removed in this step for clarity.
-

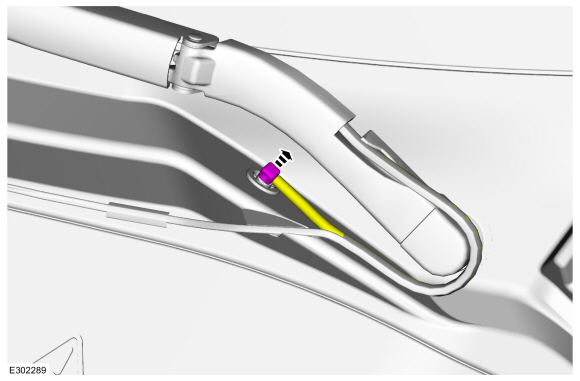

Disconnect the washer hose elbow connector from the grommet.
-
If equipped with heated wiper blades.

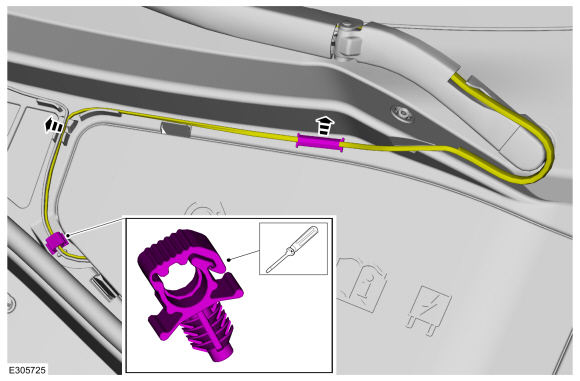

Unclip the heated wiper blade electrical wire harness from the cowl panel grille.
-
If equipped with heated wiper blades.

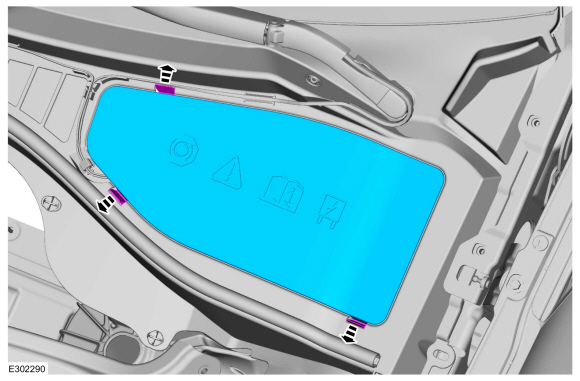

Remove the LH access panel.
-
If equipped with heated wiper blades.

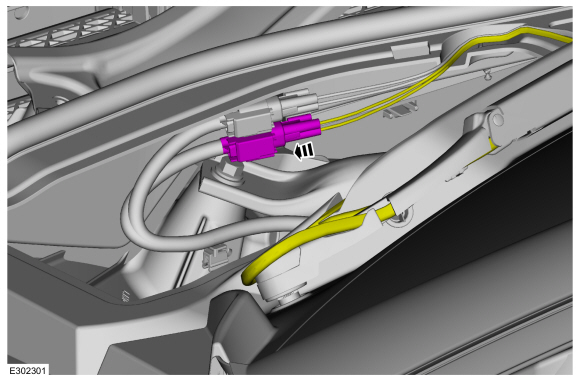

Disconnect the heated wiper blade electrical connector and position aside the wire harness.
-

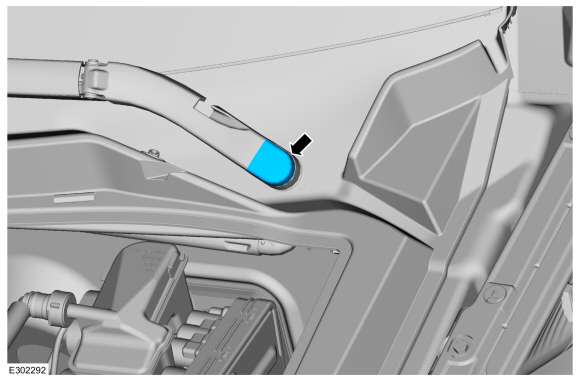

Remove the windshield wiper pivot arm nut cover.
-

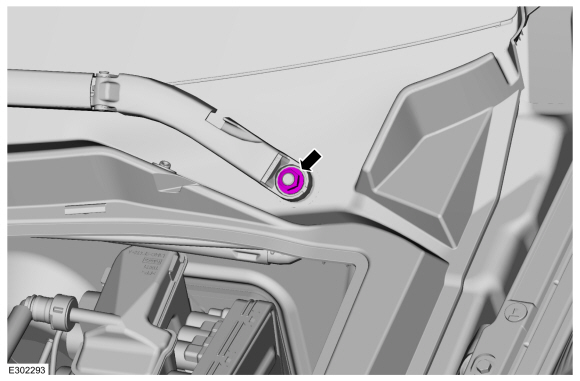

Remove the windshield wiper pivot arm nut.
-

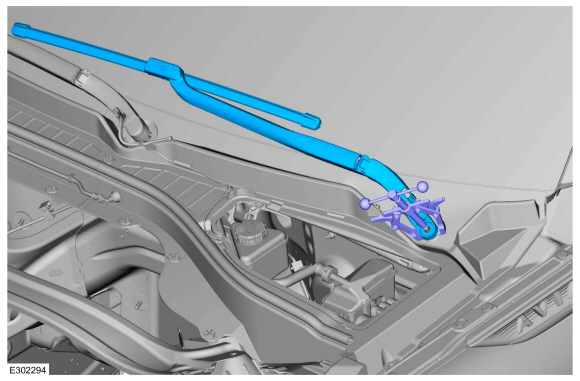

Remove the wiper pivot arm.
Use the General Equipment: Two Leg Puller
Installation
-
Verify the windshield wiper motor is in the PARK position.
-

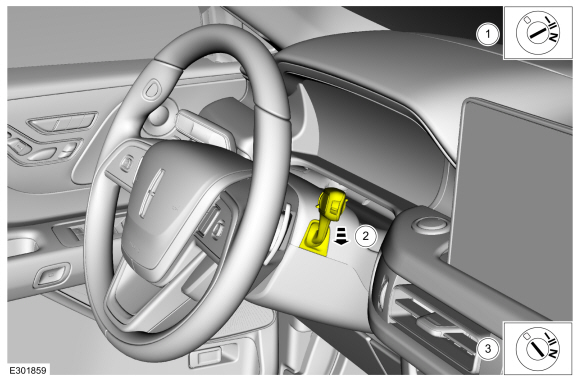

Turn the ignition ON.
-
Pull the switch down to cycle the windshield wiper motor.
-
Turn the ignition OFF.
-
Install the wiper pivot arm.
-

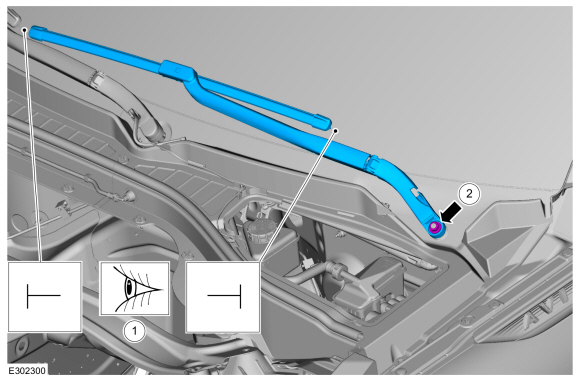

Align the wiper blade with the marks on the windshield.
-
Install the wiper pivot arm nut.
Torque:
22 lb.ft (30 Nm)
-
Install the windshield wiper pivot arm nut cover.
-
If equipped with heated wiper blades.
Connect the heated wiper blade electrical connector and position the wire harness.
-
If equipped with heated wiper blades.
Install the LH access panel.
-
If equipped with heated wiper blades.

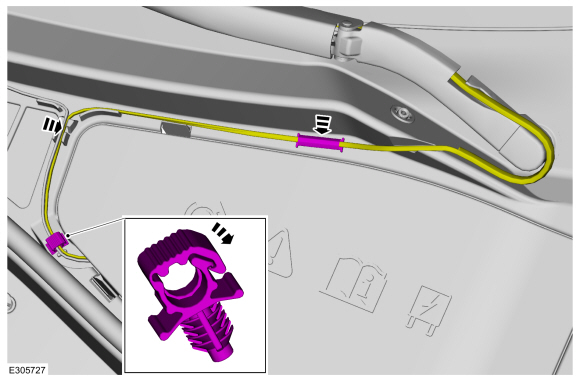

Clip the heated wiper blade electrical wire harness to the cowl panel grille.
-
Connect the washer hose elbow connector to the grommet.
Removal
NOTE:
Removal steps in this procedure may contain installation details.
Remove the wiper linkage assembly.
Refer to: Wiper Linkage Assembly (501-16 Wipers and Washers, Removal and Installation)...
Removal
NOTE:
Removal steps in this procedure may contain installation details.
NOTE:
The hood is removed in this procedure for clarity.
Remove the cowl panel grille...
