Lincoln Aviator: Engine System - General Information / General Procedures - Crankshaft Main Bearing Journal Clearance
Check
NOTE:
Refer to the appropriate Section 303-01 for the specification.
-
NOTE:
Crankshaft main bearing journals must be within specifications before checking journal clearance.

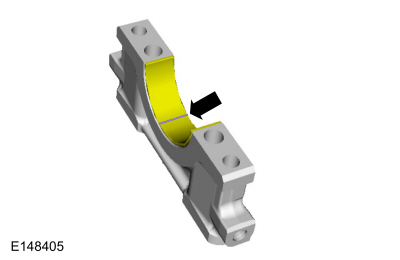

Remove the crankshaft main bearing cap and crankshaft main bearing.
-

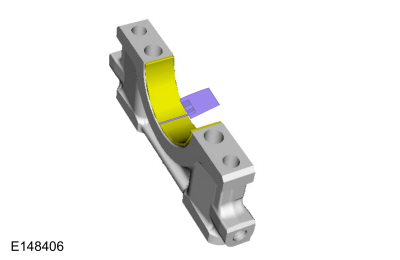

Position a piece of Plastigage across the crankshaft main bearing surface.
-
NOTE:
Do not turn the crankshaft while carrying out this procedure.
Install and tighten to specifications, then remove the crankshaft main bearing cap.
-
Measure the Plastigage to get the crankshaft main
bearing clearance. The Plastigage should be smooth and flat. A changing
width indicates a tapered or damaged crankshaft or crankshaft bearing.
Check
NOTE:
Refer to the appropriate Section 303-01 for the specification.
NOTE:
The crankshaft connecting rod journals must be
within specifications to check the connecting rod bearing journal
clearance...
