Lincoln Aviator 2020-2023 Service Manual / Body and Paint / Body and Paint / Glass, Frames and Mechanisms / Description and Operation - Glass, Frames and Mechanisms - System Operation and Component Description

Lincoln Aviator: Glass, Frames and Mechanisms / Description and Operation - Glass, Frames and Mechanisms - System Operation and Component Description

System Operation

System Diagram - Power Windows

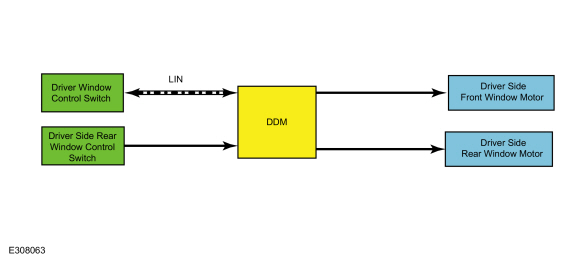

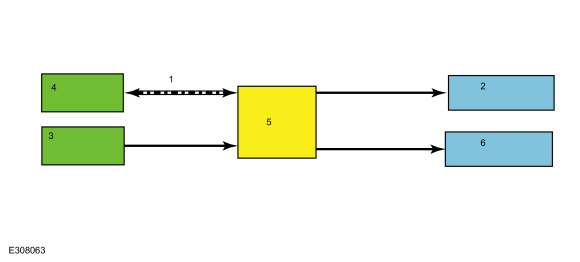

Driver Side Power Windows


Item Description
1 LIN
2 Driver Side Front Window Motor
3 Driver Side Rear Window Control Switch
4 Driver Window Control Switch
5 DDM
6 Driver Side Rear Window Motor

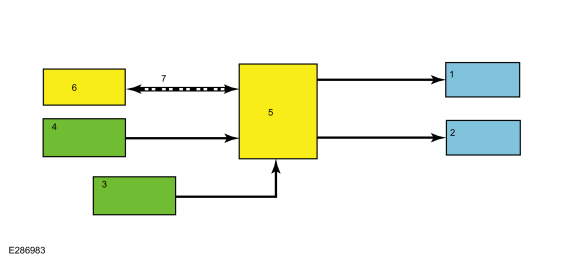

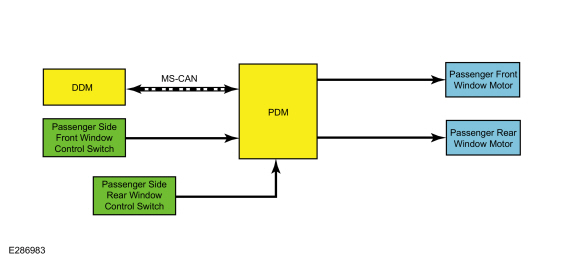

Passenger Side Power Windows


Item Description
1 Passenger Front Window Motor
2 Passenger Rear Window Motor
3 Passenger Side Rear Window Control Switch
4 Passenger Side Front Window Control Switch
5 PDM
6 DDM
7 MS-CAN

Network Message Chart - Power Windows

  Passenger Door Module (PDM) Network Input Messages


Broadcast Message Originating Module Message Purpose
Passenger window command   DDM When activating the passenger front or rear windows from the driver window control switch, the passenger window command is sent from the DDM to the PDM.
Rear window disable command   DDM When the lock out switch (located in the driver window control switch) is in the LOCK position, the DDM sends this command to the PDM to disable the passenger rear window from operating from the rear passenger window control switches.

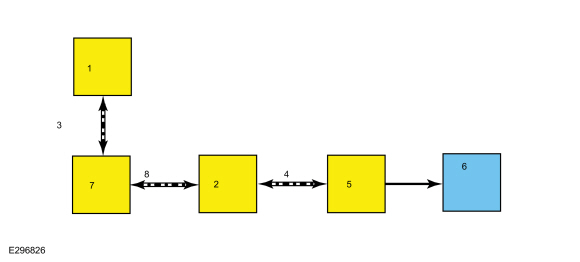

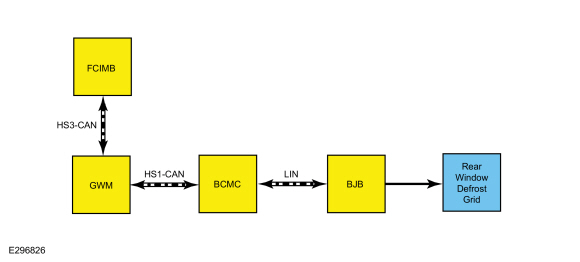

System Diagram - Rear Window Defrost


Item Description
1 FCIMB
2 BCMC
3 HS3-CAN
4 LIN
5 BJB
6 Rear Window Defrost Grid
7 GWM
8 HS1-CAN

Network Message Chart - Rear Window Defrost

  BCMC Network Input Messages


Broadcast Message Originating Module Message Purpose
Rear window defrost request   FCIMB When the BCMC receives the rear window defrost request message, the BCMC sends a rear window defrost request message through a LIN to the BJB, which then activates the rear window defrost system.

Delayed Accessory Power

Voltage is supplied to the power window system by the accessory delay relay, located in BCM. The accessory delay relay is integral to the BCM and cannot be serviced separately. The BCM activates the accessory delay relay whenever the ignition is on, or whenever the ignition is changed from on to off while the LH and RH front doors are closed.

The BCM deactivates the accessory delay relay when:

  • the LH or RH front door is ajar and the ignition is off.
  • ten minutes have elapsed since the ignition status has changed from ON to the OFF position.

Front Power Window Operation

NOTE: If the battery is disconnected while the window is moving, the one-touch up and one-touch down feature (and obstacle detection) is disabled prior to initialization.


Refer to: Power Door Window Initialization (501-11 Glass, Frames and Mechanisms, General Procedures).

The power windows operate when the accessory delay relay is active. Both front windows are equipped with obstacle detection and one-touch up and one-touch down functionality. If an obstacle has been detected in the window opening as the window glass is moving upward, the window regulator motor automatically reverses direction and moves the window glass downward.

Driver Side Front Window Operation

The driver window control switch communicates to the DDM through a private LIN. When commanded by the driver window control switch, the DDM supplies power and ground to operate the driver front window in the desired direction. The DDM monitors fluctuations of the motor current (ripple count for DC motors) to determine the window glass position.

Passenger Side Front Window Operation

The driver window control switch communicates to the DDM through a private LIN. The DDM communicates to the PDM through the MS-CAN. When commanded by the driver window control switch or the passenger front window control switch, the PDM supplies power and ground to operate the passenger side front window in the desired direction. The PDM monitors fluctuations of the motor current (ripple count for DC motors) to determine the window glass position.

Rear Power Window Operation

NOTE: If the battery is disconnected while the window is moving, the one-touch up and one-touch down feature (and obstacle detection) is disabled prior to initialization.


Refer to: Information and Entertainment System - Component Location (415-00 Information and Entertainment System - General Information, Description and Operation).

The rear power windows operate when the accessory delay relay is active. Both rear windows are equipped with obstacle detection and one-touch up and one-touch down functionality. If an obstacle has been detected in the window opening as the window glass is moving upward, the window motor automatically reverses direction and moves the glass downward.

Driver Side Rear Window Operation

The driver window control switch communicates to the DDM through a private LIN. The rear door window control switch is wired directly to the DDM. When commanded by the driver window control switch or the rear window control switch, the DDM supplies power and ground to operate the driver side rear window in the desired direction. The DDM monitors fluctuations of the motor current (ripple count for DC motors) to determine the window glass position.

Passenger Side Rear Window Operation

The driver window control switch communicates to the DDM through a private LIN. The DDM communicates to the PDM through the MS-CAN. The rear door window control switch is wired directly to the PDM. When commanded by the driver window control switch or the rear window control switch, the PDM supplies power and ground to operate the passenger side rear window in the desired direction. The PDM monitors fluctuations of the motor current (ripple count for DC motors) to determine the window glass position.

Rear Passenger Windows Lock Out

When the lock out switch (part of the driver window control switch) is in the LOCK position, the rear passenger power windows only operate from the driver window control switch. When the lock out switch (part of the driver window control switch) is in the LOCK position, the rear passenger power windows only operate from the driver window control switch.

Rear Window Defrost

The rear window defrost system only operates when the engine is running. When the rear window defrost switch (intregal to the FCIMB) is activated, the FCIMB module sends the request message to the BCMC. The BCMC sends the request through a LIN to the BJB, activating the rear window defrost relay (integral to the BJB). When the rear window defrost relay is activated, the rear window defrost grid(s) are energized. In some cases, the rear window defrost system may automatically activate as an extra load for accelerated engine warm-up. However the rear window defrost status LED remains off unless the rear window defrost switch is activated.

The BCMC deactivates the rear window defrost relay when any of these conditions is met:

  • The rear window defrost switch is pressed when the feature is active.
  • Ignition state is changed from on to off.
  • A predetermined timer completes.
  • Battery voltage has dropped below a specified threshold (load management strategy).

Component Description

Component Description

Driver Window Control Switch

The driver window control switch receives voltage whenever the accessory delay relay is active. The driver window control switch communicates to the DDM through a private LIN.

Front Passenger Door Window Control Switch

The front passenger window control switch contains momentary contacts (one for each window switch direction). The PDM provides a return (ground) for the front passenger window control switch. When the control switch is activated, a ground signal is supplied to the PDM to operate the window motor in the desired direction.

Rear Door Window Control Switch

Each of the rear door window control switches contains momentary contacts (one for each window switch direction). The DDM or PDM provides a return (ground) for the rear window control switch. When the control switch is activated, a ground signal is supplied to the DDM or PDM to operate the window motor in the desired direction.

Window Regulator Motor

The window regulator motor(s) are bi-directional. Window direction is determined by the polarity of the voltage being supplied to the motor from the associated door module.

Driver Door Module (DDM)

The DDM receives power window commands from the driver window control switch and the driver side rear door window control switch. The DDM supplies voltage and ground to operate the driver side front and rear power window regulator motors.

The DDM also communicates driver window control switch requests to the PDM through the MS-CAN. PMI is required whenever installing a new module.

Passenger Door Module (PDM)

The PDM receives power window commands from the passenger front door window control switch or from the DDM through the MS-CAN. The PDM supplies voltage and ground to operate the passenger front and rear power window regulator motors. PMI is required whenever installing a new module.

BCM

The BCM controls the accessory delay relay. PMI is required whenever installing a new module.

BCMC

When a rear window defrost request message is sent to the BCMC, the BCMC sends a request to the BJB through a LIN to activate the rear window defrost system. PMI is required whenever installing a new module.

FCIMB

The FCIMB module contains the rear window defrost switch. PMI is required whenever installing a new module.
