Lincoln Aviator: Automatic Transmission - 10-Speed Automatic Transmission – 10R60 / Diagnosis and Testing - Low One-Way Clutch Assembly
Low One Way Clutch
For low one way clutch operation,
REFER to: Low One-Way Clutch Assembly (307-01A Automatic Transmission - 10-Speed Automatic Transmission – 10R60, Description and Operation).
NOTICE:
Do not clean with water or with water-based solvents. Damage to the component may occur..
Remove

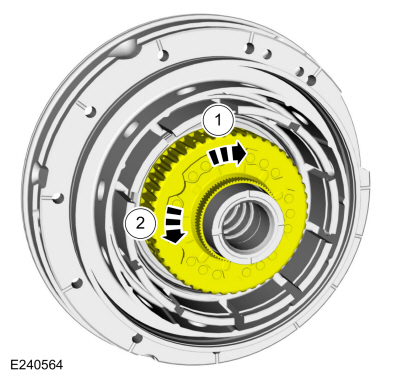

and inspect the low one way clutch for cracks and damaged splines. The
splined section should lock in the direction of the number 1 arrow and
rotate freely and smoothly when rotated in the direction of the number 2
arrow. Check for burned or excessively worn surfaces. If any damage is
found or the clutch does not rotate or lock, install a new low one-way
clutch and front support and race assembly.
.jpg)
Symptom Chart
F Clutch
For F clutch operation, REFER to: F Clutch (307-01A Automatic Transmission - 10-Speed Automatic Transmission – 10R60, Description and Operation)...
Symptom Chart
Torque Converter Clutch (TCC)
For torque converter operation, REFER to: Torque Converter (307-01A Automatic Transmission - 10-Speed Automatic Transmission – 10R60, Description and Operation)...
