Preliminary Inspection

  1. Road test the vehicle.
    • If any suspension alignment or ride height concerns are present, REFER to Symptom Chart: Suspension System.
    • Verify the customer concern by carrying out a road test on a smooth road. If any vibrations are present, REFER to Symptom Chart: NVH.
  1. Inspect the tires.
    • Check the tire pressures with all normal loads in the vehicle and the tires cold. REFER to the VC label.
    • Verify that all tires are sized to specification. REFER to the VC label.
    • Inspect the tires for incorrect wear and damage. INSTALL new tires as necessary.
  1. Inspect the chassis and underbody.
    • Remove any excessive accumulation of mud, dirt or road deposits from the chassis and underbody.
    • Front or rear suspension components.
    • Suspension fastener(s).
    • Incorrect spring usage Spring(s).
    • Shock absorber(s).
    • Strut(s).
    • Suspension bushing(s).
    • Steering system components.
    • Wheel bearing and wheel hub(s).
  1. Inspect for aftermarket equipment.
    • Check for aftermarket changes to the steering, suspension, and wheel and tire components (such as competition or heavy duty). The specifications shown in this manual do not apply to vehicles equipped with aftermarket equipment.

Symptom Chart: Suspension System

Diagnostics in this manual assume a certain skill level and knowledge of Ford-specific diagnostic practices.
REFER to: Diagnostic Methods (100-00 General Information, Description and Operation).

Condition Possible Sources Actions
Vehicle drifts/pulls Refer to the Diagnostic Routine. REFER to the symptom chart.
   Click here to access Guided Routine (EPAS). Internet Explorer version 11 or greater is required to perform this Pinpoint Test.
Wander Overloaded, unevenly or incorrectly loaded vehicle NOTIFY the customer of incorrect vehicle loading.

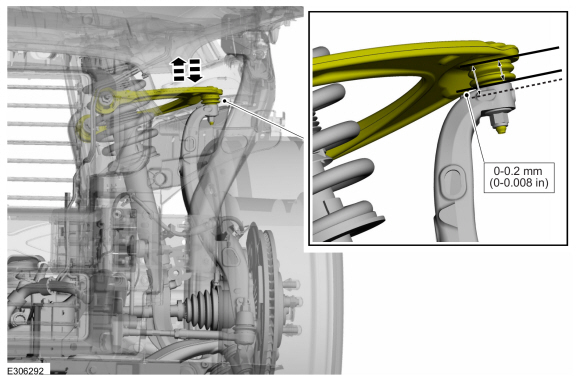

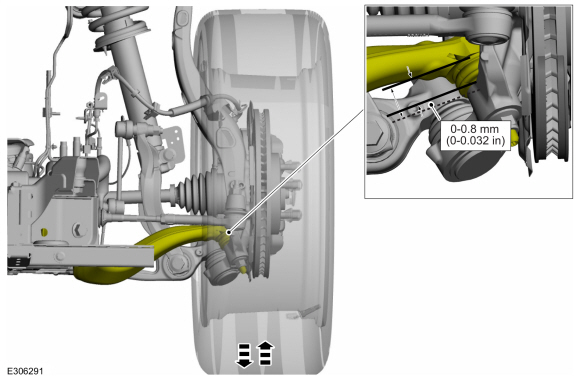

Ball joint(s) CARRY OUT a ball joint inspection.
REFER to: Suspension System (204-00 Suspension System - General Information, Diagnosis and Testing).
INSTALL new control arm(s) as necessary. REFER to: Front Lower Arm (204-01A Front Suspension - RWD, Removal and Installation).
REFER to: Front Lower Arm (204-01B Front Suspension - AWD, Removal and Installation).
Damaged or missing front strut mount bearing(s) INSTALL a new front strut mount bearing(s) as necessary.
Loose, worn or damaged front wheel bearing(s) INSPECT the wheel bearings. INSTALL new wheel bearings as necessary.
REFER to: Front Wheel Bearing and Wheel Hub (204-01A Front Suspension - RWD, Removal and Installation).
REFER to: Front Wheel Bearing and Wheel Hub (204-01B Front Suspension - AWD, Removal and Installation).
Loose, worn or damaged suspension component(s) INSTALL new suspension component(s) as necessary.
Loose suspension fasteners

NOTE: Do not lubricate fasteners.

INSPECT the suspension fasteners. TIGHTEN to specifications.
Steering components INSPECT the steering system. INSTALL new components as necessary.
Wheel alignment (excessive total front toe out) ADJUST as necessary.
REFER to: Front Toe Adjustment (204-00 Suspension System - General Information, General Procedures).
REFER to: Front Toe Adjustment - Vehicles With: Adaptive Steering (204-00 Suspension System - General Information, General Procedures).
REFER to: Rear Toe Adjustment (204-00 Suspension System - General Information, General Procedures).
Front bottoming or riding low Worn, damaged or incorrect springs MEASURE the ride height.
REFER to: Ride Height Measurement (204-00 Suspension System - General Information, General Procedures).
INSTALL new springs as necessary.
Worn front strut(s) INSTALL new struts as necessary.
Abnormal/incorrect tire wear Incorrect tire pressure (rapid center rib or inner and outer edge wear) ADJUST the tire pressure. REFER to VC label.
Incorrect tire rotation intervals REFER to Owners Literature for correct tire rotation intervals.
  • High-speed cornering
  • Excessive front or rear toe (inner or outer edge wear)
  • Excessive negative or positive camber (inner or outer edge wear)

REFER to: Wheels and Tires (204-04A Wheels and Tires, Diagnosis and Testing).
Front or rear suspension components INSPECT the front and rear suspension system. REPAIR or INSTALL new suspension components as necessary.
Sticky steering, poor returnability Damaged or worn front strut mount bearing(s) INSTALL a new front strut mount bearing(s) as necessary.
Binding ball joints CARRY OUT a ball joint inspection.
REFER to: Suspension System (204-00 Suspension System - General Information, Diagnosis and Testing).
INSTALL new ball joint(s) as necessary. REFER to: Front Lower Arm (204-01A Front Suspension - RWD, Removal and Installation).
REFER to: Front Lower Arm (204-01B Front Suspension - AWD, Removal and Installation).
Steering components INSPECT the steering system. INSTALL new components as necessary.
REFER to: Power Steering (211-02 Power Steering, Diagnosis and Testing).
REFER to: Adaptive Steering (211-02 Power Steering, Diagnosis and Testing).
Steering wheel off-center Unequal front toe setting (side-to-side) CHECK the wheel alignment.
REFER to: Front Toe Adjustment (204-00 Suspension System - General Information, General Procedures).
REFER to: Front Toe Adjustment - Vehicles With: Adaptive Steering (204-00 Suspension System - General Information, General Procedures).
REFER to: Rear Toe Adjustment (204-00 Suspension System - General Information, General Procedures).
Steering components INSPECT the steering system. INSTALL new components as necessary
REFER to: Power Steering (211-02 Power Steering, Diagnosis and Testing).
REFER to: Adaptive Steering (211-02 Power Steering, Diagnosis and Testing).
Sway or roll Overloaded, unevenly or incorrectly loaded vehicle NOTIFY the customer of incorrect vehicle loading.
Loose wheel nut(s) TIGHTEN the wheel nut(s) to specification.
REFER to: Wheel and Tire (204-04A Wheels and Tires, Removal and Installation).
Strut(s) or shock absorber(s) INSTALL new struts or shock absorbers as necessary. REFER to: Rear Shock Absorber (204-02 Rear Suspension, Removal and Installation).
Loose stabilizer bracket-to-frame bolts TIGHTEN the bolts to specification.
REFER to: Suspension System (204-00 Suspension System - General Information, Diagnosis and Testing).
REFER to: Suspension System (204-00 Suspension System - General Information, Diagnosis and Testing).
Worn stabilizer bar bushings or links INSTALL new stabilizer bar bushings or links as necessary.
REFER to: Front Stabilizer Bar (204-01A Front Suspension - RWD, Removal and Installation).
REFER to: Front Stabilizer Bar (204-01B Front Suspension - AWD, Removal and Installation).
REFER to: Front Stabilizer Bar Link (204-01A Front Suspension - RWD, Removal and Installation).
REFER to: Front Stabilizer Bar Link (204-01B Front Suspension - AWD, Removal and Installation).
Damaged or broken stabilizer bar INSTALL a new stabilizer bar as necessary.
REFER to: Front Stabilizer Bar (204-01A Front Suspension - RWD, Removal and Installation).
REFER to: Front Stabilizer Bar (204-01B Front Suspension - AWD, Removal and Installation).
Worn spring(s) INSTALL new springs as necessary.INSTALL new struts or shock absorbers as necessary. REFER to: Spring (204-02 Rear Suspension, Removal and Installation).
Vehicle leans to one side Unevenly loaded or overloaded vehicle NOTIFY the customer of incorrect vehicle loading.
Front or rear suspension components INSPECT the front and rear suspension systems. INSTALL new suspension components as necessary.
Incorrect drive axle(s) ride height. Side-to-side lean out of specification MEASURE the ride height.
REFER to: Ride Height Measurement (204-00 Suspension System - General Information, General Procedures).
INSPECT the front and rear suspension systems. REPAIR or INSTALL new components as necessary
  • If an obvious cause for an observed or reported condition is found, correct the cause (if possible) before proceeding to the next step.
  • If the fault is not visually evident, REFER to Symptom Chart or REFER to Symptom Chart: NVH.

Symptom Chart: NVH

Diagnostics in this manual assume a certain skill level and knowledge of Ford-specific diagnostic practices.
REFER to: Diagnostic Methods (100-00 General Information, Description and Operation).

NVH symptoms should be identified using the diagnostic tools that are available. For a list of these tools, an explanation of their uses and a glossary of common terms, Glossary of Terms
REFER to: Noise, Vibration and Harshness (NVH) (100-04 Noise, Vibration and Harshness, Diagnosis and Testing).
Since it is possible any one of multiple systems may be the cause of a symptom, it may be necessary to use a process of elimination type of diagnostic approach to pinpoint the responsible system. If this is not the causal system for the symptom, REFER to: Noise, Vibration and Harshness (NVH) (100-04 Noise, Vibration and Harshness, Diagnosis and Testing).
for the next likely system and continue diagnosis.

Additional diagnostics may be necessary to further isolate the concern. An electronic listening tool such as Chassis Ear® may be used. Follow the tool manufacturer’s instructions and the Possible Sources found in the following NVH chart to determine the connection points.

Condition Possible Sources Actions
Front suspension noise — a squeak, creak or rattle noise. Occurs mostly over bumps or rough roads due to the suspension moving in an up/down motion. Strut top nut INSPECT and TIGHTEN to specification.
Jounce bumper INSPECT, LUBRICATE or INSTALL new components as necessary.
Stabilizer bar insulators and/or Stabilizer bar links INSPECT for out-of-position bushings, isolators or locating pins. INSTALL new components as necessary.
REFER to: Front Stabilizer Bar (204-01A Front Suspension - RWD, Removal and Installation).
REFER to: Front Stabilizer Bar (204-01B Front Suspension - AWD, Removal and Installation).
REFER to: Front Stabilizer Bar Link (204-01A Front Suspension - RWD, Removal and Installation).
REFER to: Front Stabilizer Bar Link (204-01B Front Suspension - AWD, Removal and Installation).
Steering gear and/or Tie rod ends INSPECT the steering gear and tie rod ends. INSTALL new components as necessary.
REFER to: Power Steering (211-02 Power Steering, Diagnosis and Testing).
REFER to: Adaptive Steering (211-02 Power Steering, Diagnosis and Testing).
Front brake caliper INSPECT the front brake caliper(s).
REFER to: Brake System (206-00 Brake System - General Information, Diagnosis and Testing).
Lower control arm / ball joint CARRY OUT a ball joint inspection.
REFER to: Suspension System (204-00 Suspension System - General Information, Diagnosis and Testing).
INSTALL new lower ball joints as necessary. REFER to: Front Lower Arm (204-01A Front Suspension - RWD, Removal and Installation).
REFER to: Front Lower Arm (204-01B Front Suspension - AWD, Removal and Installation).
Hub INSPECT hub(s). REPAIR or REPLACE as necessary.
REFER to: Front Wheel Bearing and Wheel Hub (204-01A Front Suspension - RWD, Removal and Installation).
REFER to: Front Wheel Bearing and Wheel Hub (204-01B Front Suspension - AWD, Removal and Installation).
Exhaust system INSPECT the exhaust system.
REFER to: Exhaust System (309-00B Exhaust System - 3.0L EcoBoost – Hybrid (BQ), Diagnosis and Testing).
Powertrain mounts INSPECT the powertrain mounts.
REFER to: Engine (303-01A Engine - 3.0L EcoBoost, Diagnosis and Testing).
Rear suspension noise — a squeak, creak or rattle noise. Occurs mostly over bumps or rough roads due to the suspension moving in an up/down motion. Loose or damaged rear shock absorber(s) or shock absorber bushing(s) INSPECT the rear shock absorber(s) or shock absorber bushing(s). INSTALL new components as necessary.
REFER to: Rear Shock Absorber (204-02 Rear Suspension, Removal and Installation).
Damaged spring(s) or spring mount(s) INSPECT the rear spring(s) and spring mount(s). REPLACE damaged components as necessary.
REFER to: Spring (204-02 Rear Suspension, Removal and Installation).
Damaged or worn control arm bushing(s) INSPECT the rear control arm bushings. REPLACE damaged or worn components as necessary.
REFER to: Upper Arm (204-02 Rear Suspension, Removal and Installation).
REFER to: Lower Arm (204-02 Rear Suspension, Removal and Installation).
Worn or damaged stabilizer bar bushing(s) or link(s) INSPECT the stabilizer bar bushing(s) or link(s). REPLACE damaged or worn components as necessary.
REFER to: Rear Stabilizer Bar (204-02 Rear Suspension, Removal and Installation).
REFER to: Rear Stabilizer Bar Link (204-02 Rear Suspension, Removal and Installation).
Lower control arm / ball joint CARRY OUT a ball joint inspection. INSTALL new lower ball joints as necessary.
REFER to: Lower Arm (204-02 Rear Suspension, Removal and Installation).
Noise from front suspension when turning — crunch or ratcheting noise. Occurs as a result of the suspension twisting and flexing. Strut top nut INSPECT and TIGHTEN to specification.
Worn or damaged front strut bearing(s) INSPECT for worn or damaged strut bearing. INSTALL new components as necessary.
Coil Spring INSPECT springs. REPLACE as necessary.
Strut brackets or seat(s) INSPECT strut brackets or seat(s). REPAIR as necessary.
Stabilizer bar INSPECT the stabilizer bar. REPAIR or REPLACE as necessary.
REFER to: Front Stabilizer Bar (204-01A Front Suspension - RWD, Removal and Installation).
REFER to: Front Stabilizer Bar (204-01B Front Suspension - AWD, Removal and Installation).
Steering gear INSPECT the steering gear.
REFER to: Power Steering (211-02 Power Steering, Diagnosis and Testing).
REFER to: Adaptive Steering (211-02 Power Steering, Diagnosis and Testing).
Tie rod ends INSPECT tie rod ends. INSTALL new components as necessary.
REFER to: Tie Rod End (211-02 Power Steering, Removal and Installation).
Hub INSPECT hub(s). REPAIR or REPLACE as necessary.
REFER to: Front Wheel Bearing and Wheel Hub (204-01A Front Suspension - RWD, Removal and Installation).
REFER to: Front Wheel Bearing and Wheel Hub (204-01B Front Suspension - AWD, Removal and Installation).
Lower control arm / ball joint CARRY OUT a ball joint inspection.
REFER to: Suspension System (204-00 Suspension System - General Information, Diagnosis and Testing).
INSTALL new control arm(s) as necessary. REFER to: Lower Arm (204-02 Rear Suspension, Removal and Installation).
REFER to: Front Lower Arm (204-01A Front Suspension - RWD, Removal and Installation).
REFER to: Front Lower Arm (204-01B Front Suspension - AWD, Removal and Installation).
Noise from front suspension when turning — Crunch clunk or grunt noise from the front suspension occurring when turning to full left or right stop. Steering stops Normal condition. No action required.
Noise while braking — Noises occurring during this condition result from rearward and downward force applied to the suspension and subframe such as rearward force applied to the lower control arm. Front brake caliper INSPECT the front brake caliper(s).
REFER to: Brake System (206-00 Brake System - General Information, Diagnosis and Testing).
Hub INSPECT hub(s). REPAIR or REPLACE as necessary.
REFER to: Front Wheel Bearing and Wheel Hub (204-01A Front Suspension - RWD, Removal and Installation).
REFER to: Front Wheel Bearing and Wheel Hub (204-01B Front Suspension - AWD, Removal and Installation).
Lower control arm / ball joint CARRY OUT a ball joint inspection.
REFER to: Suspension System (204-00 Suspension System - General Information, Diagnosis and Testing).
INSTALL new control arm(s) as necessary. REFER to: Lower Arm (204-02 Rear Suspension, Removal and Installation).
REFER to: Front Lower Arm (204-01A Front Suspension - RWD, Removal and Installation).
REFER to: Front Lower Arm (204-01B Front Suspension - AWD, Removal and Installation).
Powertrain mounts INSPECT the powertrain mounts.
REFER to: Engine (303-01A Engine - 3.0L EcoBoost, Diagnosis and Testing).
Noise while accelerating — Noises occurring during this condition result from powertrain torque and flex, such as torque on the powertrain mounts during acceleration. Body (inner fender, bulkhead, seams and pinch welds) INSPECT and REPAIR as necessary.
Hub INSPECT hub(s). REPAIR or REPLACE as necessary.
REFER to: Front Wheel Bearing and Wheel Hub (204-01A Front Suspension - RWD, Removal and Installation).
REFER to: Front Wheel Bearing and Wheel Hub (204-01B Front Suspension - AWD, Removal and Installation).
Powertrain mounts INSPECT the powertrain mounts.
REFER to: Engine (303-01A Engine - 3.0L EcoBoost, Diagnosis and Testing).
Exhaust system INSPECT the exhaust system.
REFER to: Exhaust System (309-00B Exhaust System - 3.0L EcoBoost – Hybrid (BQ), Diagnosis and Testing).
Noise while entering driveways or driving over dips or depressions — Noises occurring during this condition result from the body , subframe or suspension twisting or flexing such as the tension on body structure welds. Body (inner fender, bulkhead, seams and pinch welds) INSPECT and REPAIR as necessary.
Stabilizer bar links INSPECT the stabilizer bar links. INSTALL new stabilizer bar links as necessary.
REFER to: Front Stabilizer Bar Link (204-01A Front Suspension - RWD, Removal and Installation).
REFER to: Front Stabilizer Bar Link (204-01B Front Suspension - AWD, Removal and Installation).
REFER to: Rear Stabilizer Bar Link (204-02 Rear Suspension, Removal and Installation).
Clunk or pop or thump/thud — noise may be thought of as a loose part striking an adjacent part or a secure part coming loose when force is applied. A clunk is often rhythmic, repeatable and metallic in nature. Loose fasteners INSPECT for loose nuts or bolts.
Worn or damaged bushings INSPECT for out-of-position or damaged components.
Struts & shocks INSPECT for worn or damaged struts or shocks. REPLACE as necessary.
Coil spring or spring seat out of position INSPECT for out-of-position or damaged components. ADJUST or REPLACE as necessary.
Worn or damaged ball joint(s) CARRY OUT a ball joint inspection.
REFER to: Suspension System (204-00 Suspension System - General Information, Diagnosis and Testing).
INSTALL new control arm(s) as necessary. REFER to: Front Lower Arm (204-01A Front Suspension - RWD, Removal and Installation).
REFER to: Front Lower Arm (204-01B Front Suspension - AWD, Removal and Installation).
Rattle — noise occurs mostly over bumps, rough roads or uneven surfaces at low speeds (i.e. parking lot). A rattle is often a rapid, repetitive noise that can be metallic or non-metallic in nature.
  • Loose fasteners or brackets
  • Loose or damaged front struts, shock absorber(s) or shock absorber bushing(s), dust boot(s), jounce bumper(s)
  • Damaged spring or spring mount(s)
  • Damaged or worn control/radius arm bushing(s)
  • Worn or damaged stabilizer bar bushings or link(s)
INSPECT for loose nuts or bolts. TIGHTEN to specification. INSPECT for out-of-position or damaged components. ADJUST or INSTALL new components as necessary.
Whine, roar or groan — noise generally occurs over 30 mph and is often more noticeable with steering input. Loose or damaged wheel bearings INSPECT the front or rear wheel bearing(s). INSTALL new bearing(s) as necessary.
REFER to: Front Wheel Bearing and Wheel Hub (204-01A Front Suspension - RWD, Removal and Installation).
REFER to: Front Wheel Bearing and Wheel Hub (204-01B Front Suspension - AWD, Removal and Installation).
REFER to: Wheel Bearing and Wheel Hub (204-02 Rear Suspension, Removal and Installation).
Shimmy Loose wheel nut(s) TIGHTEN the nut(s) to specification.
REFER to: Wheel and Tire (204-04A Wheels and Tires, Removal and Installation).
Loose front suspension fastener(s) TIGHTEN the fastener(s) to specifications.
Loose front wheel bearing(s) INSPECT the front wheel bearing(s). INSTALL new bearing(s) as necessary.
REFER to: Front Wheel Bearing and Wheel Hub (204-01A Front Suspension - RWD, Removal and Installation).
REFER to: Front Wheel Bearing and Wheel Hub (204-01B Front Suspension - AWD, Removal and Installation).
REFER to: Wheel Bearing and Wheel Hub (204-02 Rear Suspension, Removal and Installation).
Strut(s) or shock absorber(s) INSTALL new struts or shock absorbers as necessary. REFER to: Rear Shock Absorber (204-02 Rear Suspension, Removal and Installation).
Shimmy — most noticeable on coast/deceleration. Also hard steering condition Excessive positive caster INSPECT the front suspension. REPAIR or INSTALL new suspension components as necessary.
Rough/harsh ride Incorrect tire pressure ADJUST the tire pressure. REFER to VC label.
Strut(s) or shock absorber(s) INSTALL new struts or shock absorbers as necessary. REFER to: Rear Shock Absorber (204-02 Rear Suspension, Removal and Installation).
Spring(s) MEASURE the ride height.
REFER to: Ride Height Measurement (204-00 Suspension System - General Information, General Procedures).
INSTALL new springs as necessary. REFER to: Spring (204-02 Rear Suspension, Removal and Installation).
Damaged suspension component(s) INSTALL new suspension component(s) as necessary.
REFER to: Suspension System (204-00 Suspension System - General Information, Diagnosis and Testing).
Shudder — occurs during acceleration from a slow speed or stop Incorrect ride height causing incorrect driveline angle INSPECT driveline angle.
REFER to: Driveshaft Angle Measurement (205-01 Driveshaft, General Procedures).

Pinpoint Tests

Diagnostic Overview

Diagnostics in this manual assume a certain skill level and knowledge of Ford-specific diagnostic practices.
REFER to: Diagnostic Methods (100-00 General Information, Description and Operation).


PINPOINT TEST A : VEHICLE DRIFTS, PULLS

Possible Sources

  • Unevenly loaded vehicle
  • Tire pressure
  • Tire forces
  • Brake drag
  • Incorrect vehicle alignment
  • Bent/damaged vehicle components
  • Steering system
A1 CHECK FOR UNEVENLY LOADED VEHICLE
  • Visually check the vehicle for an uneven loading condition.

Is the vehicle unevenly loaded?
Yes ADVISE the customer of uneven loading condition.
No GO to A2

A2 CHECK THE TIRE PRESSURES AND TIRE CONDITIONS
  • Check the tire pressures. Vehicle Certification (VC) Codes
    REFER to: Identification Codes (100-01 Identification Codes, Description and Operation).
    Check the tires for uneven/abnormal wear. Symptom Chart: Tire Wear REFER to: Wheels and Tires (204-04A Wheels and Tires, Diagnosis and Testing).

Are the tire pressures and tire conditions OK?
Yes GO to A3
No ADJUST the tire pressures to the specified pressure or INSTALL new tires as necessary.

A3 ISOLATE TIRE DRIFT/PULL CONDITION
  • Cross the front wheel and tire assemblies from left-to-right.

Does the vehicle drift/pull?
Yes If the vehicle drifts/pulls in the opposite direction, tire forces are causing the drift/pull. ROTATE the wheel and tire assemblies front-to-rear. If the vehicle drifts/pulls in the same direction, GO to A4
No Tire forces were causing the drift/pull and the concern has been corrected.

A4 CHECK FOR BRAKE DRAG
  • Spin all four wheel and tire assemblies by hand and check for brake drag.

Do the wheels spin freely?
Yes GO to A6
No
REFER to: Suspension System (204-00 Suspension System - General Information, Diagnosis and Testing).
to diagnose brake drag condition

A5 CHECK FOR BENT / DAMAGED VEHICLE COMPONENTS
  • Visually check the vehicle for bent/damaged vehicle components.

Inspect the rear lower arm for bent/damaged.
Yes Replace the bent/damaged rear lower arm.
REFER to: Rear Lower Arm (204-01A Front Suspension - RWD, Removal and Installation).
REFER to: Rear Lower Arm (204-01B Front Suspension - AWD, Removal and Installation).
No Symptom Chart(s)
REFER to: Power Steering (211-02 Power Steering, Diagnosis and Testing).
REFER to: Adaptive Steering (211-02 Power Steering, Diagnosis and Testing).
to diagnose steering system drift/pull/wander condition.

A6 CHECK THE WHEEL ALIGNMENT
  • Using alignment equipment and the manufacturer's instructions, check the wheel alignment.

Is the wheel alignment out of specification?
Yes ADJUST the alignment as necessary.
REFER to: Suspension System (204-00 Suspension System - General Information, Diagnosis and Testing).
No Symptom Chart(s)
REFER to: Power Steering (211-02 Power Steering, Diagnosis and Testing).
to diagnose steering system drift/pull/wander condition.


Component Tests

Ball Joint Inspection

  1. Prior to inspecting the ball joints for wear, inspect the wheel bearings and wheel hubs.
    REFER to: Noise, Vibration and Harshness (NVH) (100-04 Noise, Vibration and Harshness, Diagnosis and Testing).

  1. NOTE: In order to obtain accurate measurements, the suspension must be in full rebound with the weight of the vehicle supported by the frame.

    Raise and support the vehicle by the frame to allow the wheels to hang in the rebound position.
  1. Inspect the ball joint and ball joint boot for damage.
    • If the ball joint or ball joint boot is damaged, install a new lower ball joint as necessary.
      REFER to: Front Lower Arm (204-01A Front Suspension - RWD, Removal and Installation).
      REFER to: Front Lower Arm (204-01B Front Suspension - AWD, Removal and Installation).
      vehicles.

NOTE: Carry out Steps 4 through 6 to inspect the lower ball joint. Carry out Steps 7 through 9 to inspect the upper ball joint.

  1. NOTICE: Do not use any tools or equipment to move the wheel and tire assembly or suspension components while checking for relative movement. Suspension damage may occur. The use of tools or equipment will also create relative movement that may not exist when using hand force. Relative movement must be measured using hand force only.

    NOTE: The weight of the wheel and tire assembly must be overcome to obtain an accurate measurement on the dial indicator.

    Inspect the ball joint for relative movement by alternately pulling downward and pushing upward on the lower control arm by hand. Note any relative vertical movement between the wheel knuckle and lower control arm at the lower ball joint.
    • If relative movement is not felt or seen, the ball joint is OK. Do not install a new lower ball joint.
    • If relative movement is found, continue with Step 5.

  1. NOTE: In order to obtain an accurate measurement, the dial indicator should be aligned as close as possible with the vertical axis (center line) of the ball joint.

    To measure ball joint deflection, attach a suitable dial indicator with a flexible arm between the lower control arm and the wheel knuckle or ball joint stud.
  1. Measure the ball joint deflection while an assistant pushes up and pulls down on the lower control arm, by hand.
    • If the deflection exceeds the specification, a new lower ball joint must be installed.
      REFER to: Front Lower Arm (204-01A Front Suspension - RWD, Removal and Installation).
      REFER to: Front Lower Arm (204-01B Front Suspension - AWD, Removal and Installation).
      vehicles.
    • If the deflection meets the specification, continue with the procedure.

  1. NOTICE: Do not use any tools or equipment to move the wheel and tire assembly or suspension components while checking for relative movement. Suspension damage may occur. The use of tools or equipment will also create relative movement that may not exist when using hand force. Relative movement must be measured using hand force only.

    Inspect the ball joint for relative movement by alternately pulling downward and pushing upward on the upper control arm by hand. Note any relative vertical movement between the wheel knuckle and upper arm at the upper ball joint.
    • If relative movement is not felt or seen, the ball joint is OK. Do not install a new ball joint.
    • If relative movement is found, continue with Step 8

  1. NOTE: In order to obtain an accurate measurement, the dial indicator should be aligned as close as possible with the vertical axis (center line) of the ball joint.

    To measure ball joint deflection, attach a suitable dial indicator with a flexible arm between the upper control arm and the wheel knuckle or ball joint stud.
  1. Measure the ball joint deflection while an assistant pushes up and then pulls down on the upper control arm, by hand.
    • If the deflection exceeds the specification, a new upper arm must be installed.
      REFER to: Upper Arm (204-01A Front Suspension - RWD, Removal and Installation).
      REFER to: Upper Arm (204-01B Front Suspension - AWD, Removal and Installation).
      vehicles.
    • If the deflection meets or is below the specification, no further action is required.

    Specifications

      General Specifications NOTE: Measurements listed at curb load. Curb load is defined as "full service fluids, full fuel tank(s), no passengers and no cargo"...

    General Procedures - Front Camber Adjustment

    Special Tool(s) / General Equipment Wheel Alignment System Vehicle/Axle Stands Adjustment NOTICE: Suspension fasteners are critical parts that affect the performance of vital components and systems...

    Other information:

    Lincoln Aviator 2020-2023 Service Manual: Diagnosis and Testing - Airbag Supplemental Restraint System (SRS)


    Diagnostic Trouble Code (DTC) Chart Diagnostics in this manual assume a certain skill level and knowledge of Ford-specific diagnostic practices. REFER to: Diagnostic Methods (100-00 General Information, Description and Operation).   Diagnostic Trouble Code Chart Module   DTC Description Action   BCM B00A0:11 Occupant Classification System: Circuit Short to Ground   GO to Pinpoint Test BN   BCM B00A0:12 Occupant Classification System: Circuit Short to Battery   GO to Pinpoint Test BN   BCM B1123:11 Restraints Ignition Relay: Circuit Short to Ground   GO to Pinpoint Test BN   BCM B1123:12 Restraints Ignition Relay: Circuit Short to Battery   GO to Pinpoint Test BN   BCM B11D8:01 Restraint Event Notification: General Electrical Failure   GO to Pinpoint Test U   DCME B1262:92 Crash Input Mismatch - CAN Active, Hardware Inactive: Performance Or Incorrect Operation   GO to Pinpoint Test AX   DCMF B1262:92 Crash Input Mismatch - CAN Active, Hardware Inactive: Performance Or Incorrect Operation   GO to Pinpoint Test AX   DCMG B1262:92 Crash Input Mismatch - CAN Active, Hardware Inactive: Performance Or Incorrect Operation   GO to Pinpoint Test AY   DCMH B1262:92 Crash Input Mismatch - CAN Active, Hardware Inactive: Performance Or Incorrect Operation   GO to Pinpoint Test AY   FCIM B00D5:01 Restraint System Passenger Disable Indicator: General Electrical Failure   GO to Pinpoint Test R   FCIM B1202:01 Restraint System Passenger Enable Indicator: General Electrical Failure   GO to Pinpoint Test V   OCSM B0061:11 Passenger Seatbelt Tension Sensor: Circuit Short to Ground   GO to Pinpoint Test BC   OCSM B0061:12 Passenger Seatbelt Tension Sensor: Circuit Short to Battery   GO to Pinpoint Test BC   OCSM B0061:13 Passenger Seatbelt Tension Sensor: Circuit Open   GO to Pinpoint Test BC   OCSM B0061:64 Passenger Seatbelt Tension Sensor: Signal Plausibility Failure   GO to Pinpoint Test BC   OCSM B00A0:62 Occupant Classification System: Signal Compare Failure   GO to Pinpoint Test BD   OCSM B00C0:11 Passenger Seat Occupant Classification Sensor "A": Circuit Short To Ground   GO to Pinpoint Test BE   OCSM B00C0:12 Passenger Seat Occupant Classification Sensor "A": Circuit Short To Battery   GO to Pinpoint Test BE   OCSM B00C0:16 Passenger Seat Occupant Classification Sensor "A": Circuit Voltage Below Threshold   GO to Pinpoint Test BE   OCSM B00C0:49 Passenger Seat Occupant Classification Sensor "A": Internal Electronic Failure   GO to Pinpoint Test BE   OCSM B00C0:7B Passenger Seat Occupant Classification Sensor "A": Low Fluid Level   GO to Pinpoint Test BE   OCSM B00C2:11 Passenger Seat Occupant Classification Sensor "C": Circuit Short to Ground   GO to Pinpoint Test BF   OCSM B00C2:12 Passenger Seat Occupant Classification Sensor "C": Circuit Short to Battery   GO to Pinpoint Test BF   OCSM B1193:00 Crash Event Storage Full and Locked: No Sub Type Information   GO to Pinpoint Test BG   OCSM U0100:00 Lost Communication with ECM/PCM “A”: No Sub Type Information   GO to Pinpoint Test BH   OCSM U0151:00 Lost Communication with Restraints Control Module: No Sub Type Information   GO to Pinpoint Test BI   OCSM U024C:00 Lost Communication with Seat Control Module "H": No Sub Type Information   GO to Pinpoint Test BJ   OCSM U0401:00 Invalid Data Received from ECM/PCM A: No Sub Type Information   GO to Pinpoint Test BK   OCSM U3000:41 Control Module: General Checksum Failure   GO to Pinpoint Test BL   OCSM U3000:42 Control Module: General Memory Failure   GO to Pinpoint Test BL   OCSM U3000:46 Control Module: Special Memory Failure   GO to Pinpoint Test BL   OCSM U3000:54 Control Module: Missing Calibration   GO to Pinpoint Test BM   OCSM U3003:16 Battery Voltage: Circuit Voltage Below Threshold   GO to Pinpoint Test BB   OCSM U3003:17 Battery Voltage: Circuit Voltage Above Threshold   GO to Pinpoint Test BB   RCM B0001:11 Driver Frontal Stage 1 Deployment Control: Circuit Short to Ground   GO to Pinpoint Test A   RCM B0001:12 Driver Frontal Stage 1 Deployment Control: Circuit Short to Battery   GO to Pinpoint Test A   RCM B0001:13 Driver Frontal Stage 1 Deployment Control: Circuit Open   GO to Pinpoint Test A   RCM B0001:1A Driver Frontal Stage 1 Deployment Control: Circuit Resistance Below Threshold   GO to Pinpoint Test A   RCM B0001:2B Driver Frontal Stage 1 Deployment Control: Signal Cross Coupled   GO to Pinpoint Test AL   RCM B0001:4A Driver Frontal Stage 1 Deployment Control: Incorrect Component Installed   GO to Pinpoint Test AM   RCM B0002:11 Driver Frontal Stage 2 Deployment Control: Circuit Short to Ground   GO to Pinpoint Test B   RCM B0002:12 Driver Frontal Stage 2 Deployment Control: Circuit Short to Battery   GO to Pinpoint Test B   RCM B0002:13 Driver Frontal Stage 2 Deployment Control: Circuit Open   GO to Pinpoint Test B   RCM B0002:1A Driver Frontal Stage 2 Deployment Control: Circuit Resistance Below Threshold   GO to Pinpoint Test B   RCM B0002:2B Driver Frontal Stage 2 Deployment Control: Signal Cross Coupled   GO to Pinpoint Test AL   RCM B0002:4A Driver Frontal Stage 2 Deployment Control: Incorrect Component Installed   GO to Pinpoint Test AM   RCM B0004:11 Driver Knee Bolster Deployment Control: Circuit Short to Ground   GO to Pinpoint Test C   RCM B0004:12 Driver Knee Bolster Deployment Control: Circuit Short to Battery   GO to Pinpoint Test C   RCM B0004:13 Driver Knee Bolster Deployment Control: Circuit Open   GO to Pinpoint Test C   RCM B0004:1A Driver Knee Bolster Deployment Control: Circuit Resistance Below Threshold   GO to Pinpoint Test C   RCM B0004:2B Driver Knee Bolster Deployment Control: Signal Cross Coupled   GO to Pinpoint Test AL   RCM B0004:4A Driver Knee Bolster Deployment Control: Incorrect Component Installed   GO to Pinpoint Test AM   RCM B0010:11 Passenger Frontal Stage 1 Deployment Control: Circuit Short to Ground   GO to Pinpoint Test D   RCM B0010:12 Passenger Frontal Stage 1 Deployment Control: Circuit Short to Battery   GO to Pinpoint Test D   RCM B0010:13 Passenger Frontal Stage 1 Deployment Control: Circuit Open   GO to Pinpoint Test D   RCM B0010:1A Passenger Frontal Stage 1 Deployment Control: Circuit Resistance Below Threshold   GO to Pinpoint Test D   RCM B0010:2B Passenger Frontal Stage 1 Deployment Control: Signal Cross Coupled   GO to Pinpoint Test AL   RCM B0010:4A Passenger Frontal Stage 1 Deployment Control: Incorrect Component Installed   GO to Pinpoint Test AM   RCM B0011:11 Passenger Frontal Stage 2 Deployment Control: Circuit Short to Ground   GO to Pinpoint Test E   RCM B0011:12 Passenger Frontal Stage 2 Deployment Control: Circuit Short to Battery   GO to Pinpoint Test E   RCM B0011:13 Passenger Frontal Stage 2 Deployment Control: Circuit Open   GO to Pinpoint Test E   RCM B0011:1A Passenger Frontal Stage 2 Deployment Control: Circuit Resistance Below Threshold   GO to Pinpoint Test E   RCM B0011:2B Passenger Frontal Stage 2 Deployment Control: Signal Cross-Coupled   GO to Pinpoint Test AL   RCM B0011:4A Passenger Frontal Stage 2 Deployment Control: Incorrect Component Installed   GO to Pinpoint Test AM   RCM B0013:11 Passenger Knee Bolster Deployment Control: Circuit Short to Ground   GO to Pinpoint Test F   RCM B0013:12 Passenger Knee Bolster Deployment Control: Circuit Short to Battery   GO to Pinpoint Test F   RCM B0013:13 Passenger Knee Bolster Deployment Control: Circuit Open   GO to Pinpoint Test F   RCM B0013:1A Passenger Knee Bolster Deployment Control: Circuit Resistance Below Threshold   GO to Pinpoint Test F   RCM B0013:2B Passenger Knee Bolster Deployment Control: Signal Cross-Coupled   GO to Pinpoint Test AL   RCM B0013:4A Passenger Knee Bolster Deployment Control: Incorrect Component Installed   GO to Pinpoint Test AM   RCM B0050:11 Driver Seatbelt Sensor: Circuit Short to Ground   GO to Pinpoint Test G   RCM B0050:12 Driver Seatbelt Sensor: Circuit Short to Battery   GO to Pinpoint Test G   RCM B0050:13 Driver Seatbelt Sensor: Circuit Open   GO to Pinpoint Test G   RCM B0050:1D Driver Seatbelt Sensor: Circuit Current Out of Range   GO to Pinpoint Test G   RCM B0050:2B Driver Seatbelt Sensor: Signal Cross-Coupled   GO to Pinpoint Test AL   RCM B0050:4A Driver Seatbelt Sensor: Incorrect Component Installed   GO to Pinpoint Test AM   RCM B0052:11 Passenger Seatbelt Sensor: Circuit Short to Ground   GO to Pinpoint Test H   RCM B0052:12 Passenger Seatbelt Sensor: Circuit Short to Battery   GO to Pinpoint Test H   RCM B0052:13 Passenger Seatbelt Sensor: Circuit Open   GO to Pinpoint Test H   RCM B0052:1D Passenger Seatbelt Sensor: Circuit Current Out of Range   GO to Pinpoint Test H   RCM B0052:2B Passenger Seatbelt Sensor: Signal Cross-Coupled   GO to Pinpoint Test AL   RCM B0052:4A Passenger Seatbelt Sensor: Incorrect Component Installed   GO to Pinpoint Test AM   RCM B0054:11 Second Row Center Seatbelt Sensor: Circuit Short To Ground   GO to Pinpoint Test I   RCM B0054:12 Second Row Center Seatbelt Sensor: Circuit Short To Battery   GO to Pinpoint Test I   RCM B0054:13 Second Row Center Seatbelt Sensor: Circuit Open   GO to Pinpoint Test I   RCM B0054:1D Second Row Center Seatbelt Sensor: Circuit Current Out Of Range   GO to Pinpoint Test I   RCM B0054:2B Second Row Center Seatbelt Sensor: Signal Cross Coupled   GO to Pinpoint Test AL   RCM B0054:4A Second Row Center Seatbelt Sensor: Incorrect Component Installed   GO to Pinpoint Test AM   RCM B0070:11 Driver Seatbelt Pretensioner "A" Deployment Control: Circuit Short to Ground   GO to Pinpoint Test J   RCM B0070:12 Driver Seatbelt Pretensioner "A" Deployment Control: Circuit Short to Battery   GO to Pinpoint Test J   RCM B0070:13 Driver Seatbelt Pretensioner "A" Deployment Control: Circuit Open   GO to Pinpoint Test J   RCM B0070:1A Driver Seatbelt Pretensioner "A" Deployment Control: Circuit Resistance Below Threshold   GO to Pinpoint Test J   RCM B0070:2B Driver Seatbelt Pretensioner "A" Deployment Control: Signal Cross Coupled   GO to Pinpoint Test AL   RCM B0070:4A Driver Seatbelt Pretensioner "A" Deployment Control: Incorrect Component Installed   GO to Pinpoint Test AM   RCM B0072:11 Passenger Seatbelt Pretensioner "A" Deployment Control: Circuit Short to Ground   GO to Pinpoint Test K   RCM B0072:12 Passenger Seatbelt Pretensioner "A" Deployment Control: Circuit Short to Battery   GO to Pinpoint Test K   RCM B0072:13 Passenger Seatbelt Pretensioner "A" Deployment Control: Circuit Open   GO to Pinpoint Test K   RCM B0072:1A Passenger Seatbelt Pretensioner "A" Deployment Control: Circuit Resistance Below Threshold   GO to Pinpoint Test K   RCM B0072:2B Passenger Seatbelt Pretensioner "A" Deployment Control: Signal Cross Coupled   GO to Pinpoint Test AL   RCM B0072:4A Passenger Seatbelt Pretensioner "A" Deployment Control: Incorrect Component Installed   GO to Pinpoint Test AM   RCM B007E:11 Driver Seatbelt Pretensioner "C" Deployment Control: Circuit Short to Ground   GO to Pinpoint Test L   RCM B007E:12 Driver Seatbelt Pretensioner "C" Deployment Control: Circuit Short to Battery   GO to Pinpoint Test L   RCM B007E:13 Driver Seatbelt Pretensioner "C" Deployment Control: Circuit Open   GO to Pinpoint Test L   RCM B007E:1A Driver Seatbelt Pretensioner "C" Deployment Control: Circuit Resistance Below Threshold   GO to Pinpoint Test L   RCM B007E:2B Driver Seatbelt Pretensioner "C" Deployment Control: Signal Cross-Coupled   GO to Pinpoint Test AL   RCM B007E:4A Driver Seatbelt Pretensioner "C" Deployment Control: Incorrect Component Installed   GO to Pinpoint Test AM   RCM B007F:11 Passenger Seatbelt Pretensioner "C" Deployment Control: Circuit Short to Ground   GO to Pinpoint Test M   RCM B007F:12 Passenger Seatbelt Pretensioner "C" Deployment Control: Circuit Short to Battery   GO to Pinpoint Test M   RCM B007F:13 Passenger Seatbelt Pretensioner "C" Deployment Control: Circuit Open   GO to Pinpoint Test M   RCM B007F:1A Passenger Seatbelt Pretensioner "C" Deployment Control: Circuit Resistance Below Threshold   GO to Pinpoint Test M   RCM B007F:2B Passenger Seatbelt Pretensioner "C" Deployment Control: Signal Cross-Coupled   GO to Pinpoint Test AL   RCM B007F:4A Passenger Seatbelt Pretensioner "C" Deployment Control: Incorrect Component Installed   GO to Pinpoint Test AM   RCM B0082:11 Passenger Seatbelt Load Limiter Deployment Control: Circuit Short to Ground   GO to Pinpoint Test N   RCM B0082:12 Passenger Seatbelt Load Limiter Deployment Control: Circuit Short to Battery   GO to Pinpoint Test N   RCM B0082:13 Passenger Seatbelt Load Limiter Deployment Control: Circuit Open   GO to Pinpoint Test N   RCM B0082:1A Passenger Seatbelt Load Limiter Deployment Control: Circuit Resistance Below Threshold   GO to Pinpoint Test N   RCM B0082:2B Passenger Seatbelt Load Limiter Deployment Control: Signal Cross Coupled   GO to Pinpoint Test AL   RCM B0082:4A Passenger Seatbelt Load Limiter Deployment Control: Incorrect Component Installed   GO to Pinpoint Test AM   RCM B00A0:09 Occupant Classification System: Component Failure   GO to Pinpoint Test O   RCM B00A0:4A Occupant Classification System: Incorrect Component Installed   GO to Pinpoint Test AM   RCM B00A0:63 Occupant Classification System: Circuit / Component Protection Time-Out   GO to Pinpoint Test O   RCM B00A0:64 Occupant Classification System: Signal Plausibility Failure   GO to Pinpoint Test O   RCM B00A0:68 Occupant Classification System: Event Information   GO to Pinpoint Test O   RCM B00B5:11 Driver Seat Track Position Restraints Sensor: Circuit Short to Ground   GO to Pinpoint Test P   RCM B00B5:12 Driver Seat Track Position Restraints Sensor: Circuit Short to Battery   GO to Pinpoint Test P   RCM B00B5:13 Driver Seat Track Position Restraints Sensor: Circuit Open   GO to Pinpoint Test P   RCM B00B5:1D Driver Seat Track Position Restraints Sensor: Circuit Current Out of Range   GO to Pinpoint Test P   RCM B00B5:2B Driver Seat Track Position Restraints Sensor: Signal Cross Coupled   GO to Pinpoint Test AL   RCM B00B5:4A Driver Seat Track Position Restraints Sensor: Incorrect Component Installed   GO to Pinpoint Test AM   RCM B00C5:11 Passenger Seat Track Position Restraints Sensor: Circuit Short to Ground   GO to Pinpoint Test Q   RCM B00C5:12 Passenger Seat Track Position Restraints Sensor: Circuit Short to Battery   GO to Pinpoint Test Q   RCM B00C5:13 Passenger Seat Track Position Restraints Sensor: Circuit Open   GO to Pinpoint Test Q   RCM B00C5:1D Passenger Seat Track Position Restraints Sensor: Circuit Current Out of Range   GO to Pinpoint Test Q   RCM B00C5:2B Passenger Seat Track Position Restraints Sensor: Signal Cross Coupled   GO to Pinpoint Test AL   RCM B00C5:4A Passenger Seat Track Position Restraints Sensor: Incorrect Component Installed   GO to Pinpoint Test AM   RCM B00D5:01 Restraint System Passenger Disable Indicator: General Electrical Failure   GO to Pinpoint Test R   RCM B00D5:4A Restraint System Passenger Disable Indicator: Incorrect Component Installed   GO to Pinpoint Test AM   RCM B1193:00 Crash Event Storage Full and Locked: No Sub Type Information   GO to Pinpoint Test S   RCM B11CF:11 Passenger Frontal Airbag Canister Vent: Circuit Short to Ground   GO to Pinpoint Test T   RCM B11CF:12 Passenger Frontal Airbag Canister Vent: Circuit Short to Battery   GO to Pinpoint Test T   RCM B11CF:13 Passenger Frontal Airbag Canister Vent: Circuit Open   GO to Pinpoint Test T   RCM B11CF:1A Passenger Frontal Airbag Canister Vent: Circuit Resistance Below Threshold   GO to Pinpoint Test T   RCM B11CF:2B Passenger Frontal Airbag Canister Vent: Signal Cross Coupled   GO to Pinpoint Test AL   RCM B11CF:4A Passenger Frontal Airbag Canister Vent: Incorrect Component Installed   GO to Pinpoint Test AM   RCM B11D8:11 Restraint Event Notification: Circuit Short To Ground   GO to Pinpoint Test U   RCM B11D8:12 Restraint Event Notification: Circuit Short To Battery   GO to Pinpoint Test U   RCM B11D8:13 Restraint Event Notification: Circuit Short To Open   GO to Pinpoint Test U   RCM B1202:01 Restraint System Passenger Enable Indicator: General Electrical Failure   GO to Pinpoint Test V   RCM B1202:4A Restraint System Passenger Enable Indicator: Incorrect Component Installed   GO to Pinpoint Test AM   RCM B1404:11 Driver Side Airbag Deployment Control: Circuit Short to Ground   GO to Pinpoint Test W   RCM B1404:12 Driver Side Airbag Deployment Control: Circuit Short to Battery   GO to Pinpoint Test W   RCM B1404:13 Driver Side Airbag Deployment Control: Circuit Open   GO to Pinpoint Test W   RCM B1404:1A Driver Side Airbag Deployment Control: Circuit Resistance Below Threshold   GO to Pinpoint Test W   RCM B1404:2B Driver Side Airbag Deployment Control: Signal Cross Coupled   GO to Pinpoint Test AL   RCM B1404:4A Driver Side Airbag Deployment Control: Incorrect Component Installed   GO to Pinpoint Test AM   RCM B1405:11 Driver Side Curtain Deployment Control 1: Circuit Short to Ground   GO to Pinpoint Test X   RCM B1405:12 Driver Side Curtain Deployment Control 1: Circuit Short to Battery   GO to Pinpoint Test X   RCM B1405:13 Driver Side Curtain Deployment Control 1: Circuit Open   GO to Pinpoint Test X   RCM B1405:1A Driver Side Curtain Deployment Control 1: Circuit Resistance Below Threshold   GO to Pinpoint Test X   RCM B1405:2B Driver Curtain Deployment Control 1: Signal Cross Coupled   GO to Pinpoint Test AL   RCM B1405:4A Driver Curtain Deployment Control 1: Incorrect Component Installed   GO to Pinpoint Test AM   RCM B1407:11 Passenger Side Airbag Deployment Control: Circuit Short to Ground   GO to Pinpoint Test Y   RCM B1407:12 Passenger Side Airbag Deployment Control: Circuit Short to Battery   GO to Pinpoint Test Y   RCM B1407:13 Passenger Side Airbag Deployment Control: Circuit Open   GO to Pinpoint Test Y   RCM B1407:1A Passenger Side Airbag Deployment Control: Circuit Resistance Below Threshold   GO to Pinpoint Test Y   RCM B1407:2B Passenger Side Airbag Deployment Control: Signal Cross Coupled   GO to Pinpoint Test AL   RCM B1407:4A Passenger Side Airbag Deployment Control: Incorrect Component Installed   GO to Pinpoint Test AM   RCM B1408:11 Passenger Side Curtain Deployment Control 1: Circuit Short to Ground   GO to Pinpoint Test Z   RCM B1408:12 Passenger Side Curtain Deployment Control 1: Circuit Short to Battery   GO to Pinpoint Test Z   RCM B1408:13 Passenger Side Curtain Deployment Control 1: Circuit Open   GO to Pinpoint Test Z   RCM B1408:1A Passenger Side Curtain Deployment Control 1: Circuit Resistance Below Threshold   GO to Pinpoint Test Z   RCM B1408:2B Passenger Curtain Deployment Control 1: Signal Cross Coupled   GO to Pinpoint Test AL   RCM B1408:4A Passenger Curtain Deployment Control 1: Incorrect Component Installed   GO to Pinpoint Test AM   RCM B140C:11 Second Row Driver Side Seatbelt Sensor: Circuit Short to Ground   GO to Pinpoint Test AA   RCM B140C:12 Second Row Driver Side Seatbelt Sensor: Circuit Short to Battery   GO to Pinpoint Test AA   RCM B140C:13 Second Row Driver Side Seatbelt Sensor: Circuit Open   GO to Pinpoint Test AA   RCM B140C:1D Second Row Driver Side Seatbelt Sensor: Circuit Current Out of Range   GO to Pinpoint Test AA   RCM B140C:2B Second Row Driver Side Seatbelt Sensor: Signal Cross-Coupled   GO to Pinpoint Test AL   RCM B140C:4A Second Row Driver Side Seatbelt Sensor: Incorrect Component Installed   GO to Pinpoint Test AM   RCM B140D:11 Second Row Passenger Side Seatbelt Sensor: Circuit Short to Ground   GO to Pinpoint Test AB   RCM B140D:12 Second Row Passenger Side Seatbelt Sensor: Circuit Short to Battery   GO to Pinpoint Test AB   RCM B140D:13 Second Row Passenger Side Seatbelt Sensor: Circuit Open   GO to Pinpoint Test AB   RCM B140D:1D Second Row Passenger Side Seatbelt Sensor: Circuit Current Out of Range   GO to Pinpoint Test AB   RCM B140D:2B Second Row Passenger Side Seatbelt Sensor: Signal Cross-Coupled   GO to Pinpoint Test AL   RCM B140D:4A Second Row Passenger Side Seatbelt Sensor: Incorrect Component Installed   GO to Pinpoint Test AM   RCM B140E:11 Third Row Driver Side Seatbelt Sensor: Circuit Short To Ground   GO to Pinpoint Test AC   RCM B140E:12 Third Row Driver Side Seatbelt Sensor: Circuit Short To Battery   GO to Pinpoint Test AC   RCM B140E:13 Third Row Driver Side Seatbelt Sensor: Circuit Open   GO to Pinpoint Test AC   RCM B140E:1D Third Row Driver Side Seatbelt Sensor: Circuit Current Out Of Range   GO to Pinpoint Test AC   RCM B140E:2B Third Row Driver Side Seatbelt Sensor: Signal Cross-Coupled   GO to Pinpoint Test AL   RCM B140E:4A Third Row Driver Side Seatbelt Sensor: Incorrect Component Installed   GO to Pinpoint Test AM   RCM B140F:11 Third Row Passenger Side Seatbelt Sensor: Circuit Short To Ground   GO to Pinpoint Test AD   RCM B140F:12 Third Row Passenger Side Seatbelt Sensor: Circuit Short To Battery   GO to Pinpoint Test AD   RCM B140F:13 Third Row Passenger Side Seatbelt Sensor: Circuit Open   GO to Pinpoint Test AD   RCM B140F:1D Third Row Passenger Side Seatbelt Sensor: Circuit Current Out Of Range   GO to Pinpoint Test AD   RCM B140F:2B Third Row Passenger Side Seatbelt Sensor: Signal Cross-Coupled   GO to Pinpoint Test AL   RCM B140F:4A Third Row Passenger Side Seatbelt Sensor: Incorrect Component Installed   GO to Pinpoint Test AM   RCM B1410:11 Second Row Driver Side Seatbelt Pretensioner Deployment Control: Circuit Short To Ground   GO to Pinpoint Test AE   RCM B1410:12 Second Row Driver Side Seatbelt Pretensioner Deployment Control: Circuit Short To Battery   GO to Pinpoint Test AE   RCM B1410:13 Second Row Driver Side Seatbelt Pretensioner Deployment Control: Circuit Open   GO to Pinpoint Test AE   RCM B1410:1A Second Row Driver Side Seatbelt Pretensioner Deployment Control: Circuit Resistance Below Threshold   GO to Pinpoint Test AE   RCM B1410:2B Second Row Driver Side Seatbelt Pretensioner Deployment Control: Signal Cross-Coupled   GO to Pinpoint Test AL   RCM B1410:4A Second Row Driver Side Seatbelt Pretensioner Deployment Control: Incorrect Component Installed   GO to Pinpoint Test AM   RCM B1412:11 Second Row Passenger Side Seatbelt Pretensioner Deployment Control: Circuit Short To Ground   GO to Pinpoint Test AF   RCM B1412:12 Second Row Passenger Side Seatbelt Pretensioner Deployment Control: Circuit Short To Battery   GO to Pinpoint Test AF   RCM B1412:13 Second Row Passenger Side Seatbelt Pretensioner Deployment Control: Circuit Open   GO to Pinpoint Test AF   RCM B1412:1A Second Row Passenger Side Seatbelt Pretensioner Deployment Control: Circuit Resistance Below Threshold   GO to Pinpoint Test AF   RCM B1412:2B Second Row Passenger Side Seatbelt Pretensioner Deployment Control: Signal Cross-Coupled   GO to Pinpoint Test AL   RCM B1412:4A Second Row Passenger Side Seatbelt Pretensioner Deployment Control: Incorrect Component Installed   GO to Pinpoint Test AM   RCM B1413:11 Driver Frontal Restraints Sensor: Circuit Short to Ground   GO to Pinpoint Test AG   RCM B1413:12 Driver Frontal Restraints Sensor: Circuit Short to Battery   GO to Pinpoint Test AG   RCM B1413:13 Driver Frontal Restraints Sensor: Circuit Open   GO to Pinpoint Test AG   RCM B1413:4A Driver Frontal Restraints Sensor: Incorrect Component Installed   GO to Pinpoint Test AM   RCM B1413:81 Driver Frontal Restraints Sensor: Invalid Serial Data Received   GO to Pinpoint Test AH   RCM B1413:96 Driver Frontal Restraints Sensor: Component Internal Failure   GO to Pinpoint Test AH   RCM B1414:11 Driver Side Restraints Sensor 1: Circuit Short to Ground   GO to Pinpoint Test AI   RCM B1414:12 Driver Side Restraints Sensor 1: Circuit Short to Battery   GO to Pinpoint Test AI   RCM B1414:13 Driver Side Restraints Sensor 1: Circuit Open   GO to Pinpoint Test AI   RCM B1414:4A Driver Side Restraints Sensor 1: Incorrect Component Installed   GO to Pinpoint Test AM   RCM B1414:81 Driver Side Restraints Sensor 1: Invalid Serial Data Received   GO to Pinpoint Test AH   RCM B1414:96 Driver Side Restraints Sensor 1: Component Internal Failure   GO to Pinpoint Test AH   RCM B1415:11 Driver Side Restraints Sensor 2: Circuit Short to Ground   GO to Pinpoint Test AJ   RCM B1415:12 Driver Side Restraints Sensor 2: Circuit Short to Battery   GO to Pinpoint Test AJ   RCM B1415:13 Driver Side Restraints Sensor 2: Circuit Open   GO to Pinpoint Test AJ   RCM B1415:4A Driver Side Restraints Sensor 2: Incorrect Component Installed   GO to Pinpoint Test AM   RCM B1415:81 Driver Side Restraints Sensor 2: Invalid Serial Data Received   GO to Pinpoint Test AH   RCM B1415:96 Driver Side Restraints Sensor 2: Component Internal Failure   GO to Pinpoint Test AH   RCM B1417:11 Passenger Frontal Restraints Sensor: Circuit Short To Ground   GO to Pinpoint Test AK   RCM B1417:12 Passenger Frontal Restraints Sensor: Circuit Short To Battery   GO to Pinpoint Test AK   RCM B1417:13 Passenger Frontal Restraints Sensor: Circuit Open   GO to Pinpoint Test AK   RCM B1417:4A Passenger Frontal Restraints Sensor: Incorrect Component Installed   GO to Pinpoint Test AM   RCM B1417:81 Passenger Frontal Restraints Sensor: Invalid Serial Data Received   GO to Pinpoint Test AH   RCM B1417:96 Passenger Frontal Restraints Sensor: Component Internal Failure   GO to Pinpoint Test AH   RCM B1418:11 Passenger Side Restraints Sensor 1: Circuit Short to Ground   GO to Pinpoint Test AJ   RCM B1418:12 Passenger Side Restraints Sensor 1: Circuit Short to Battery   GO to Pinpoint Test AJ   RCM B1418:13 Passenger Side Restraints Sensor 1: Circuit Open   GO to Pinpoint Test AJ   RCM B1418:4A Passenger Side Restraints Sensor 1: Incorrect Component Installed   GO to Pinpoint Test AM   RCM B1418:81 Passenger Side Restraints Sensor 1: Invalid Serial Data Received   GO to Pinpoint Test AH   RCM B1418:96 Passenger Side Restraints Sensor 1: Component Internal Failure   GO to Pinpoint Test AH   RCM B1419:11 Passenger Side Restraints Sensor 2: Circuit Short to Ground   GO to Pinpoint Test AI   RCM B1419:12 Passenger Side Restraints Sensor 2: Circuit Short to Battery   GO to Pinpoint Test AI   RCM B1419:13 Passenger Side Restraints Sensor 2: Circuit Open   GO to Pinpoint Test AI   RCM B1419:4A Passenger Side Restraints Sensor 2: Incorrect Component Installed   GO to Pinpoint Test AM   RCM B1419:81 Passenger Side Restraints Sensor 2: Invalid Serial Data Received   GO to Pinpoint Test AH   RCM B1419:96 Passenger Side Restraints Sensor 2: Component Internal Failure   GO to Pinpoint Test AH   RCM B142D:00 Pyrotechnic End of Life Activation Performed: No Sub Type Information   GO to Pinpoint Test AV   RCM B1469:4A Unused Satellite Restraints Sensor 1: Incorrect Component Installed   GO to Pinpoint Test AM   RCM B146A:4A Unused Satellite Restraints Sensor 2: Incorrect Component Installed   GO to Pinpoint Test AM   RCM B1492:68 Fuel Cutoff Event: Event Information   GO to Pinpoint Test AW   RCM B14ED:11 Restraint Event Notification 2: Circuit Short To Ground   GO to Pinpoint Test AX   RCM B14ED:12 Restraint Event Notification 2: Circuit Short To Battery   GO to Pinpoint Test AX   RCM B14ED:13 Restraint Event Notification 2: Circuit Open   GO to Pinpoint Test AX   RCM B14EE:11 Restraint Event Notification 3: Circuit Short To Ground   GO to Pinpoint Test AY   RCM B14EE:12 Restraint Event Notification 3: Circuit Short To Battery   GO to Pinpoint Test AY   RCM B14EE:13 Restraint Event Notification 3: Circuit Open   GO to Pinpoint Test AY   RCM B1534:4A Unused Deployable Device: Incorrect Component Installed   GO to Pinpoint Test AM   RCM B1535:4A Unused DC Sensor Device: Incorrect Component Installed   GO to Pinpoint Test AM   RCM C0061:68 Lateral Acceleration Sensor: Event Information   GO to Pinpoint Test AN   RCM C0062:68 Longitudinal Acceleration Sensor: Event Information   GO to Pinpoint Test AN   RCM C0063:68 Yaw Rate Sensor: Event Information   GO to Pinpoint Test AN   RCM C0064:68 Roll Rate Sensor: Event Information   GO to Pinpoint Test AN   RCM C0065:68 Vertical Acceleration Sensor: Event Information   GO to Pinpoint Test AN   RCM U0028:08 Vehicle Communication Bus A: Bus Signal/Message Failures   GO to Pinpoint Test AO   RCM U0028:88 Vehicle Communication Bus A: Bus Off   GO to Pinpoint Test AO   RCM U0100:00 Lost Communication with ECM/PCM “A”: No Sub Type Information   GO to Pinpoint Test AP   RCM U0140:00 Lost Communication with Body Control Module: No Sub Type Information   GO to Pinpoint Test AQ   RCM U0146:00 Lost Communication with Gateway "A": No Sub Type Information   GO to Pinpoint Test AR   RCM U0154:00 Lost Communication with Restraints Occupant Classification System Module: No Sub Type Information   GO to Pinpoint Test AS   RCM U0253:00 Lost Communication with Accessory Protocol Interface Module: No Sub Type Information   GO to Pinpoint Test AT   RCM U0300:00 Control Module: No Sub Type Information   GO to Pinpoint Test AV   RCM U0401:00 Invalid Data Received from ECM/PCM A: No Sub Type Information   GO to Pinpoint Test AU   RCM U0401:81 Invalid Data Received from ECM/PCM A: Invalid Serial Data Received   GO to Pinpoint Test AU   RCM U0422:00 Invalid Data Received From Body Control Module: No Sub Type Information   GO to Pinpoint Test AU   RCM U0422:81 Invalid Data Received From Body Control Module: Invalid Serial Data Received   GO to Pinpoint Test AU   RCM U0455:81 Invalid Data Received From Restraints Occupant Classification System Module: Invalid Serial Data Received   GO to Pinpoint Test AU   RCM U0554:00 Invalid Data Received From Accessory Protocol Interface Module: No Sub Type Information   GO to Pinpoint Test AU   RCM U0557:82 Invalid Data Received From Front Controls Interface Module "A": Alive/Sequence Counter Incorrect/Not Updated   GO to Pinpoint Test AU   RCM U2024:57 Control Module Cal-Config Data: Invalid/Incompatible Software Component   GO to Pinpoint Test AV   RCM U2100:00 Initial Configuration Not Complete: No Sub Type Information   GO to Pinpoint Test AZ   RCM U2101:00 Control Module Configuration Incompatible: No Sub Type Information   GO to Pinpoint Test AO   RCM U2200:00 Control Module Configuration Memory Corrupt: No Sub Type Information   GO to Pinpoint Test AV   RCM U2300:55 Central Configuration: Not Configured   GO to Pinpoint Test BA   RCM U2300:64 Central Configuration: Signal Plausibility Failure   GO to Pinpoint Test BA   RCM U3000:04 Control Module: System Internal Failure   GO to Pinpoint Test AV   RCM U3000:46 Control Module: Calibration / Parameter Memory Failure   GO to Pinpoint Test AV   RCM U3000:49 Control Module: Internal Electronic Failure   GO to Pinpoint Test AV   RCM U3003:16 Battery Voltage: Circuit Voltage Below Threshold   GO to Pinpoint Test BB   RCM U3003:17 Battery Voltage: Circuit Voltage Above Threshold   GO to Pinpoint Test BB Symptom Chart(s) Symptom Chart: Supplemental Restraint System Diagnostics in this manual assume a certain skill level and knowledge of Ford-specific diagnostic practices...

    Lincoln Aviator 2020-2023 Owners Manual: Steering


    Electric Power Steering WARNING: The electric power steering system has diagnostic checks that continuously monitor the system. If a fault is detected, a message displays in the information display. Stop your vehicle as soon as it is safe to do so...

    Categories

    Locking and Unlocking the Doors from Inside

    Lincoln Aviator. Locking and Unlocking the Doors from Inside

    Unlock. Lock.

    Locking the Doors

    Press the lock switch on the door interior trim panel. The doors can no longer be released using the exterior door handle switches and the luggage compartment locks.

    read more


    Copyright © 2023 www.liaviator2.com
