Lincoln Aviator: Roof Opening Panel / General Procedures - Roof Opening Panel Alignment

Adjustment

NOTE: Rear Fixed Glass Panel

NOTE: If the rear fixed glass is in need of adjustment, align the rear fixed glass panel and then align the front sliding glass panel.

The roof opening panel initialization procedure must be done when repairs are carried out on the roof opening panel system, including: any time either roof opening panel motor, air deflector, roof opening panel glass (rear fixed or front sliding) or the frame has been removed.

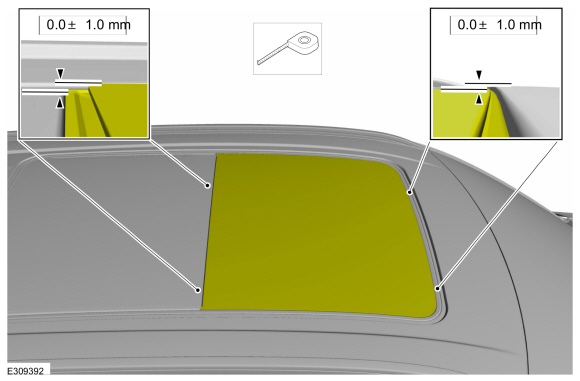

  1. Measure the rear fixed glass panel to roof height at the front sides of the glass and the rear of the glass referring to the specifications shown.
  1. If adjustment is necessary.

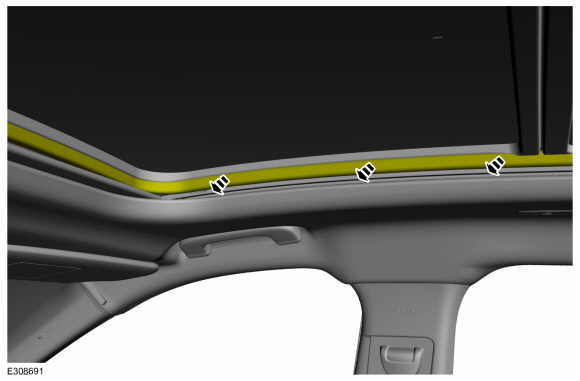

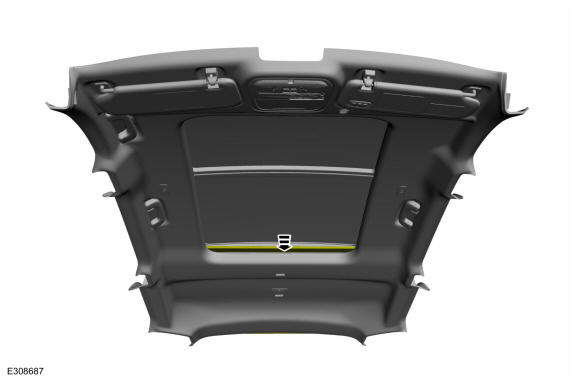

    Fully open the shield.
  1. On both sides.
    Reposition the roof opening panel seal as necessary.
  1. On both sides.
    Adjust the roof opening panel fixed glass.

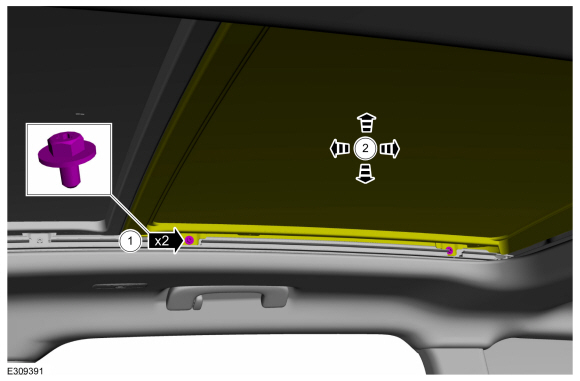

    1. Loosen the retainers to adjust the roof opening panel fixed glass.
      Torque: 53 lb.in (6 Nm)
    1. Adjust the roof opening panel fixed glass to specifications from the previous steps.

Adjustment

NOTE: Front Sliding Glass Panel

NOTE: The roof opening panel initialization procedure must be done when repairs are carried out on the roof opening panel system, including: any time either roof opening panel motor, air deflector, roof opening panel glass (rear fixed or front sliding) or the frame has been removed.

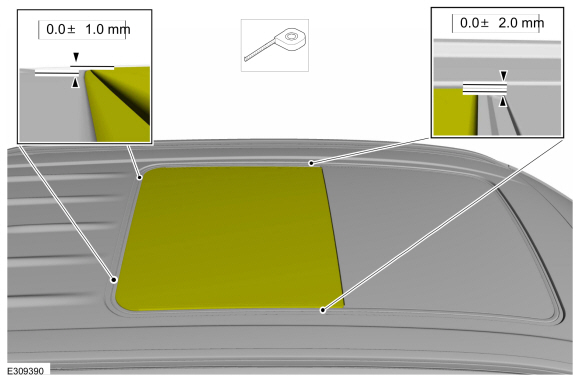

  1. Measure the front sliding glass panel to roof height at the front of the glass and the front sliding glass panel to rear fixed glass panel referring to the specifications shown.
  1. If adjustment is necessary.

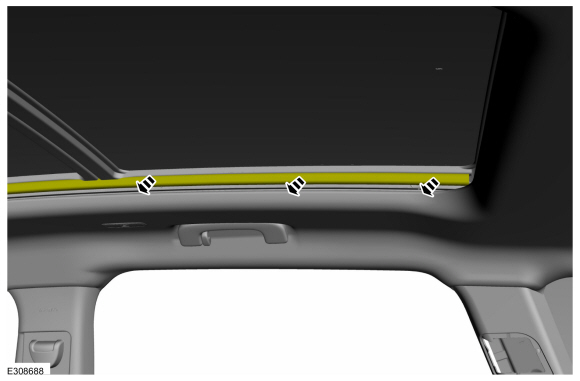

    Fully open the shield.
  1. On both sides.
    Reposition the roof opening panel seal as necessary.
  1. On both sides.
    Adjust the roof opening panel sliding glass.

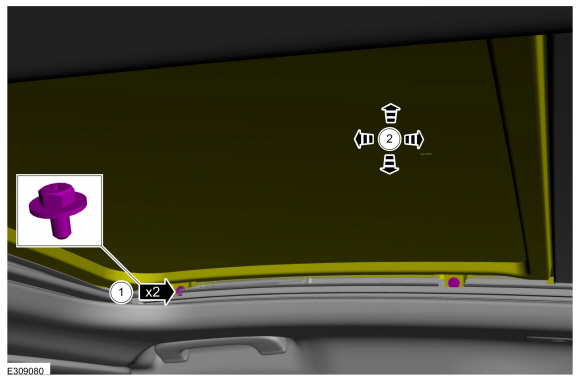

    1. Loosen the retainers to adjust the roof opening panel sliding glass.
      Torque: 53 lb.in (6 Nm)
    1. Adjust the roof opening panel sliding glass to specifications from the previous steps.
  1. If any adjustment was made on the front sliding or rear fixed glass panels, initialize the front sliding glass panel.
    Refer to: Power Roof Opening Panel Initialization (501-17 Roof Opening Panel, General Procedures).
