Lincoln Aviator: Automatic Transmission External Controls - 10-Speed Automatic Transmission – 10R60 / General Procedures - Transmission Park by Wire Manual Release

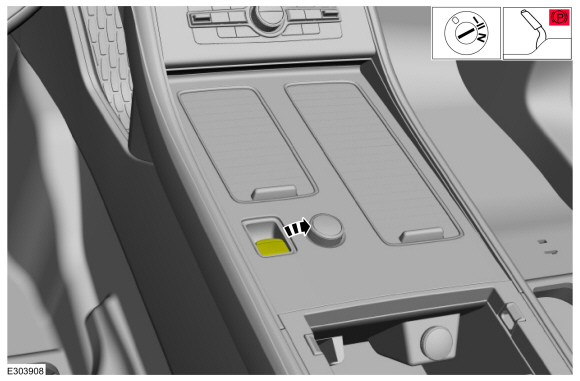

Activation
-
NOTE:
If the vehicle has a discharged battery, an external power source is required.
Apply the parking brake.
-

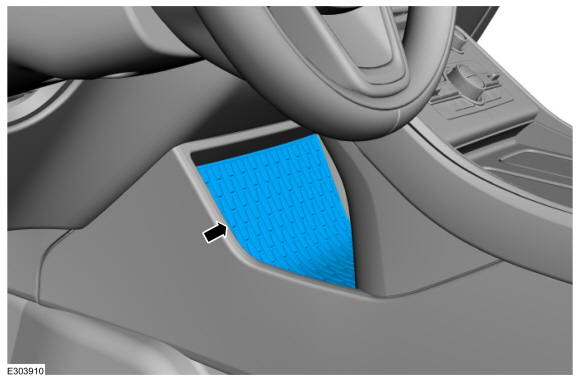

Remove the console mat.
-
NOTE:
Use a screwdriver no longer than 120 mm (4.7244 in).

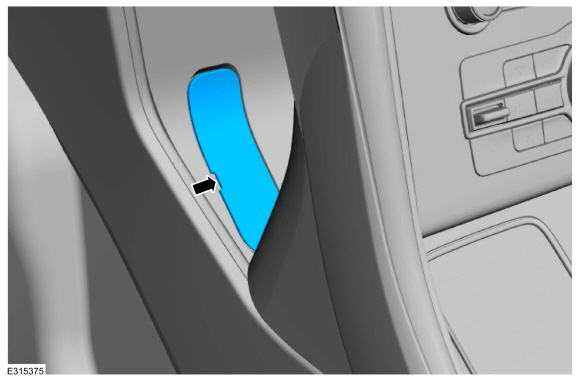

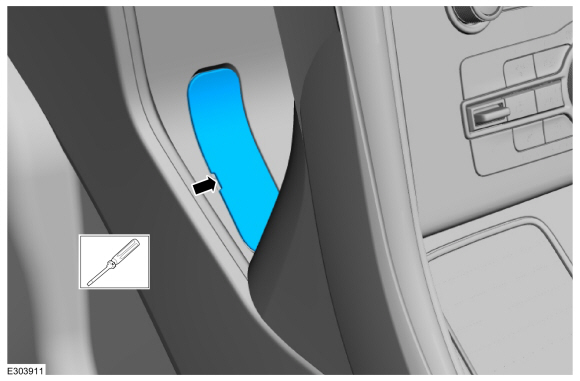

Using a screwdriver, pry up and remove the access panel.
-
NOTE:
Use a screwdriver no longer than 120 mm (4.7244 in).
NOTE:
The brakes must be applied from the driver's seat while releasing the vehicle from park.

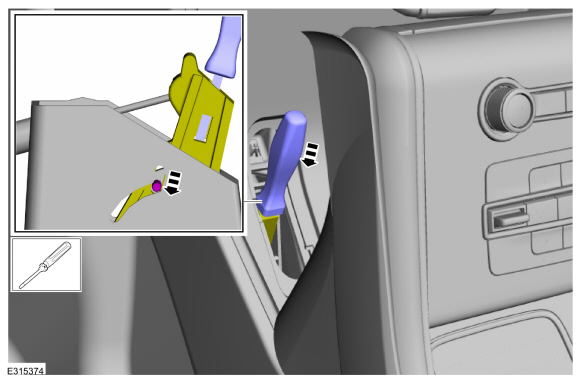

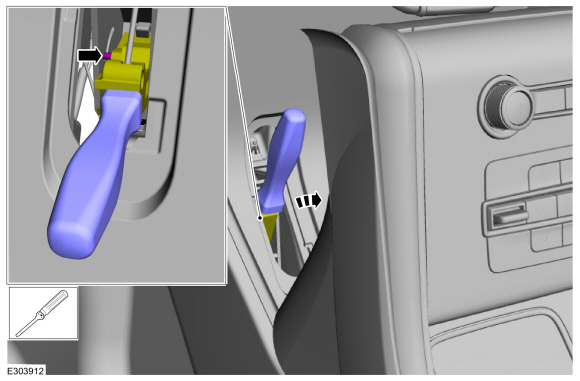

While applying the brakes, use a screwdriver and rotate
the release from park cable lever until the detent locks.
-
While applying the brakes, release the parking brake.

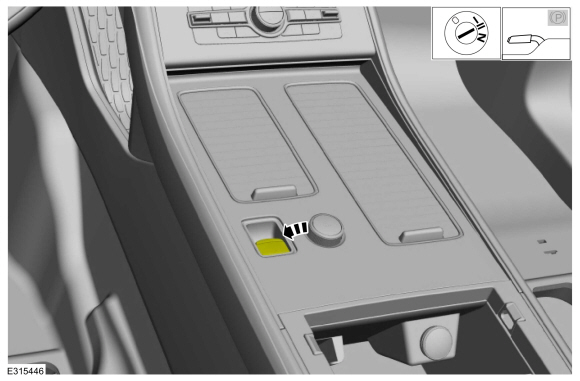

Deactivation
-
NOTE:
If the vehicle has a discharged battery, an external power source is required.
Apply the parking brake.
-
NOTE:
The brakes must be applied from the driver's seat while releasing the vehicle from park.
While applying the brakes, insert the screwdriver into
the MPR (Manual Park Release) lever slot. Push the screwdriver downward
until the detent unlocks. The lever will move forward allowing the
vehicle to go back into the P position.
-
Install the access panel.
-
Install the console mat.
-
While applying the brakes, release the parking brake.
Activation
NOTE:
If the vehicle has a discharged battery, an external
power source is required. If the battery discharges while in Stay in
Neutral Mode, the park lock pawl solenoid will release and the
transmission will return to Park...
Removal
NOTE:
Removal steps in this procedure may contain installation details.
Remove the steering wheel.
Refer to: Steering Wheel (211-04 Steering Column, Removal and Installation)...
Other information:
Item
Description
1
Internal wiring harness retaining bolt
2
Internal wiring harness
3
Park lock pawl solenoid
4
Solenoid retaining plate bolts
5
Solenoid retaining plate
6
TCC solenoid
7
LPC solenoid
8
Shift solenoid retaining plate bolts
9
Shift solenoid retaining plate
10
SSD
11
SSE
12
SSB
13
SSC
14
SSF
15
SSA
16
TFT
17
Valve channel plate bolts
18
Valve channel plate
19
Lower-to-upper valve body bolts
20
Lower valve body
21
Upper valve body
22
Valve body dowel pins
Lower Valve Body
1
Valve body separator plate bolts
2
Valve body separator plate
3
TCC damper
4
LPC damper assembly
5
Check valve assemblies
6
Check balls (quantity 5)
7
LPC anti-backflow valve assembly
8
TCC priority valve assembly
9
Park lock pawl valve
10
A clutch control valve
11
SSA
12
F clutch control valve
13
SSF
14
C clutch control valve
15
SSC
16
B clutch control valve
17
SSB
18
E clutch control valve
19
SSE
20
D clutch control valve
21
SSD
22
Shift solenoid retainers
Upper Valve Body
1
Lube control valve assembly
2
Plug and spring assembly
3
C clutch latch valve assembly
4
B clutch latch valve assembly
5
F clutch latch valve assembly
6
A clutch latch valve assembly
7
Plug and spring assembly
8
TCC regulator valve assembly
9
Main regulator valve assembly
The main control consists of a upper and lower valve body with solenoids that are controlled by a remote mounted TCM or the PCM...
Special Tool(s) /
General Equipment
303-050
(T70P-6000)
Lifting Bracket, Engine
303-F070Support Bar, EngineTKIT-1999A-F/LTTKIT-1999A-FM/FLM
Plastic Scraper
Hose Clamp Remover/Installer
Flat-Bladed Screwdriver
Materials
Name
Specification
Motorcraft® High Performance Engine RTV SiliconeTA-357
WSE-M4G323-A6
Motorcraft® Metal Brake Parts CleanerPM-4-A, PM-4-B
-
Removal
NOTICE:
During engine repair procedures, cleanliness is extremely
important...
