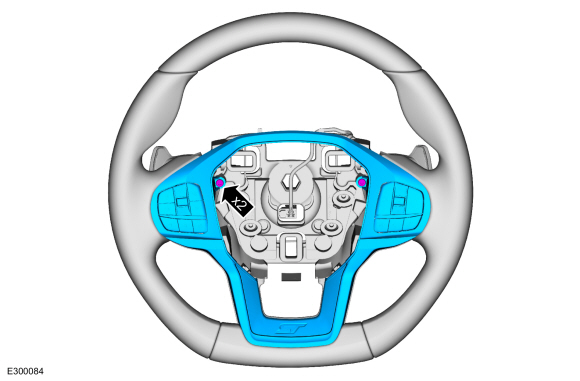

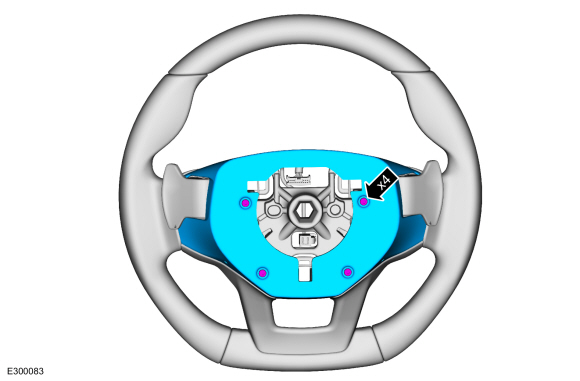

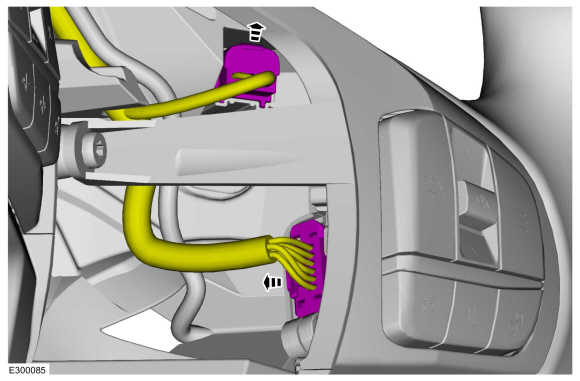

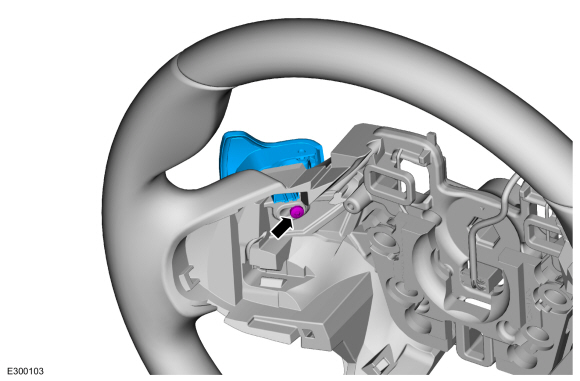

Lincoln Aviator: Automatic Transmission External Controls - 10-Speed Automatic Transmission – 10R60 / Removal and Installation - Downshift Paddle Switch

General Procedures - Transmission Park by Wire Manual Release

Activation NOTE: If the vehicle has a discharged battery, an external power source is required. Apply the parking brake. Remove the console mat...

Removal and Installation - Gear Shift Module (GSM)

Special Tool(s) / General Equipment Interior Trim Remover Removal NOTE: Removal steps in this procedure may contain installation details...

Other information:

Lincoln Aviator 2020-2026 Service Manual: Diagnosis and Testing - Body Control Module (BCM)

Diagnostic Trouble Code (DTC) Chart Diagnostics in this manual assume a certain skill level and knowledge of Ford-specific diagnostic practices. REFER to: Diagnostic Methods (100-00 General Information, Description and Operation).   Diagnostic Trouble Code Chart Module   DTC Description Action   BCM B11D9:16 Vehicle Battery:Circuit Voltage Below Threshold   GO to Pinpoint Test Y   BCM B11D9:17 Vehicle Battery:Circuit Voltage Above Threshold   GO to Pinpoint Test Z   BCM U0100:87 Lost Communication With ECM/PCM "A":Missing Message   GO to Pinpoint Test A   BCM U0121:87 Lost Communication With Anti-Lock Brake System (ABS) Control Module:Missing Message   GO to Pinpoint Test B   BCM U0131:87 Lost Communication With Power Steering Control Module:Missing Message   GO to Pinpoint Test C   BCM U0151:87 Lost Communication With Restraints Control Module:Missing Message   GO to Pinpoint Test D   BCM U0155:87 Lost Communication With Instrument Panel Cluster (IPC) Control Module:Missing Message   GO to Pinpoint Test E   BCM U0166:87 Lost Communication With Auxiliary Heater Control Module:Missing Message   GO to Pinpoint Test F   BCM U0184:87 Lost Communication With Radio:Missing Message   GO to Pinpoint Test G   BCM U0198:87 Lost Communication With Telematic Control Module: Missing Message   GO to Pinpoint Test H   BCM U0199:87 Lost Communication With "Door Control Module A":Missing Message   GO to Pinpoint Test I   BCM U019B:87 Lost Communication With Battery Charger Control Module:Missing Message   GO to Pinpoint Test J   BCM U0200:87 Lost Communication With "Door Control Module B":Missing Message   GO to Pinpoint Test K   BCM U0208:87 Lost Communication With "Seat Control Module A":Missing Message   GO to Pinpoint Test L   BCM U0212:87 Lost Communication With Steering Column Control Module:Missing Message   GO to Pinpoint Test M   BCM U0230:87 Lost Communication With Rear Gate Module:Missing Message   GO to Pinpoint Test N   BCM U0232:87 Lost Communication With Side Obstacle Detection Control Module "A":Missing Message   GO to Pinpoint Test O   BCM U0233:87 Lost Communication With Side Obstacle Detection Control Module "B":Missing Message   GO to Pinpoint Test P   BCM U023A:87 Lost Communication With Image Processing Control Module A:Missing Message   GO to Pinpoint Test Q   BCM U0252:87 Lost Communication With Lighting Control Module-Rear "B":Missing Message   GO to Pinpoint Test R   BCM U0253:87 Lost Communication With Accessory Protocol Interface Module:Missing Message   GO to Pinpoint Test S   BCM U0256:87 Lost Communication With Front Controls Interface Module "A":Missing Message   GO to Pinpoint Test T   BCM U0293:87 Lost Communication With Hybrid/EV Powertrain Control Module "A":Missing Message   GO to Pinpoint Test U   BCM U1000:00 Solid State Driver Protection Active:Driver Disabled: No Sub Type Information   GO to Pinpoint Test V   BCM U2005:85 Vehicle Speed:Signal Above Allowable Range   GO to Pinpoint Test W   BCM U2100:00 Initial Configuration Not Complete:No Sub Type Information   GO to Pinpoint Test X   BCM U2101:00 Control Module Configuration Inomplete:No Sub Type Information   GO to Pinpoint Test X   BCM U2200:00 Control Module Configuration Memory Corrupt:No Sub Type Information   GO to Pinpoint Test X   BCM U3000:49 Control Module:Internal Electronic Failure   GO to Pinpoint Test AA   BCM U3006:16 Control Module Input Power “A”:Circuit Voltage Below Threshold   GO to Pinpoint Test Y   BCM U3006:17 Control Module Input Power “A”:Circuit Voltage Above Threshold   GO to Pinpoint Test Z   BCM U3006:1C Control Module Input Power “A”:Circuit Voltage Out of Range   GO to Pinpoint Test Y   BCM U3006:1C Control Module Input Power “A”:Circuit Voltage Out of Range   GO to Pinpoint Test Z   BCM U3007:16 Control Module Input Power "B":Circuit Voltage Below Threshold   GO to Pinpoint Test Y   BCM U3007:17 Control Module Input Power "B":Circuit Voltage Above Threshold   GO to Pinpoint Test Z   BCM U3013:16 Control Module Input Power "C":Circuit Voltage Below Threshold   GO to Pinpoint Test Y   BCM U3013:17 Control Module Input Power "C":Circuit Voltage Above Threshold   GO to Pinpoint Test Z   BCM U3014:16 Control Module Input Power "D":Circuit Voltage Below Threshold   GO to Pinpoint Test Y   BCM U3014:17 Control Module Input Power "D":Circuit Voltage Above Threshold   GO to Pinpoint Test Z Symptom Chart Symptom Chart: Multifunction Electronic Modules Diagnostics in this manual assume a certain skill level and knowledge of Ford-specific diagnostic practices...

Lincoln Aviator 2020-2026 Service Manual: Removal and Installation - Rear Thermostatic Expansion Valve

Removal NOTICE: During the removal or installation of components, cap, tape or otherwise appropriately protect all openings and tubes/fittings to prevent the ingress of dirt or other contamination. Remove caps, tape and other protective materials prior to installation...
