Lincoln Aviator: Glass, Frames and Mechanisms / Removal and Installation - Front Door Glass Top Run
Removal
NOTE:
LH (left-hand) side shown, RH (right-hand) side similar.
NOTE:
Removal steps in this procedure may contain installation details.
-
Remove the front door window glass.
Refer to: Front Door Window Glass (501-11 Glass, Frames and Mechanisms, Removal and Installation).
-
Remove the front door outer belt moulding.
-
Release the pin-type retainer and position the front door weatherstrip aside.
-

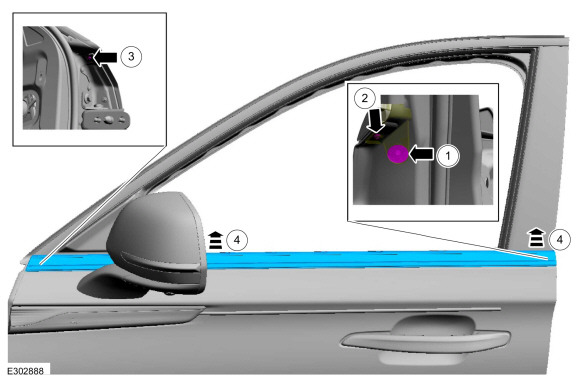

Remove the front door outer belt moulding screw.
Torque:
12 lb.in (1.3 Nm)
-
Remove the front door outer belt moulding screw.
Torque:
12 lb.in (1.3 Nm)
-
Remove the front door outer belt moulding.
-

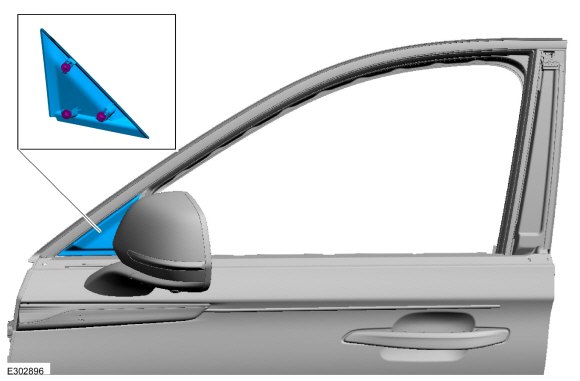

Remove the exterior front door sail panel.
-

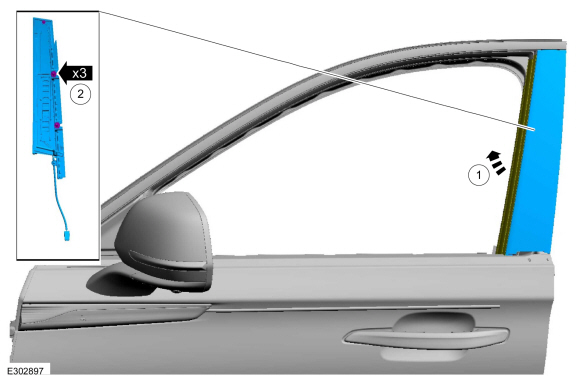

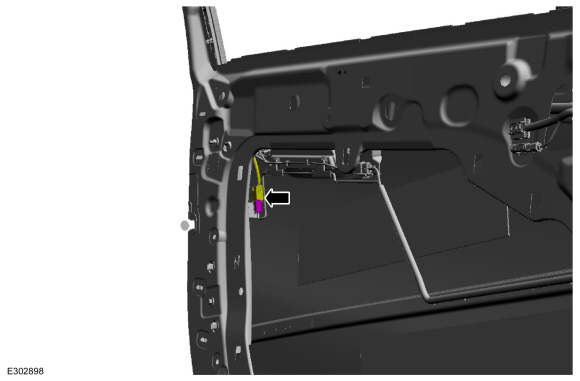

Disconnect the keyless entry keypad electrical connector.
-
Remove the keyless entry keypad.
-
Position the front door glass top run aside.
-
Release the clips and remove the keyless entry keypad.
-
Remove the front door glass top run.
-

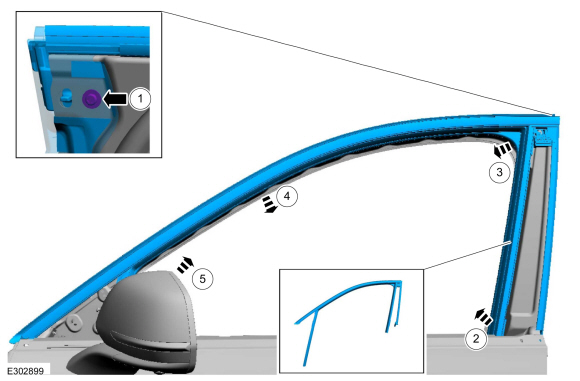

Remove the front door glass top run screw.
Torque:
12 lb.in (1.3 Nm)
-
Release the front door glass top run from the door run channel.
-
Release the front door glass top run from the door run channel.
-
Release the front door glass top run from the door run channel.
-
Remove the front door glass top run.
Installation
-
To install, reverse the removal procedure.
-
Carry out the power door window initialization.
Refer to: Power Door Window Initialization (501-11 Glass, Frames and Mechanisms, General Procedures).
