Lincoln Aviator 2020-2024 Service Manual / Body and Paint / Body and Paint / Body Closures / Removal and Installation - Liftgate Anti-Pinch Switch

Lincoln Aviator: Body Closures / Removal and Installation - Liftgate Anti-Pinch Switch

Removal

NOTE: Removal steps in this procedure may contain installation details.

NOTE: LH side shown, RH side similar.

  1. Remove the liftgate trim panel.
    Refer to: Liftgate Trim Panel (501-05 Interior Trim and Ornamentation, Removal and Installation).

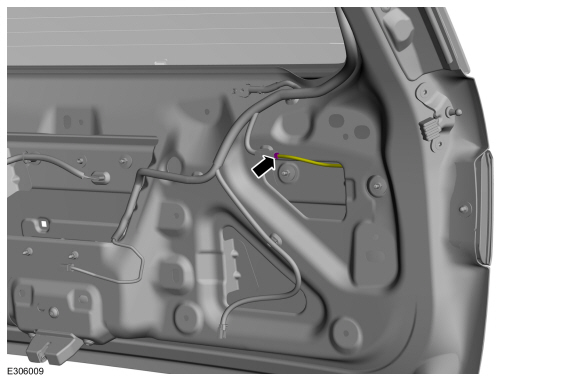

  1. Disconnect the liftgate anti-pinch switch electrical connector.

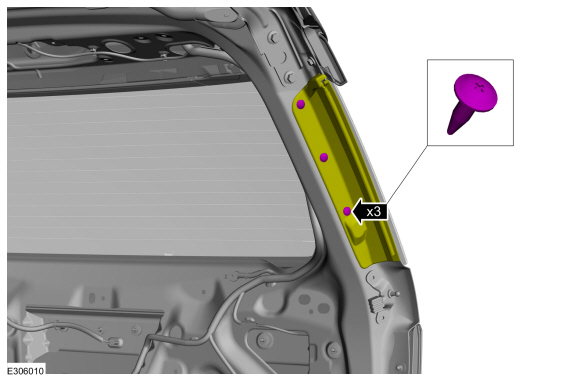

  1. Remove the retainers.
    1. Remove the rubber grommet and route the electrical connector through the liftgate.
    1. Remove the retainer and the liftgate anti-pinch switch.

Installation

  1. To install, reverse the removal procedure.
