Lincoln Aviator: Parking Brake and Actuation / Removal and Installation - Parking Brake Actuator Motor

Removal

NOTE: Removal steps in this procedure may contain installation details.

NOTE: LH side shown, RH similar.

With the vehicle in NEUTRAL, position it on a hoist.
Refer to: Jacking and Lifting (100-02 Jacking and Lifting, Description and Operation).

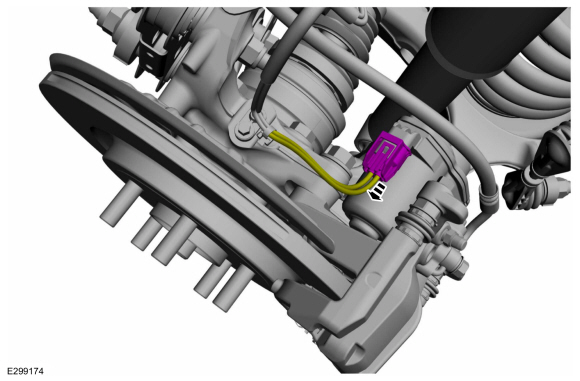

Disconnect the parking brake actuator motor electrical connector.

NOTE: If there is evidence of brake fluid found in or around the parking brake actuator motor a new brake caliper and actuator motor assembly must be installed.

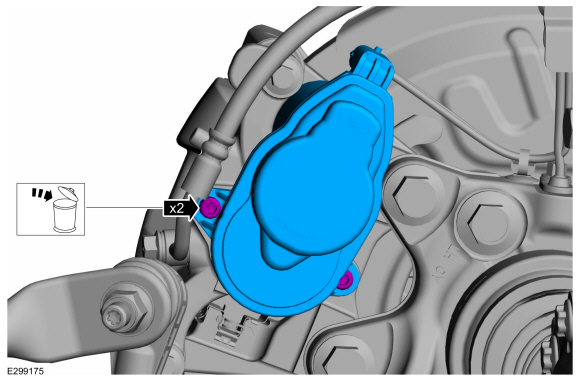

Remove the 2 bolts and the parking brake actuator motor. Discard the bolts.
Torque: 97 lb.in (11 Nm)

Remove and discard the O-ring.

Installation

To install, reverse the removal procedure.

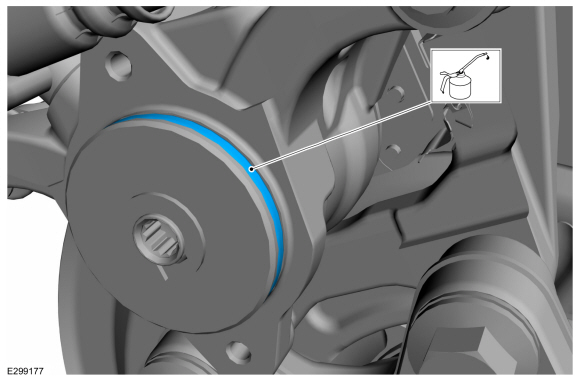

Install and lubricate the O-ring with specified material.
- Material: HU7J-19A506-CA
