Lincoln Aviator: Third Row Seats / Removal and Installation - Power Fold Seat Control Switch
Special Tool(s) /
General Equipment
Removal
-
-

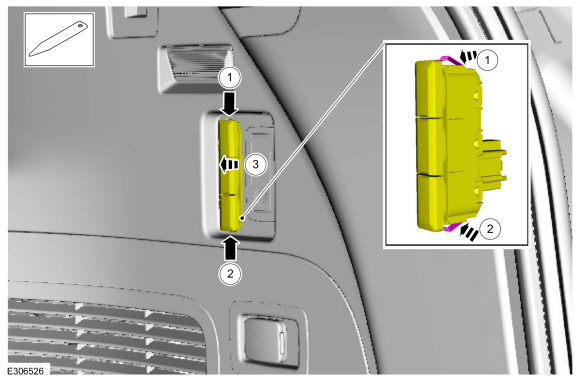

Depress the power fold seat control switch retaining clip.
Use the General Equipment: Interior Trim Remover
-
Depress the power fold seat control switch retaining clip.
Use the General Equipment: Interior Trim Remover
-
Position the power fold seat control switch out of the loadspace trim panel.
-

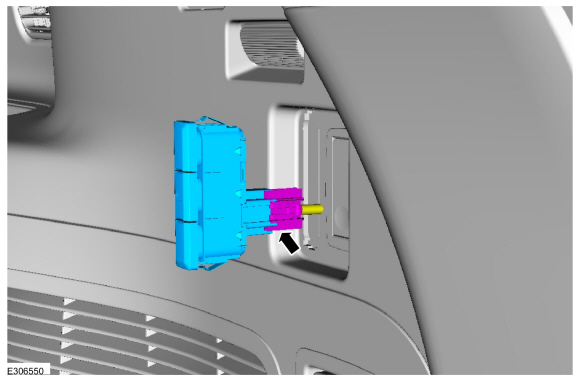

Disconnect the electrical connector and remove the power fold seat control switch.
Installation
-
To install, reverse the removal procedure.
