Lincoln Aviator: Exterior Lighting / Removal and Installation - Reversing Lamp
Removal
NOTE:
Removal steps in this procedure may contain installation details.
-
Remove the liftgate trim panel.
Refer to: Liftgate Trim Panel (501-05 Interior Trim and Ornamentation, Removal and Installation).
-

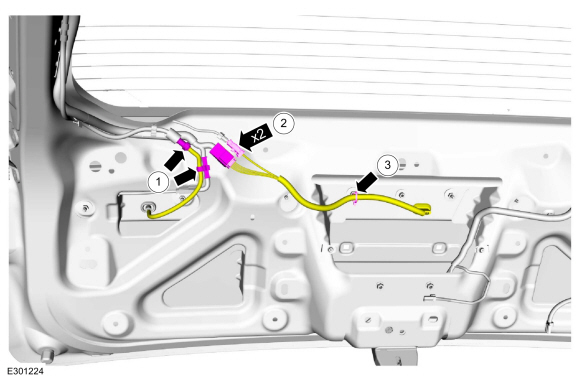

Disconnect the reversing lamp assembly camera washer fluid hose and connectors.
-
Disconnect the reversing lamp assembly rear camera washer fluid hose and detach the hose retainer.
-
Disconnect the reversing lamp assembly electrical connectors.
-
Detach the reversing lamp assembly wiring harness retainer.
-

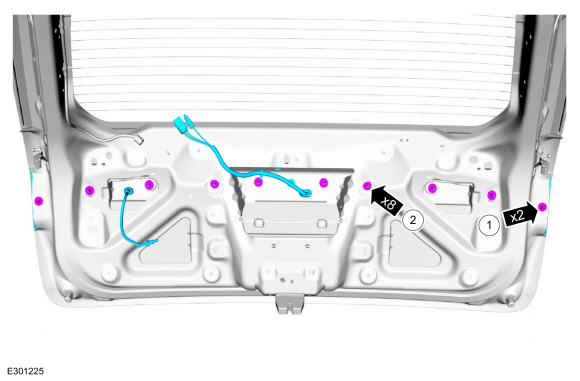

Remove the reversing lamp assembly.
-
Remove the reversing lamp cap nuts.
Torque:
19 lb.in (2.2 Nm)
-
Remove the reversing lamp nuts. Remove the reversing lamp.
Torque:
33 lb.in (3.7 Nm)
Installation
-
To install, reverse the removal procedure.
