Removal

NOTE: Removal steps in this procedure may contain installation details.

Fully lower the glove compartment.

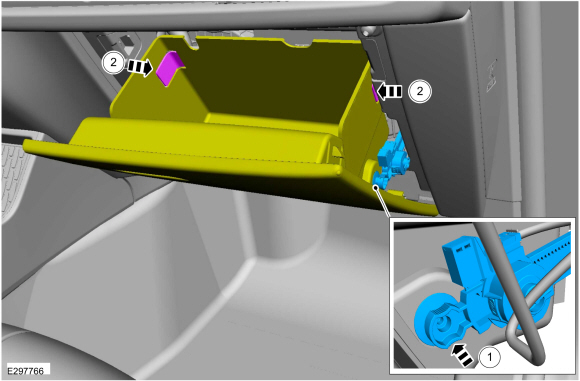

1. Disconnect the check strap.
1. Push the stop tabs inward.

Disconnect the passenger footwell air discharge temperature sensor.

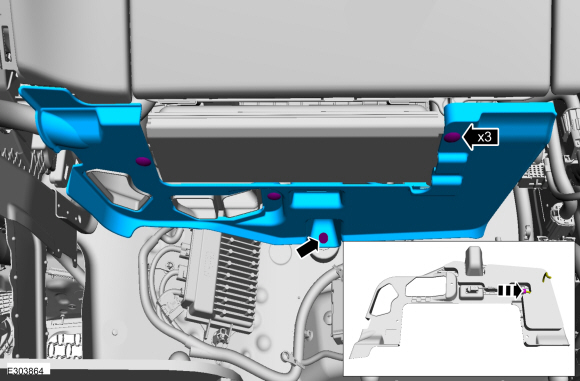

Remove the push pins, the nut and the RH insulation panel.

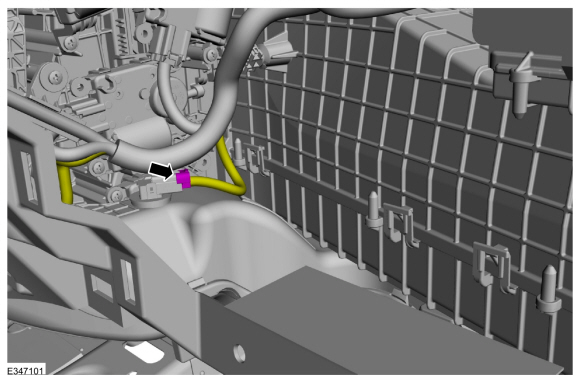

- Disconnect the electrical connector.

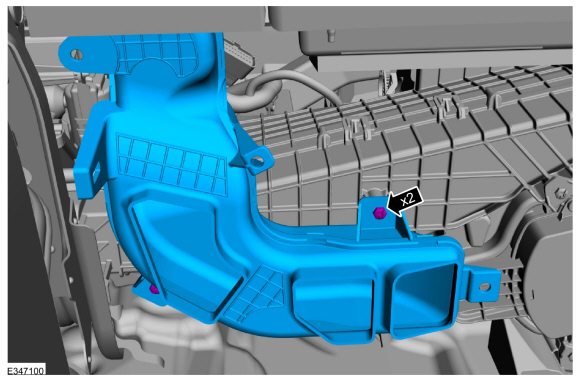

Remove the screws and the passenger side floor duct.

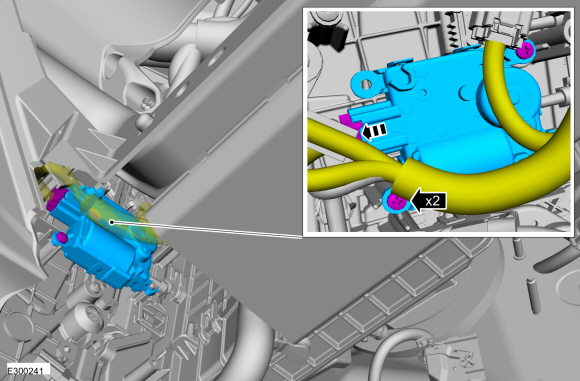

Remove the screws and the second row temperature door actuator.
- Disconnect the electrical connector.

Installation

To install, reverse the removal procedure.
