Lincoln Aviator 2020-2025 Service Manual / Electrical / Battery and Charging System / Battery, Mounting and Cables / Removal and Installation - Battery Cables - 3.0L EcoBoost

Lincoln Aviator: Battery, Mounting and Cables / Removal and Installation - Battery Cables - 3.0L EcoBoost

Removal

NOTE: This procedure provides information about routing, retaining points and connectors of the cable. It does not include the steps for removing components to gain access to the cable.

Disconnect the battery.
Refer to: Battery Disconnect and Connect (414-01 Battery, Mounting and Cables, General Procedures).

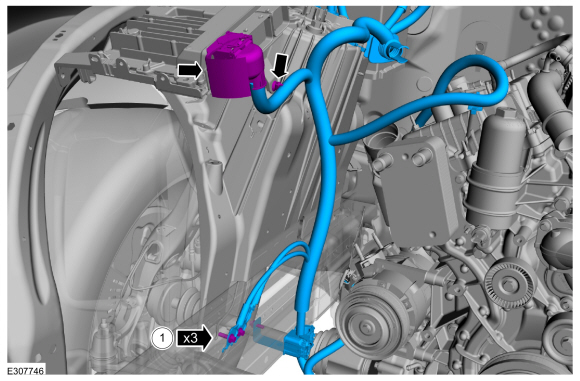

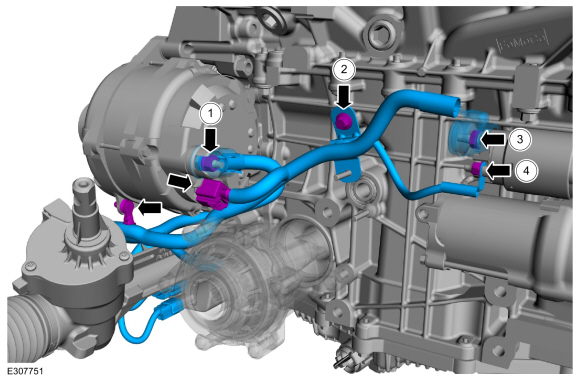

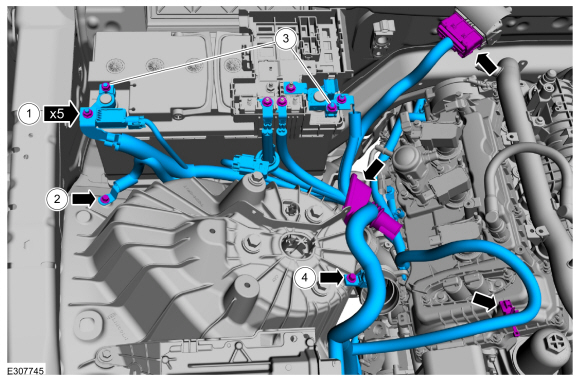

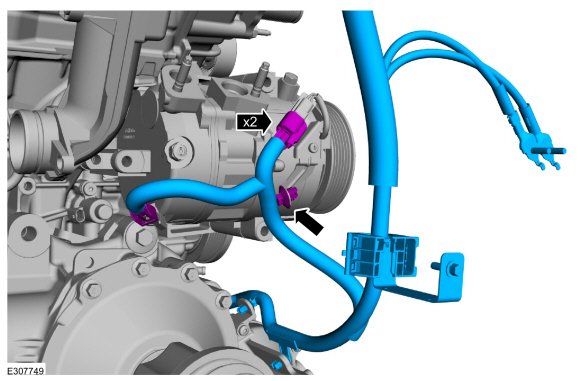

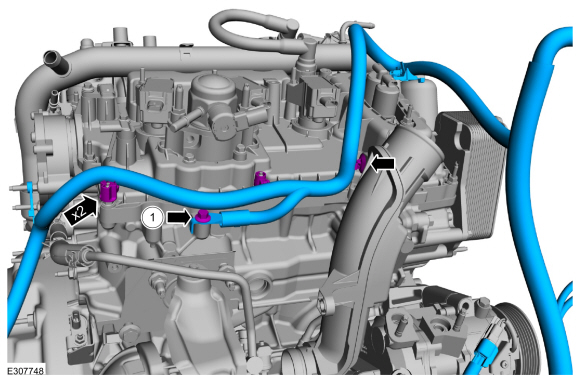

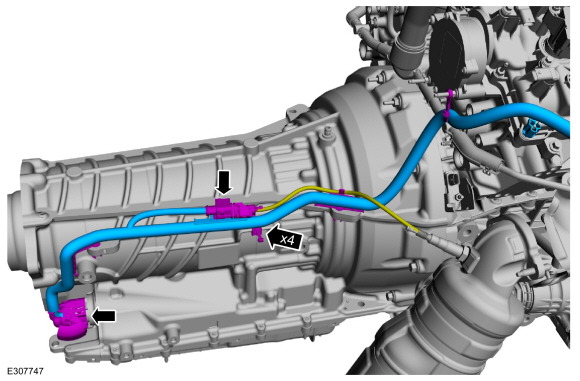

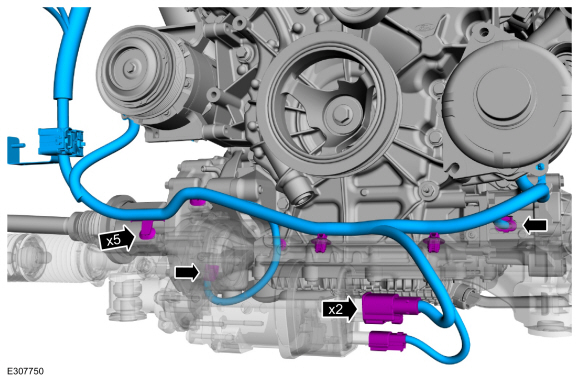

1. Torque: 80 lb.in (9 Nm)
1. Torque: 106 lb.in (12 Nm)
1. Torque: 48 lb.in (5.4 Nm)
1. Torque: 106 lb.in (12 Nm)

1. Torque: 71 lb.in (8 Nm)

1. Torque: 106 lb.in (12 Nm)

1. Torque: 155 lb.in (17.5 Nm)
1. Torque: 106 lb.in (12 Nm)
1. Torque: 106 lb.in (12 Nm)
1. Torque: 55 lb.in (6.2 Nm)

Installation

To install, reverse the removal procedure.
