Lincoln Aviator: Battery, Mounting and Cables / Removal and Installation - Battery Current Sensor

Removal

NOTE: Removal steps in this procedure may contain installation details.

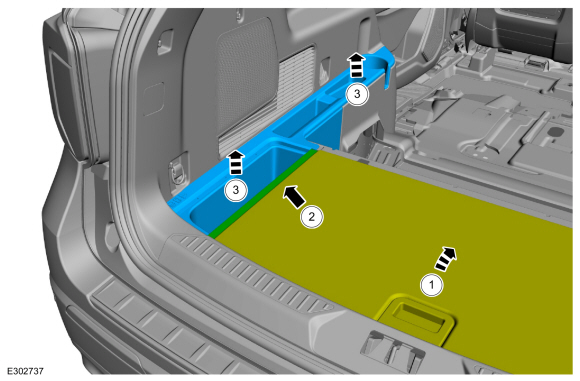

    1. Position the rear compartment storage cover upward.
    1. Remove the rear compartment filler trim panel.
    1. Remove the rear compartment storage/cupholder assembly.

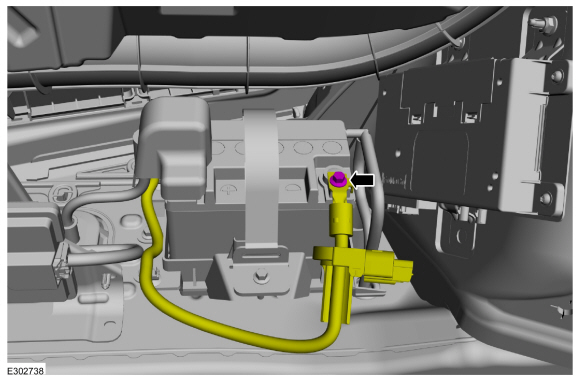

  1. NOTICE: Make sure the positive battery terminal cover is in position while removing the negative battery cable clamp to prevent damage from a short to the positive terminal.

    Remove the bolt and position the negative battery cable aside.
    Torque: 62 lb.in (7 Nm)

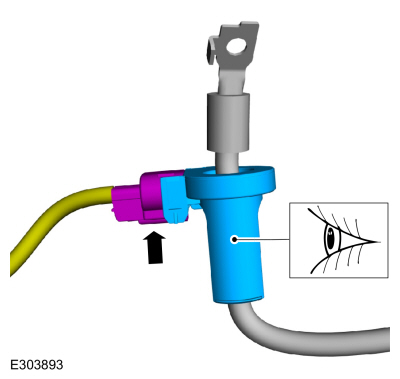

  1. NOTE: The battery current sensor must be installed in the proper position and orientation to function correctly. Note the orientation and position of the battery current sensor tab.

    Disconnect the battery current sensor electrical connector. Index-mark the battery cable at the battery current sensor. Remove and discard the tape securing the battery current sensor to the battery cable and remove the battery current sensor.

Installation

  1. To install, reverse the removal procedure.

    Removal and Installation - Battery Cables - 3.0L EcoBoost

    Removal NOTE: This procedure provides information about routing, retaining points and connectors of the cable. It does not include the steps for removing components to gain access to the cable...

    Removal and Installation - Battery Monitoring Sensor

    Removal NOTE: When the battery is disconnected and connected, some abnormal drive symptoms may occur while the vehicle relearns its adaptive strategy...
