Lincoln Aviator: Exterior Lighting / Removal and Installation - Headlamp Switch
Removal
NOTE:
Removal steps in this procedure may contain installation details.
-

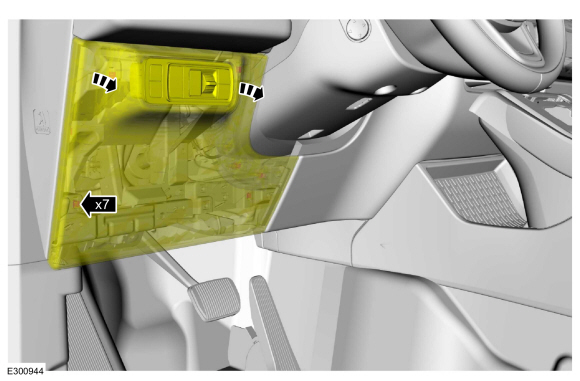

Detach the clips and lower the LH lower steering column trim panel.
-

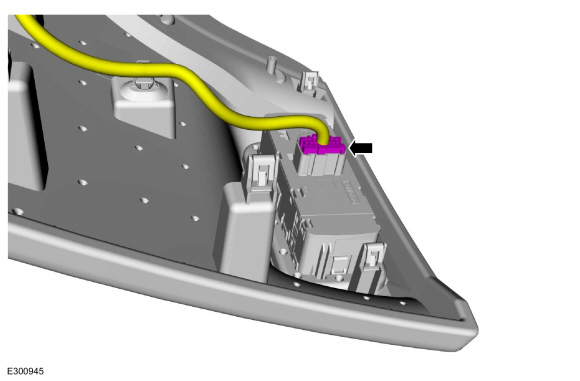

Disconnect the headlamp switch electrical connector.
-
Release the tabs and remove the headlamp switch.
Installation
-
To install, reverse the removal procedure.
