Lincoln Aviator 2020-2025 Service Manual / Electrical / Lighting / Exterior Lighting / Removal and Installation - High Mounted Stoplamp

Lincoln Aviator: Exterior Lighting / Removal and Installation - High Mounted Stoplamp

Removal

NOTE: Removal steps in this procedure may contain installation details.

  1. Remove the rear spoiler.
    Refer to: Rear Spoiler (501-08 Exterior Trim and Ornamentation, Removal and Installation).

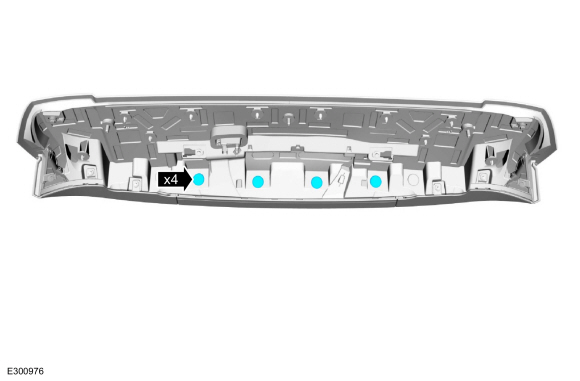

  1. Remove the high mounted stoplamp plugs shown.

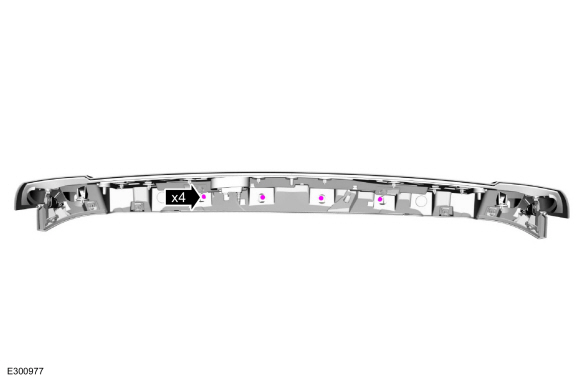

  1. Remove the high mounted stoplamp screws.

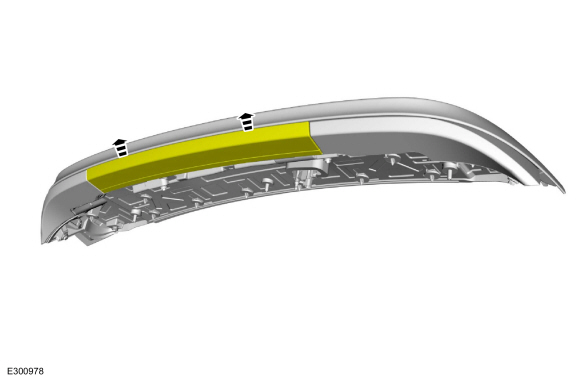

  1. Position out the high mounted stoplamp.

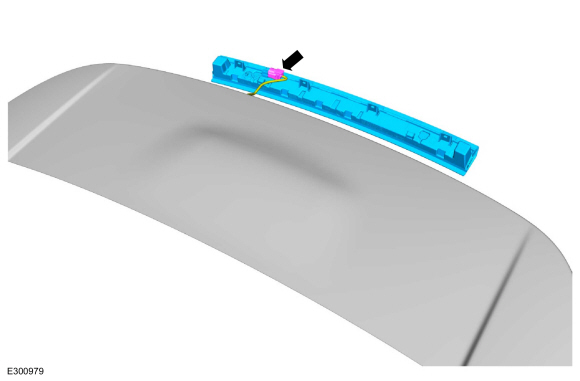

  1. Disconnect the electrical connector and remove the high mounted stoplamp.

Installation

  1. To install, reverse the removal procedure.
